2425500000 - Energy Analyzer 550: 144mm x 81mm, RoHS Compliant

Description:

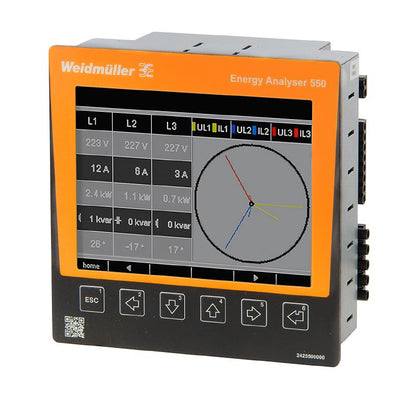

Introducing the ENERGY ANALYSER 550, a robust instrument that adheres to RoHS standards, complete with certificate number E469563 With compact dimensions of 144 mm in both height and width and a depth of 81 mm, it weighs a manageable 1,080 g This versatile device operates effectively across a wide temperature range, suitable for storage between -25 °C and 70 °C and functioning optimally from -10 °C to 55 °C.

It can handle humidity levels ranging from 5 to 95 % RH during storage and 5 to 75 % RH while in use The ENERGY ANALYSER 550 meticulously records measurement data, supports multiple protocols, and delivers valuable insights into energy usage, including assessments of harmonic distortion and voltage quality.

Features and Benefits:

•Compliant with RoHS without exemption.

•Supports up to 5000 A of current.

•Able to record and analyze harmonic distortion factors.

•Compatible with multiple communication interfaces including RS485 and Ethernet.

•Equipped with a user-friendly LCD for display monitoring.

•Includes built-in memory for data recording up to 10,000 values.

•Energy measurement and analysis in electrical systems.

•Real-time monitoring of voltage and current metrics.

Specifications:
