Description:

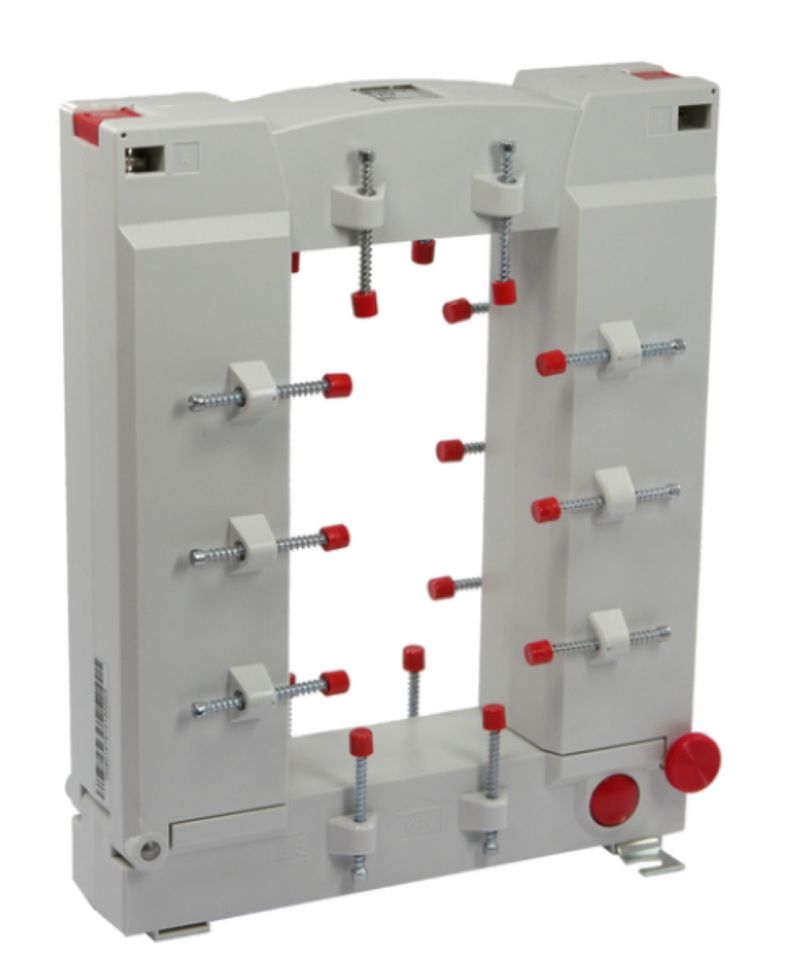

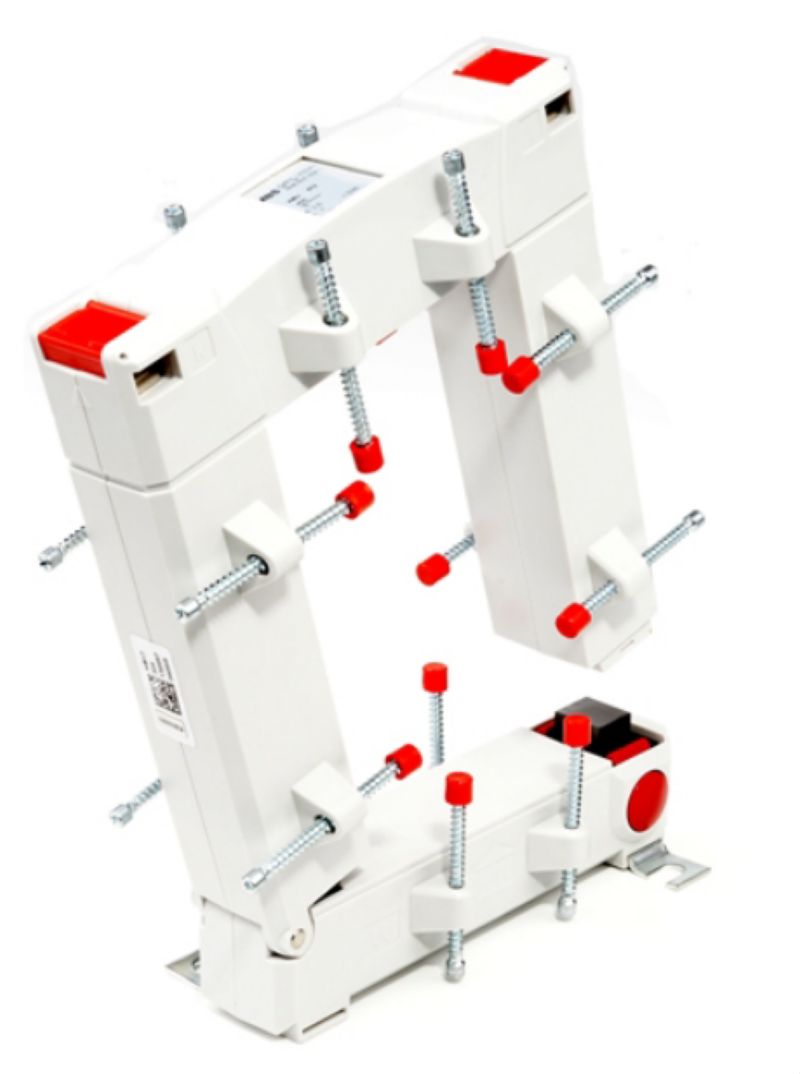

Introducing the Kansas City KCMA-8-2000-5A-15VA1 split-core current transformer, a reliable device designed to process a primary current of 2000 A and deliver a secondary current of up to 5 A, with a load capacity of 15 VA This transformer is built for indoor applications and meets Tolerance class 1 standards Compliant with RoHS regulations, it contains no Substances of Very High Concern (SVHC) exceeding 0.
1 wt% With compact dimensions of 79 mm in depth, 243 mm in height, and 195 mm in width, it weighs just 1500 g, making it a robust yet lightweight choice for your current sensing needs.
Features and Benefits:
•RoHS compliant without exemption.
•Designed for indoor use.
•Type of conductor is insulated only.
•Suitable for installation in rail widths of 80 x 120 mm.
Specifications:
| Primary current | 2000 A |
| Secondary current | 0...5 A |
| Load | 15 VA |
| Tolerance class | 1 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |

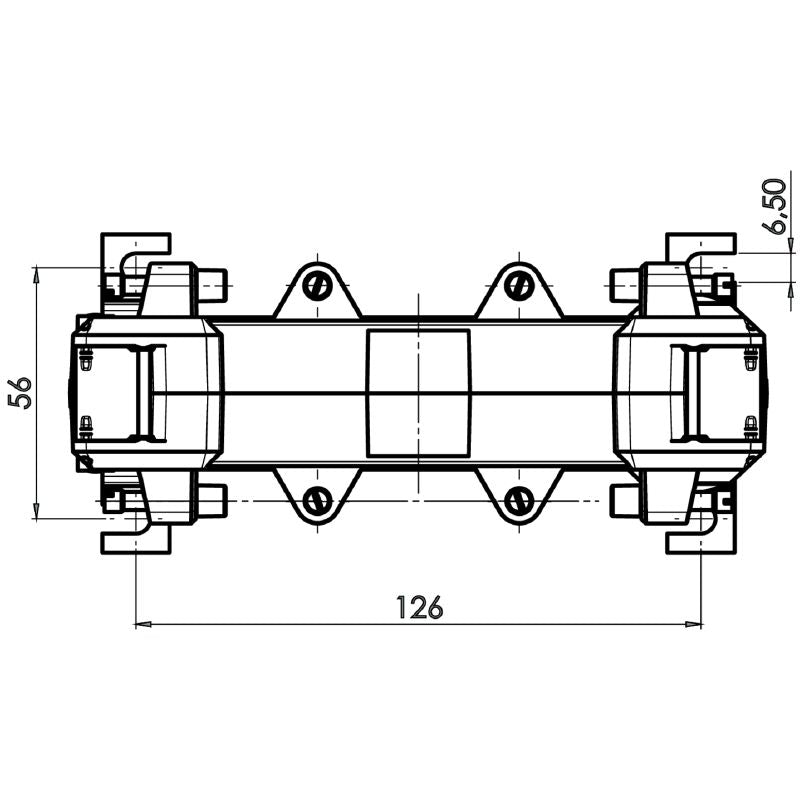

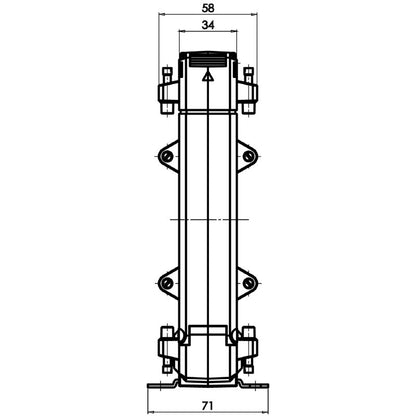

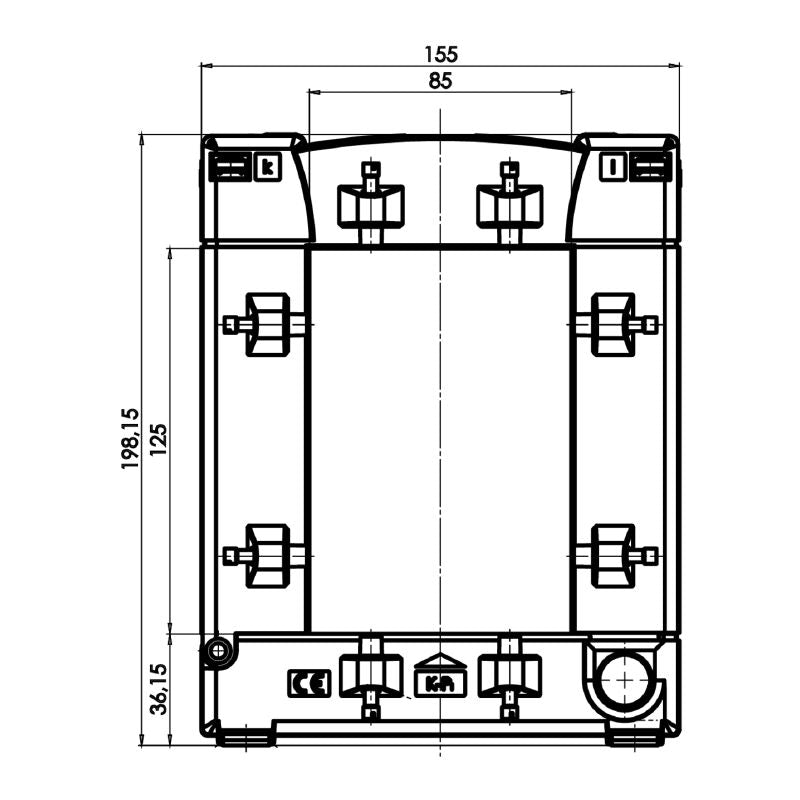

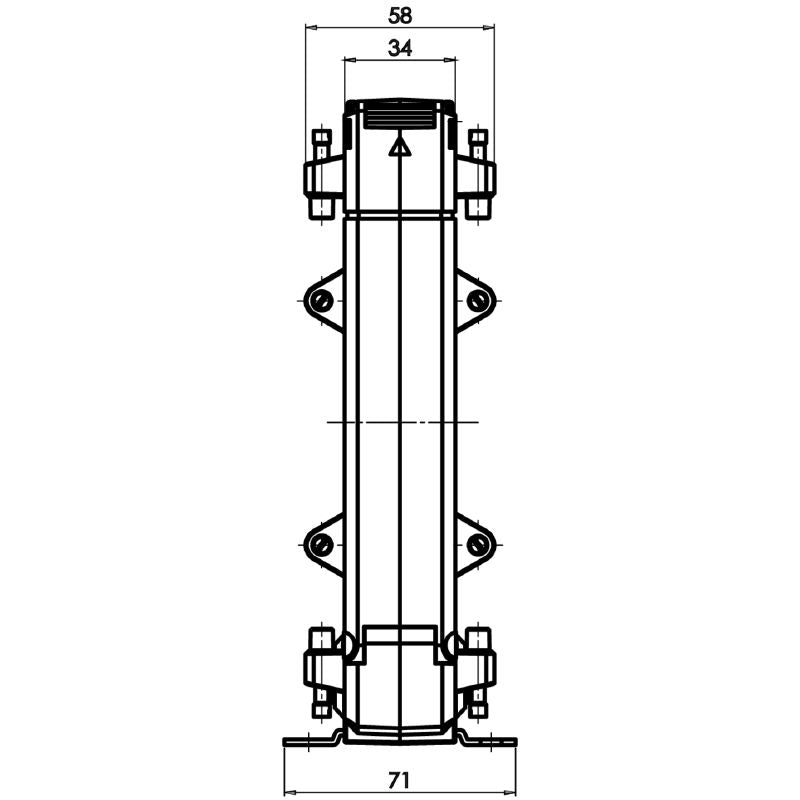

| Dimensions depth | 79 mm |
| Dimensions height | 243 mm |
| Dimensions width | 195 mm |
| Installation location | Indoor use |
