Description:

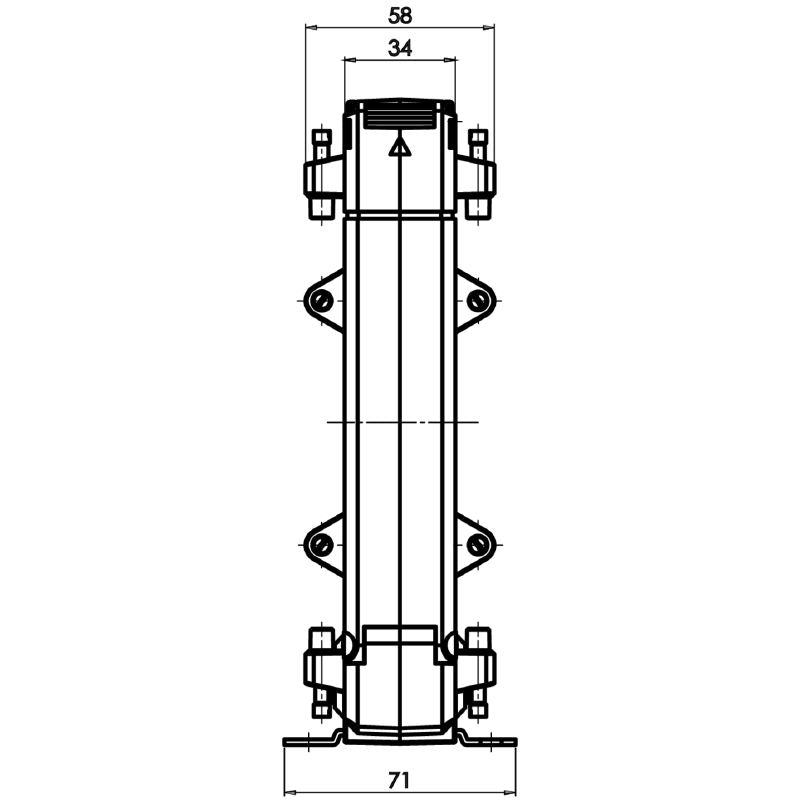

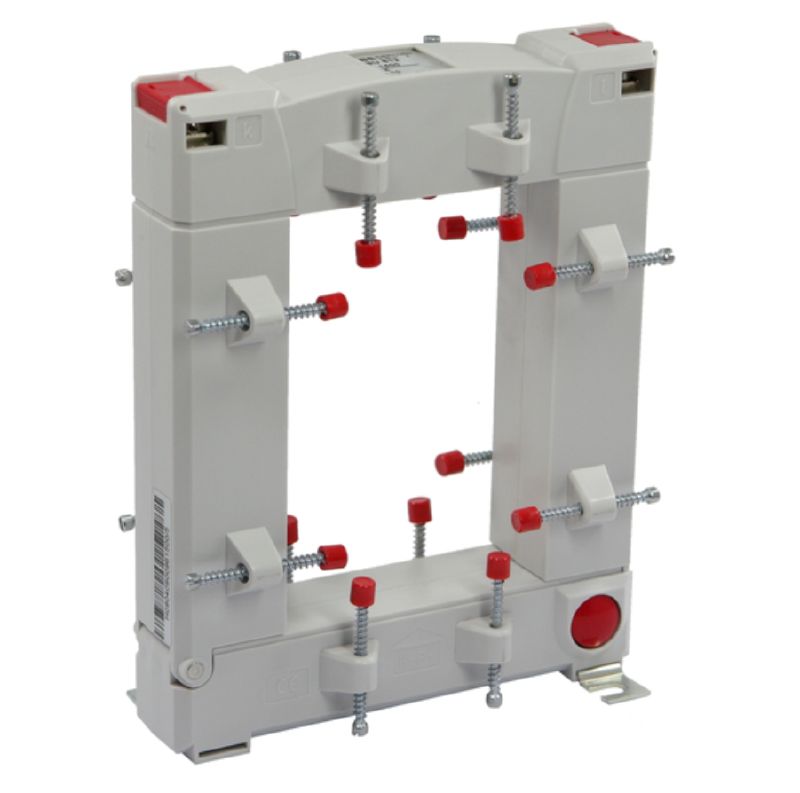

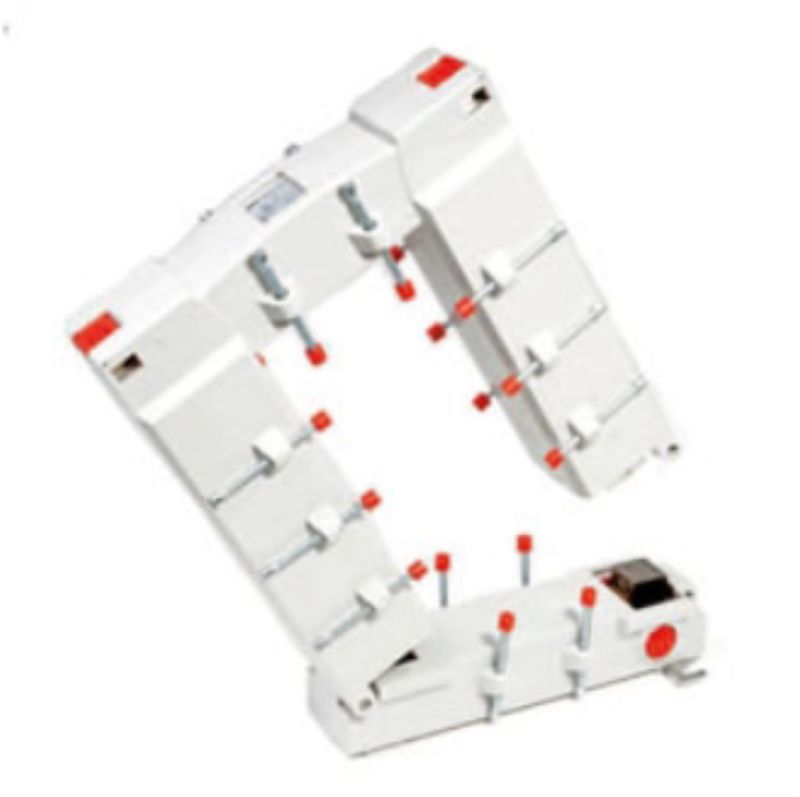

Introducing the KCMA-RCM-812D, a high-performance split-core residual current transformer engineered for precise current measurement This device is tailored for insulated conductors and supports a primary current rating of 18 A It features a conductor diameter of 80 mm, making it ideal for indoor applications Complying with RoHS standards, this transformer is free of hazardous substances Weighing in at 240 g, it measures 198 mm in depth, 58 mm in width, and 155 mm in length.
Designed for reliability, it operates continuously within a temperature range of -5 °C to 45 °C and accommodates a frequency range of 30 to 1000 Hz.
Features and Benefits:
•Measuring current input for residual current.
•Compliant with RoHS without exemptions.
•Protection degree IP20 suitable for indoor use.
•Insulation class E.
•Transmission ratio of 1:600.
•Indoor use for monitoring residual currents.
Specifications:
| Depth | 198 mm |
| Depth (inches) | 7.795 inch |
| Width | 58 mm |
| Width (inches) | 2.283 inch |
| Length | 155 mm |
| Length (inches) | 6.102 inch |
| Operating temperature | -5 °C...45 °C |
| Primary current | 18 A |
| Secondary current | 0...0.04 A |
| Frequency band | 30…1000 Hz |
| Primary conductor temperature | 70 °C |
| Tolerance class | 1 |
| Nominal frequency | 50 Hz |
| Thermal rated continuous current I thermal | 60 x I rated for 1 second |
| Insulation coordination | Standard EN 60044/1 |
| Rail | 80 x 120 mm |
| ETIM 6.0 | EC002048 |
| ETIM 7.0 | EC002048 |
| ETIM 8.0 | EC002048 |
| ETIM 9.0 | EC002048 |
| ETIM 10.0 | EC002048 |
| ECLASS 9.0 | 27-21-09-02 |
| ECLASS 9.1 | 27-21-09-02 |
| ECLASS 10.0 | 27-21-09-02 |
| ECLASS 11.0 | 27-21-09-02 |
| ECLASS 12.0 | 27-21-09-02 |
| ECLASS 13.0 | 27-21-09-02 |
| ECLASS 14.0 | 27-21-09-02 |
| ECLASS 15.0 | 27-21-09-02 |
