Description:
Introducing the KCMA-32-400-5A-5VA-1, a split-core current transformer built for dependable operation It's capable of handling primary currents up to 400 A, delivering a secondary output of 5 A, and is designed with a load capacity of 5 VA This device adheres to RoHS standards for safety and environmental compliance With measurements of 90 mm in depth, 964 mm in height, and 592 mm in width, it's specifically crafted for indoor applications.
Additionally, it operates effectively within a temperature range of -5 °C to 50 °C and can be stored safely between -25 °C to 70 °C.
Features and Benefits:
•Split-core design.
•Compliant with RoHS standards.
•Usable indoors.
•Wide operating temperature range.
•Conforms to IEC 61869 standards.
Specifications:
| Primary current | 400 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Cable length | 0.5 m |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |

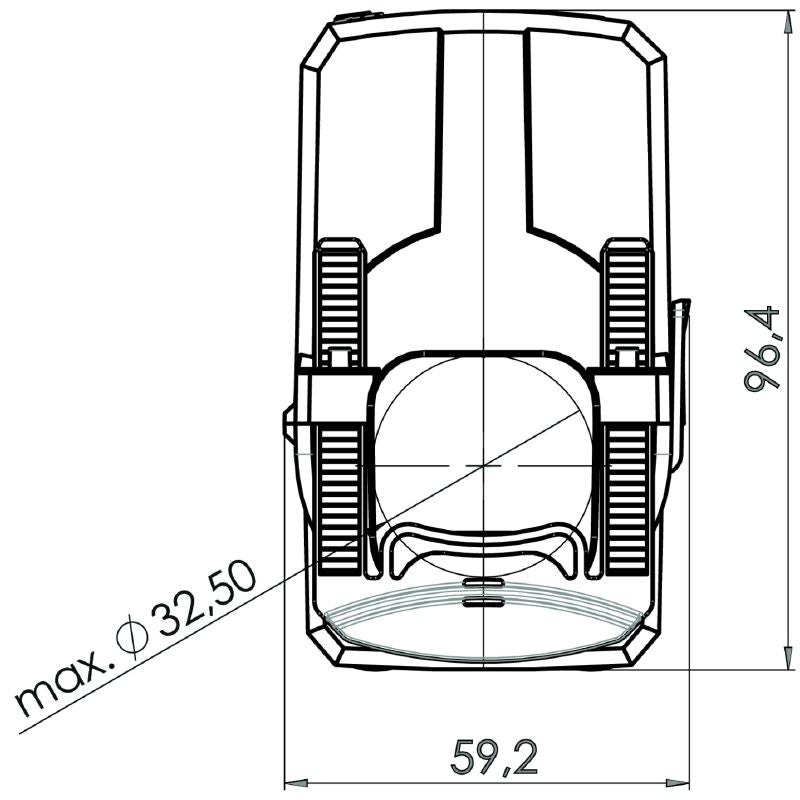

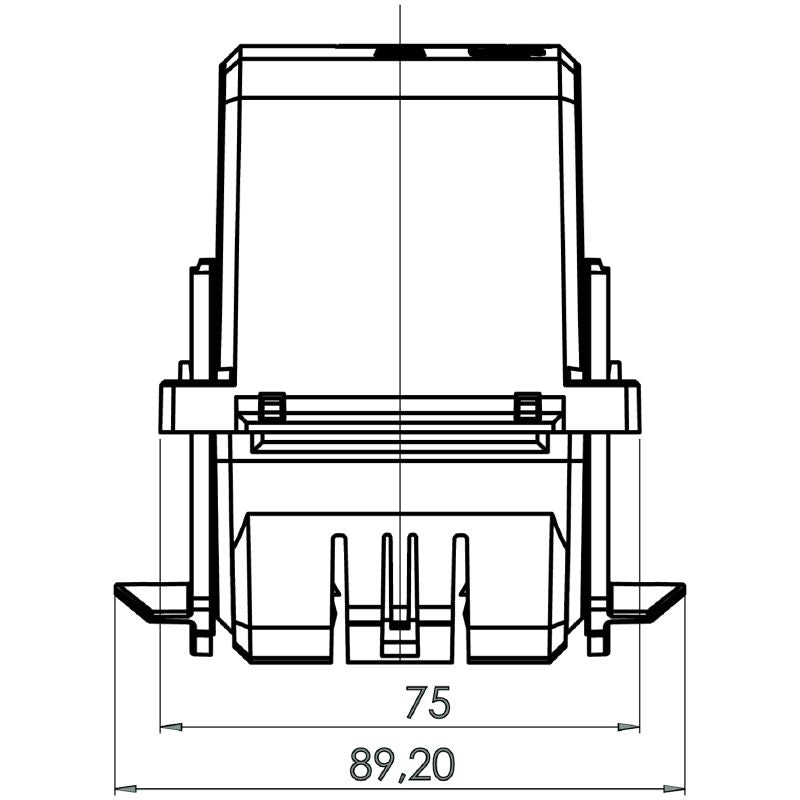

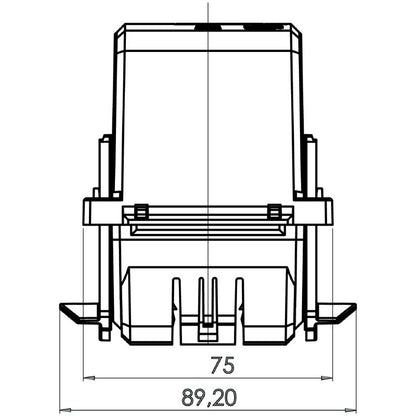

| Dimensions | {'Depth': '90 mm', 'Height': '96.4 mm', 'Width': '59.2 mm'} |
