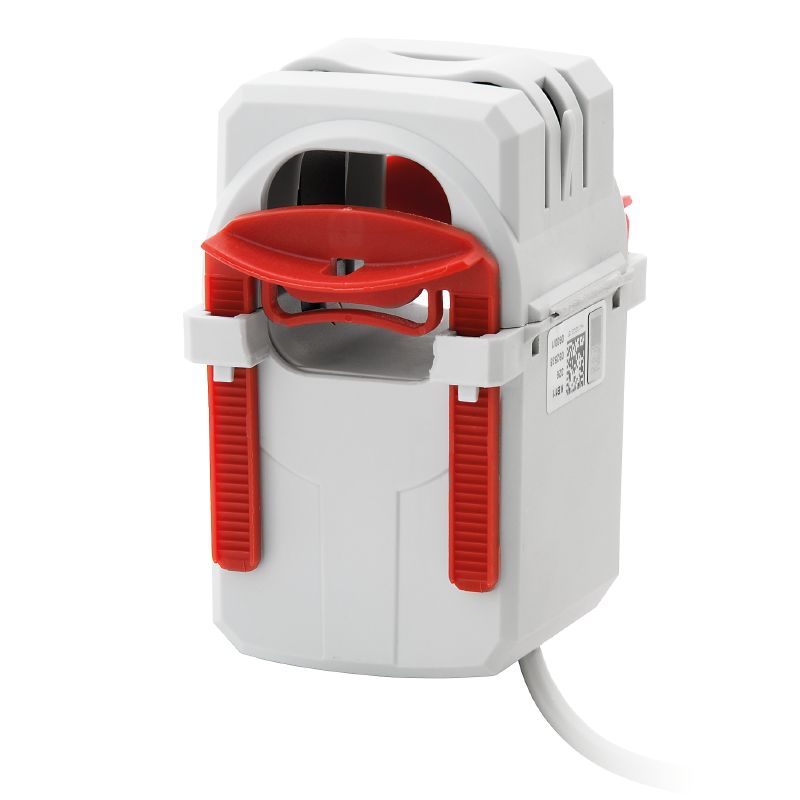

2511690000 - 50A Indoor Split-Core Current Transformer, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

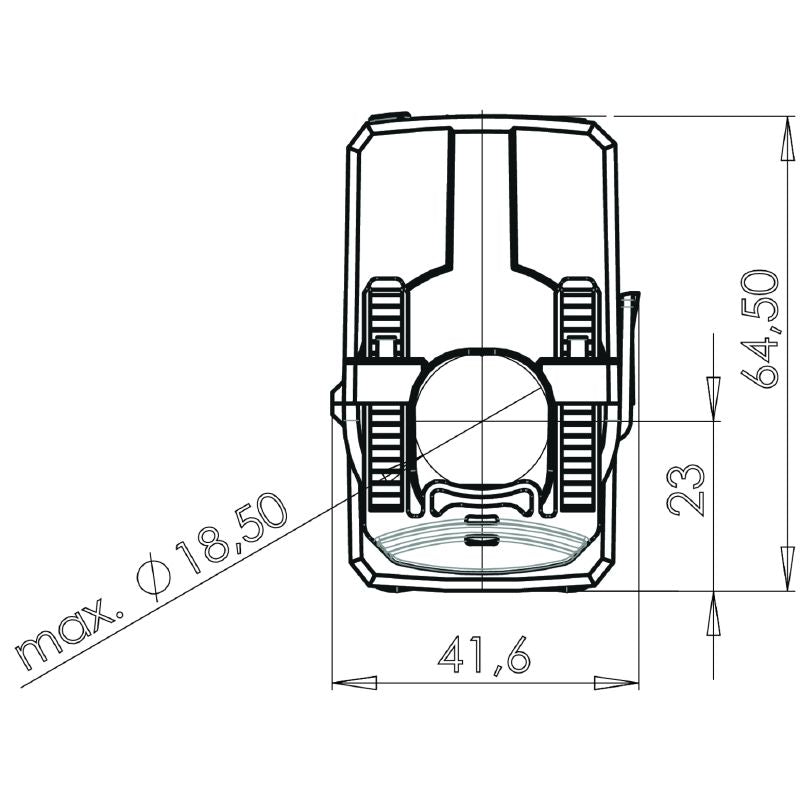

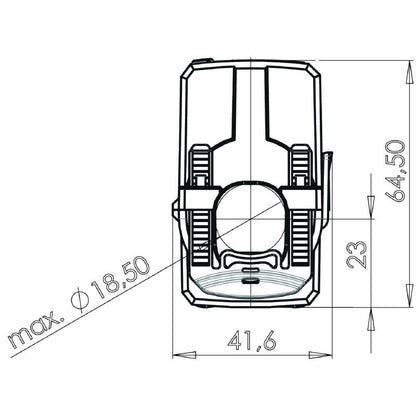

Introducing the KCMA-18-50-1A-1VA-3 HUT, a robust split-core current transformer designed specifically for indoor applications This reliable device accommodates a primary current of 50 A, with a maximum secondary output of 1 A, featuring a load capacity of 1 VA It boasts a tolerance class of 3 and complies fully with RoHS standards, affirming its eco-friendly credentials The transformer is equipped with a round conductor measuring 18.

5 mm and has an insulation rating of E It operates efficiently in a temperature range of -5 °C to 50 °C, with safe storage capabilities from -25 °C to 70 °C Perfect for various electrical applications, it combines performance with environmental responsibility.

Features and Benefits:

•RoHS compliant without exemption.

•Indoor installation suitable.

•Built with insulation class E.

Specifications:
