2420970000 - 600A Closed Current Transformer, Class 0.5, Indoor Use
2420970000 - 600A Closed Current Transformer, Class 0.5, Indoor Use
SKU: SKU: 2420970000 Download PDF
- 2420970000 - 600A Closed Current Transformer, Class 0.5, Indoor Use
- 2420970000 - 600A Closed Current Transformer, Class 0.5, Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the CMA-31-600-5A-5VA-05, a reliable closed current transformer designed for efficient performance Capable of handling a primary current of 600 A and a secondary current of up to 5 A, this transformer is equipped with a load capacity of 5 VA It conforms to tolerance class 05, ensuring precise measurements Built for indoor applications, it meets RoHS standards and boasts an insulation classification of E, providing added safety and compliance for your electrical needs.
Features and Benefits:
•Compliant with RoHS regulations.
•Designed for indoor installation.
•Closed current transformer function.

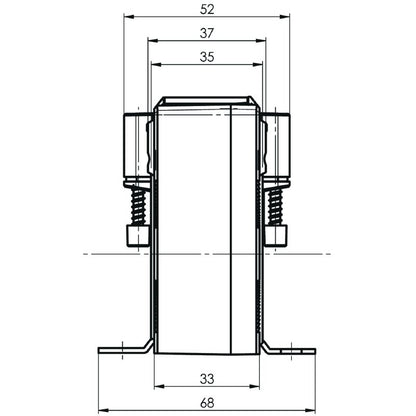

Specifications:
| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |
| Load | 5 VA |
| Primary current | 600 A |
| Secondary current | 0...5 A |
| Tolerance class | 0.5 |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Protection degree | IP20 |
| Nominal frequency | 50 Hz |
