Description:

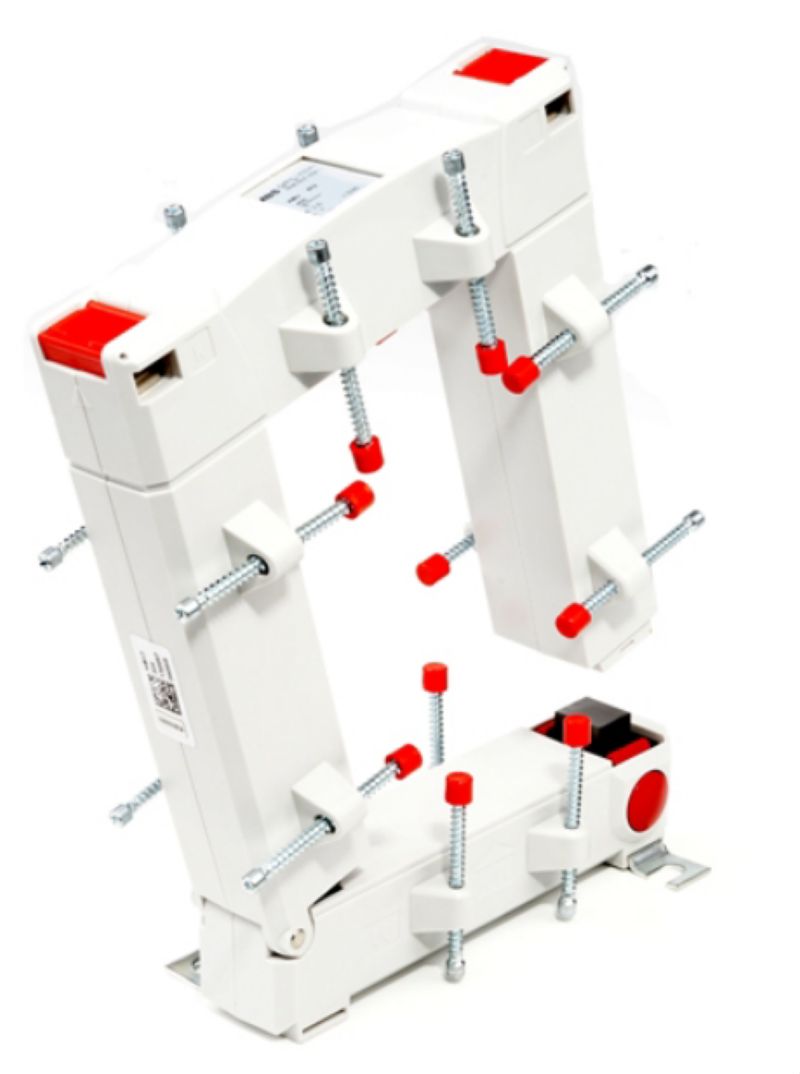

Introducing the KCMA-8-2500-5A-15VA1 split-core current transformer, expertly crafted for efficient monitoring of electrical currents This robust device can accommodate a primary current of up to 2500 A, with a maximum secondary current output of 5 A and a load capacity of 15 VA With a tolerance class of 1, it ensures precise readings every time The transformer measures 79 mm (311 inches) in depth, stands 243 mm (9.
567 inches) tall, and spans 195 mm (7677 inches) in width Weighing in at 1,500 g, it is a reliable choice for your current monitoring needs.
Features and Benefits:
•RoHS compliant without exemption.
•Suitable for indoor use.
•Insulated conductor type only.
Specifications:
| Primary current | 2500 A |
| Secondary current | 0...5 A |
| Load | 15 VA |
| Dimensions | {'Depth': '79 mm', 'Height': '243 mm', 'Width': '195 mm'} |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Tolerance class | 1 |
| Installation location | Indoor use |
| Insulation coordination | Standard EN 60044/1 |
