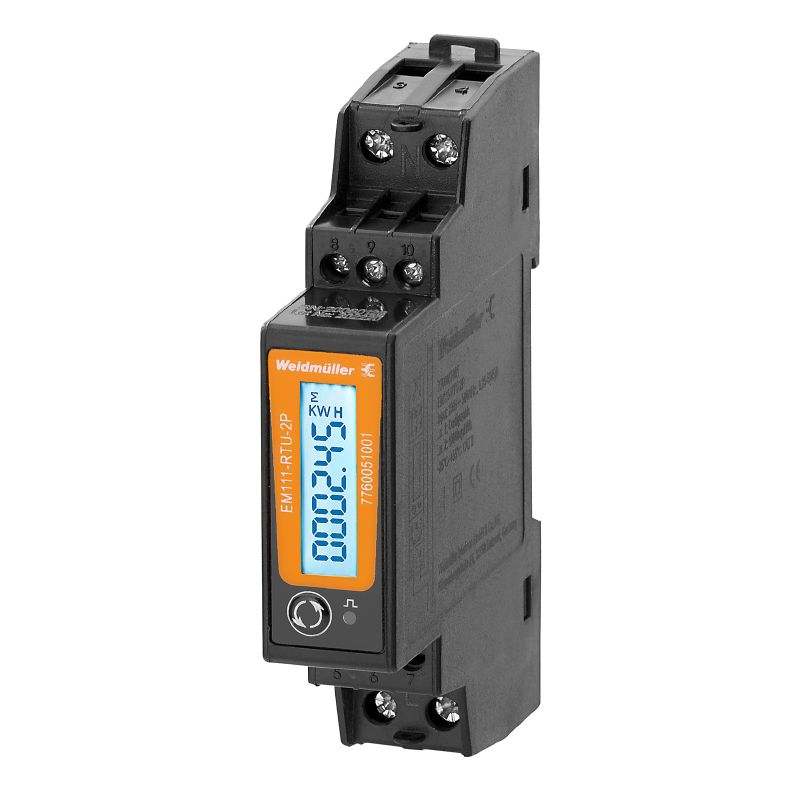

7760051001 - 45A LCD Power Meter for Single-Phase Mains with Modbus RTU
7760051001 - 45A LCD Power Meter for Single-Phase Mains with Modbus RTU
SKU: SKU: 7760051001 Download PDF
- 7760051001 - 45A LCD Power Meter for Single-Phase Mains with Modbus RTU
- 7760051001 - 45A LCD Power Meter for Single-Phase Mains with Modbus RTU
Couldn't load pickup availability
Description:
Efficiently measure and display power with this advanced device designed for single-phase mains, accommodating a maximum current of 45 A through direct measurement and pulse output It features robust Modbus RTU communication capabilities and comes with an easy-to-read LCD display Monitor crucial metrics including voltage, current, apparent and reactive power, power factor, frequency, and total energy consumption effortlessly.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Configurable digital output.
•Single-phase AC input connection via a removable 3-pin terminal block.
•Bi-directional communication capability.
•Update intervals as short as 100 ms for measurement data.
•Class 1 measurement accuracy.
Specifications:

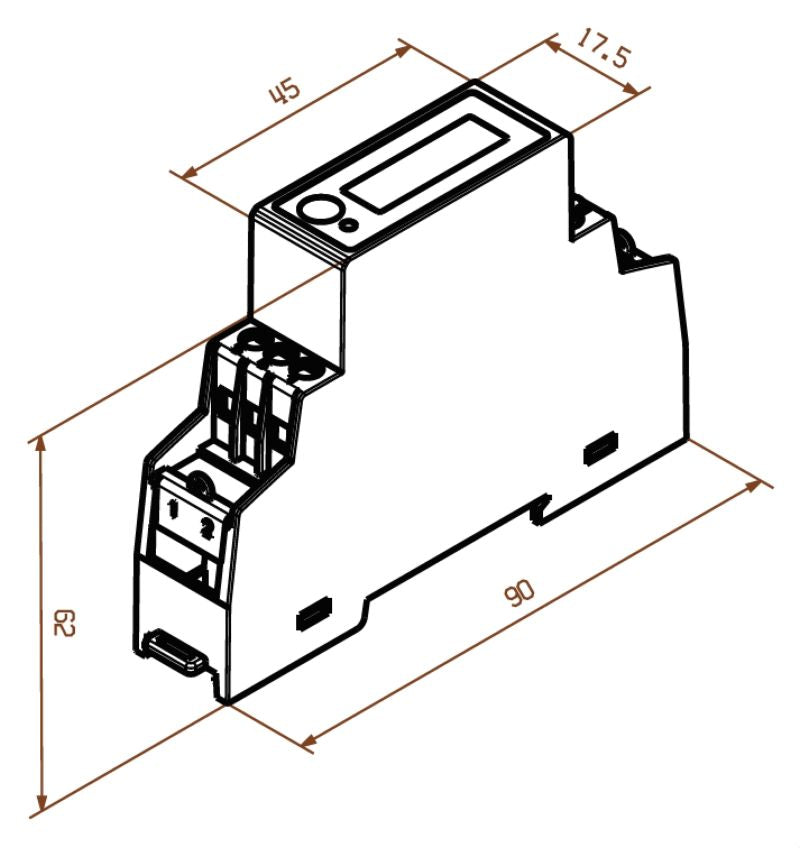

| Depth | 62 mm |
| Height | 90 mm |
| Width | 17.5 mm |
| Net weight | 90 g |
| Operating temperature | -25 °C...55 °C |
| Storage temperature | -40 °C...70 °C |
| Humidity | 0...90 % (no condensation) |
| Max current | 45 A |
| Measuring voltage input | 176…276 V |
| Rated current | 5 A |
| Current-measuring channels | 1 |

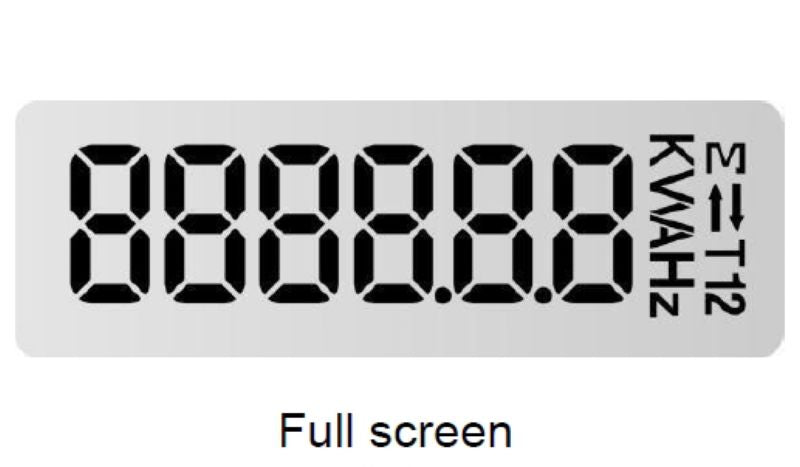

| Display | LCD |
| Protocol | Modbus RTU |
| Interface | RS485 |
| Power factor input | 1 % |
| Protection degree | IP51 (front panel), IP20 |
| Type of mounting | DIN rail |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Surge voltage category | II |
| Insulation voltage input | 4 kV (eff / 1 min.) |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
