2753200000 - 750A Split-Core Current Transformer, Class 0.5, 2.5 VA
2753200000 - 750A Split-Core Current Transformer, Class 0.5, 2.5 VA
SKU: SKU: 2753200000 Download PDF
- 2753200000 - 750A Split-Core Current Transformer, Class 0.5, 2.5 VA
- 2753200000 - 750A Split-Core Current Transformer, Class 0.5, 2.5 VA
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable performance with this split-core current transformer, expertly designed for primary currents reaching 750 A and secondary currents of up to 1 A It efficiently manages a load capacity of 25 VA and is rated under tolerance class 05, ensuring accuracy in various applications Furthermore, this transformer meets RoHS compliance standards, making it a responsible choice for your electrical needs.
Features and Benefits:
•Compliant with RoHS without exemptions.
•No SVHC present above 0.1 wt%.
•Designed for indoor installation.
•Protection degree of IP20.
Specifications:

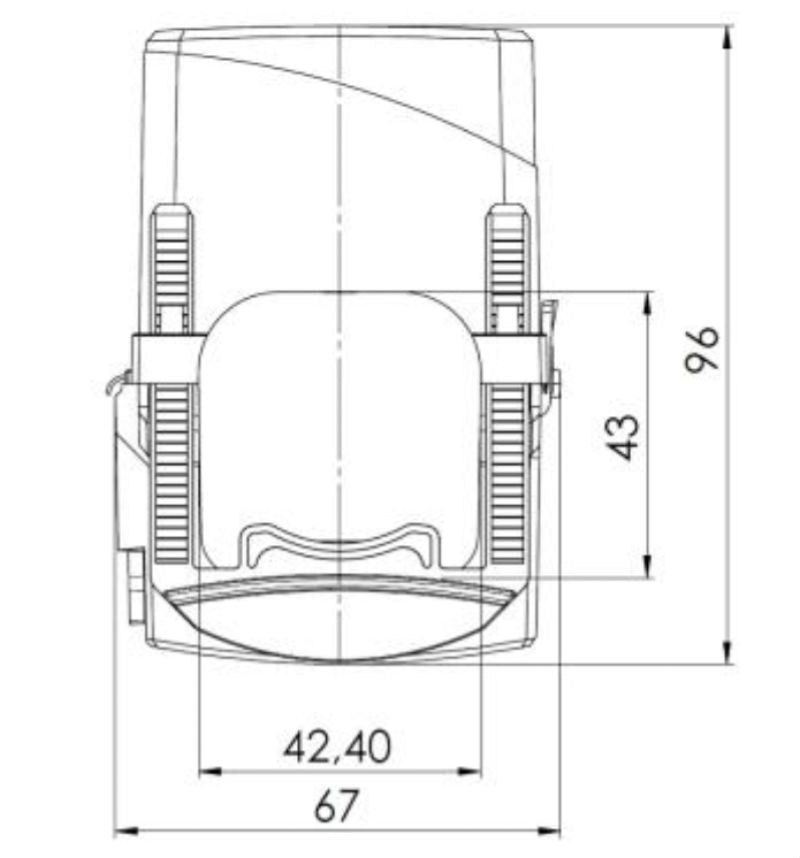

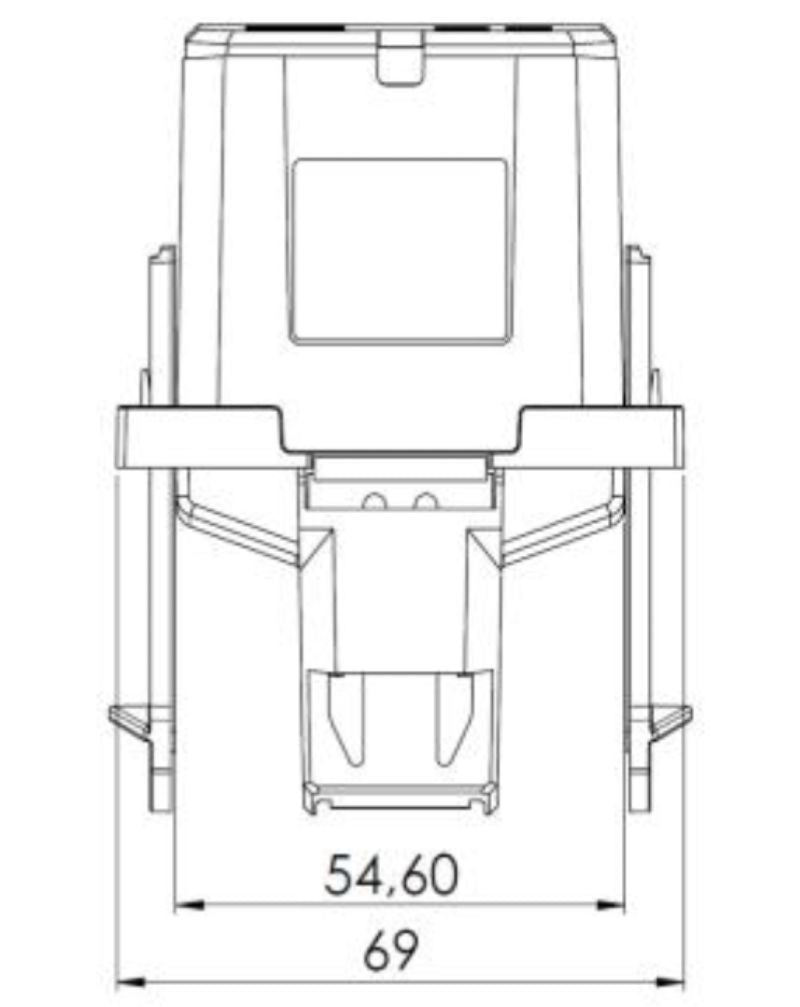

| Depth | 69 mm |
| Height | 96 mm |
| Width | 67 mm |
| Operating temperature | -5 °C to 50 °C |
| Cable length | 0.5 m |
| Primary current | 750 A |
| Secondary current | 0 to 1 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |
| Manufacturer | MBS AG |
| Insulation coordination | Tolerance class 0.5 |
