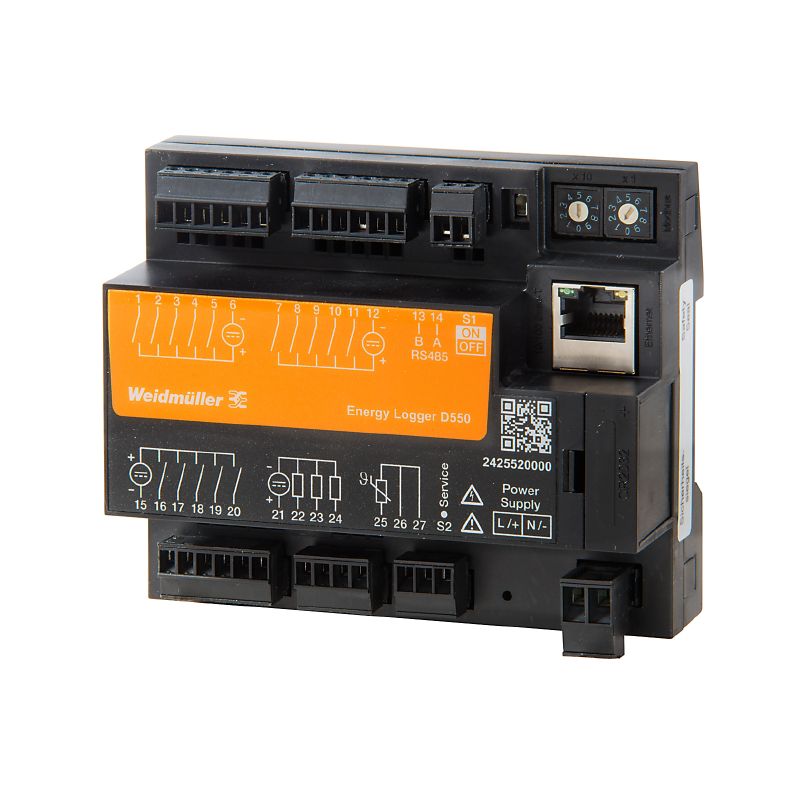

2425520000 - ENERGY LOGGER D550 with RS485, IP20, & -40°C to 55°C Range
2425520000 - ENERGY LOGGER D550 with RS485, IP20, & -40°C to 55°C Range
SKU: SKU: 2425520000 Download PDF
- 2425520000 - ENERGY LOGGER D550 with RS485, IP20, & -40°C to 55°C Range
- 2425520000 - ENERGY LOGGER D550 with RS485, IP20, & -40°C to 55°C Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Monitor your energy consumption effortlessly with the ENERGY LOGGER D550, a robust solution designed for effective energy management Compliant with RoHS regulations, this device is certified by cULus (E469563), ensuring reliable performance It operates efficiently in temperatures ranging from -40 °C to 55 °C, while the storage temperature can extend up to an impressive 70 °C With an IP20 protection rating, it is suitable for various environments and easily mounts on a DIN rail for convenience.
This energy logger supports multiple communication interfaces, including RS485 and Ethernet, and is compatible with protocols such as Modbus RTU and Modbus TCP/IP To enhance its functionality, it features 15 digital inputs and 3 digital outputs, making it an excellent choice for comprehensive data recording and monitoring tasks.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Memory capacity of 32 MB for storing minimum and maximum values.
•Operating temperature range of -40 °C to 55 °C.
•15 digital inputs and 3 digital outputs for versatile input/output options.
•Supports Modbus RTU and Modbus TCP/IP protocols for flexible communication.
Specifications:
| Depth | 46 mm |
| Height | 90 mm |
| Width | 107.5 mm |
| Net weight | 200 g |
| Storage temperature | -40 °C...70 °C |
| Humidity at operating temperature | 5…95 % RH |
| Interface | RS485: 9,6 – 115,2 kbps |
| Number of pulse outputs | 3 |
| Memory size | 32 MB |
| Protection degree | IP20 |
| Type of mounting | DIN rail |
| Supply voltage | 20 - 250 V AC, 20 - 300 V DC |
| Surge voltage category | 300 V CAT III |
| Standards | ['DIN EN 61326-1', 'DIN EN 61000-4-2', 'DIN EN 61000-4-3', 'DIN EN 61000-4-4', 'DIN EN 61000-4-5', 'DIN EN 61000-4-6', 'EN 61000-4-11', 'IEC 61010-1', 'IEC 61010-2-030', 'EN 55011'] |
