2753400000 - 1000 A Split-Core Current Transformer, 5 VA Load Capacity
2753400000 - 1000 A Split-Core Current Transformer, 5 VA Load Capacity
SKU: SKU: 2753400000 Download PDF
- 2753400000 - 1000 A Split-Core Current Transformer, 5 VA Load Capacity
- 2753400000 - 1000 A Split-Core Current Transformer, 5 VA Load Capacity
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the KCMA 5-1000-5A-5VA-05, an efficient split-core current transformer engineered for indoor applications This model boasts a primary current rating of 1000 A and delivers a maximum secondary current of 5 A, with a robust load capacity of 5 VA It adheres to RoHS standards, ensuring the absence of any SVHC above 01 weight percent, while its tolerance class of 05 guarantees precise measurement capabilities.
Perfect for your electrical needs, this transformer combines reliability and compliance seamlessly.
Features and Benefits:
•Compliant with RoHS standards.
•Suitable for insulated conductors only.
•Designed for indoor installation.
Specifications:
| Primary current: | 1000 A |
| Secondary current max.: | 5 A |
| Load: | 5 VA |
| Tolerance class: | 0,5 |

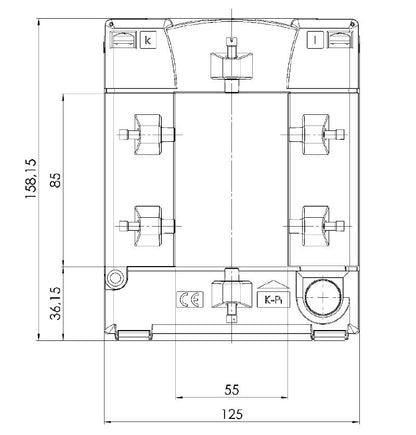

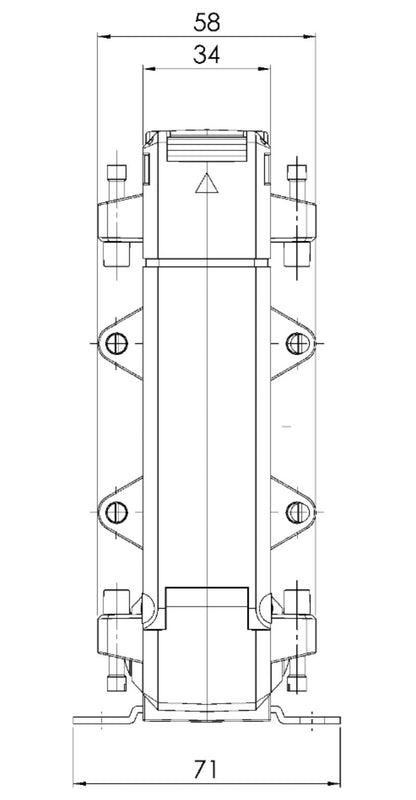

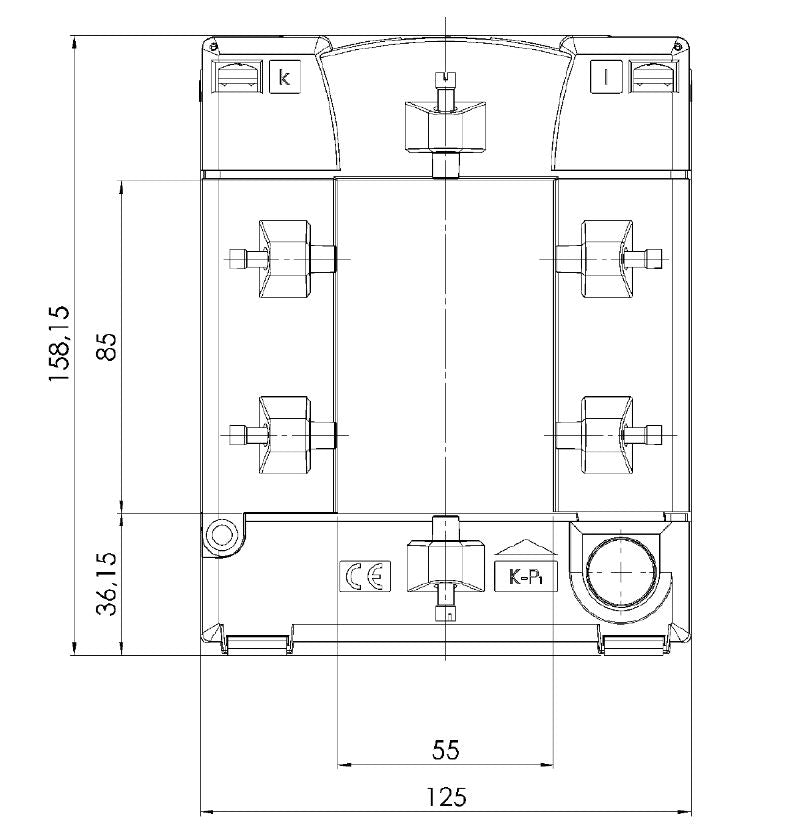

| Depth: | 58 mm (2.283 inch) |
| Height: | 158 mm (6.22 inch) |
| Width: | 125 mm (4.921 inch) |
| Operating temperature: | -5 °C to 40 °C |
| Cable length: | 0.5 m |
| Nominal frequency: | 50 Hz |
| Protection degree: | IP20 |
| Insulation coordination: | IEC 61869-2: 2012 |
