Description:

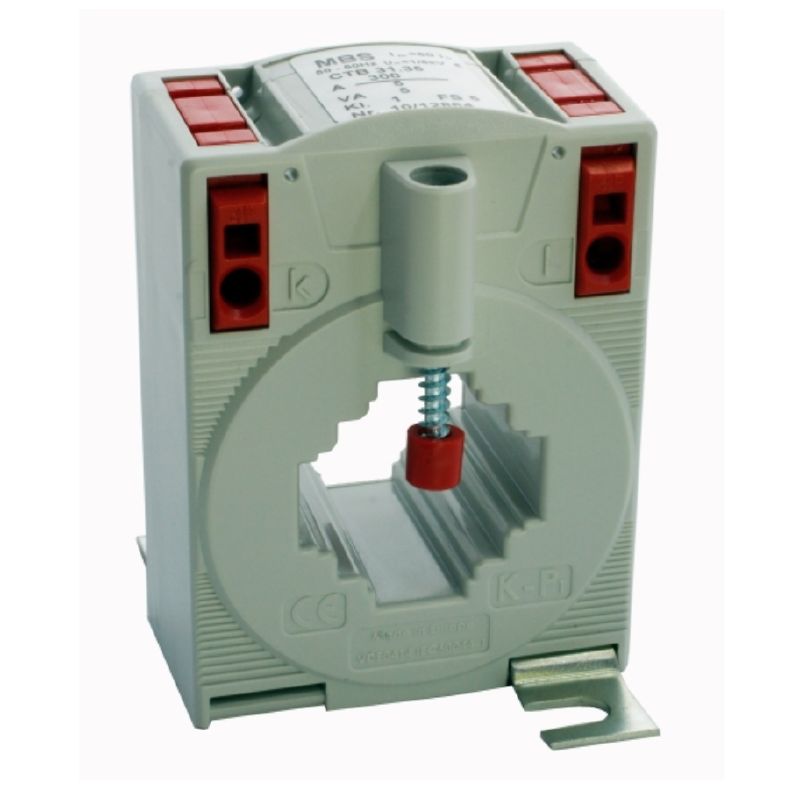

Discover the CMA-31-150-5A-5VA-1, a reliable closed current transformer designed for indoor applications This device can handle a primary current of 150 A, delivering a secondary current of up to 5 A with a load capacity of 5 VA Built to meet tolerance class 1 standards, it also complies with RoHS regulations, ensuring that it contains no hazardous materials beyond 01 wt% Engineered for durability, this transformer is suitable for specific conductor types and can be easily installed on rails of varying dimensions.
Features and Benefits:
•Suitable for indoor use.
•RoHS compliant.
•Closed current transformer.
Specifications:

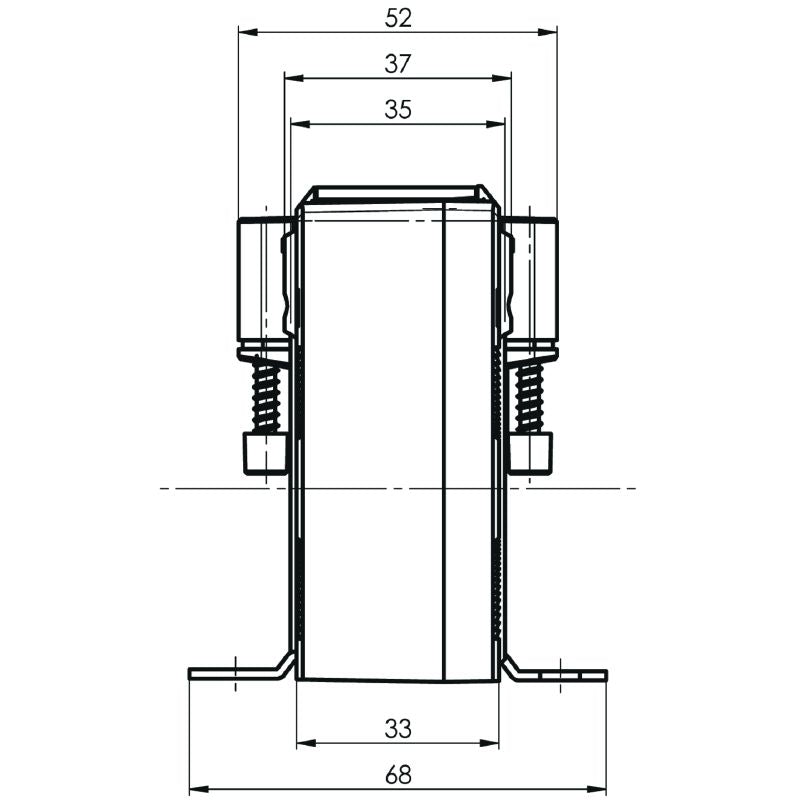

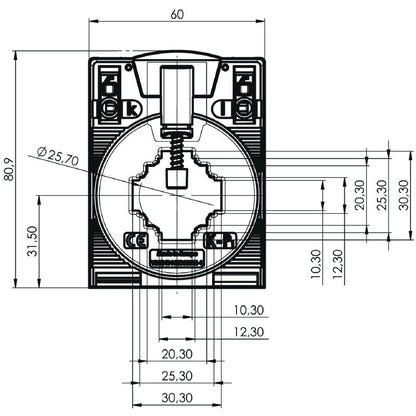

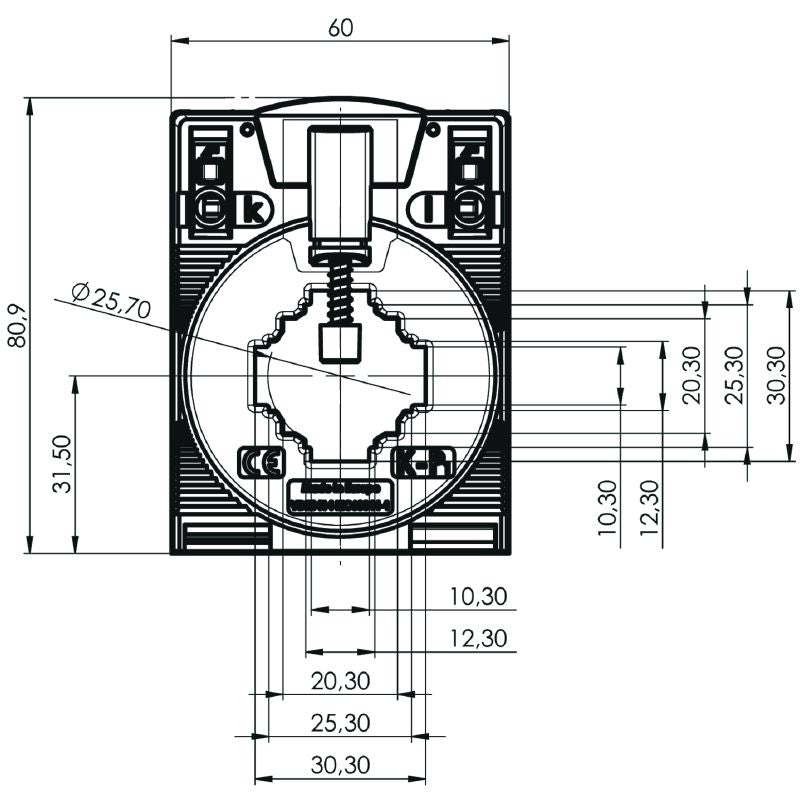

| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| Primary current | 150 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| ETIM 6.0 | EC002048 |
| ETIM 7.0 | EC002048 |
| ETIM 8.0 | EC002048 |
| ETIM 9.0 | EC002048 |
| ETIM 10.0 | EC002048 |
| ECLASS 9.0 | 27-21-09-02 |
| ECLASS 9.1 | 27-21-09-02 |
| ECLASS 10.0 | 27-21-09-02 |
| ECLASS 11.0 | 27-21-09-02 |
| ECLASS 12.0 | 27-21-09-02 |
| ECLASS 13.0 | 27-21-09-02 |
| ECLASS 14.0 | 27-21-09-02 |
| ECLASS 15.0 | 27-21-09-02 |
