Description:
Discover the KCMA-18-75-1A-1VA-3 split-core current transformer, engineered for precision It boasts a primary current rating of 75 A and supports a maximum secondary current of 1 A, with a load capacity of 1 VA This reliable device meets tolerance class 3 standards and is compliant with RoHS regulations, ensuring safe and efficient operation for your electrical needs.
Features and Benefits:
•RoHS compliant.
•Suitable for indoor use.
•Insulated conductor only.
•Provides accuracy with tolerance class 3.
Specifications:
| Primary current | 75 A |
| Secondary current | 0...1 A |
| Load | 1 VA |
| Tolerance class | 3 |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| Cable length | 2.5 m |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Insulation coordination Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Net weight | 1 g |

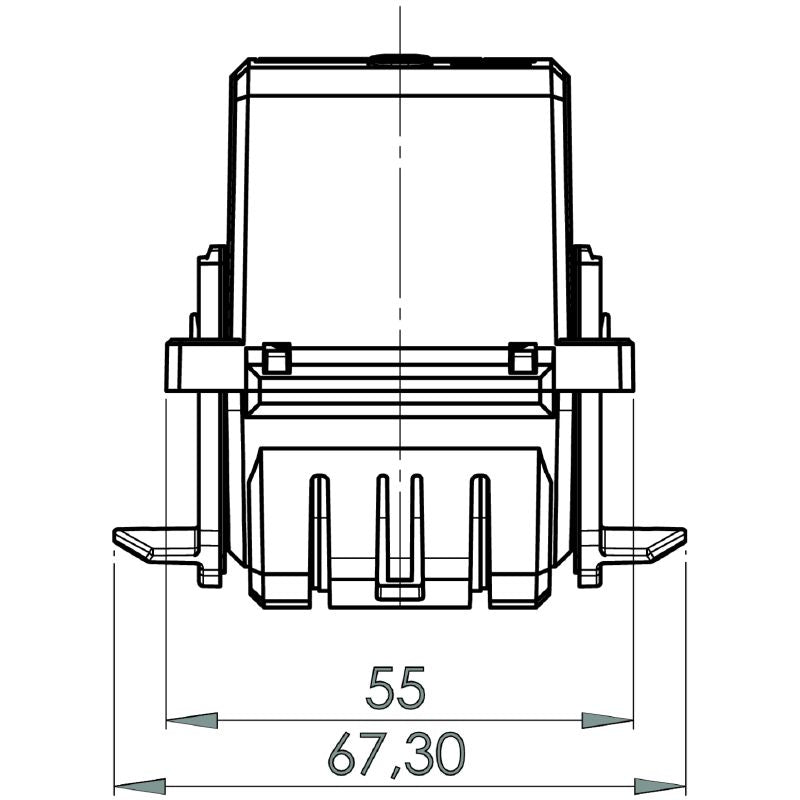

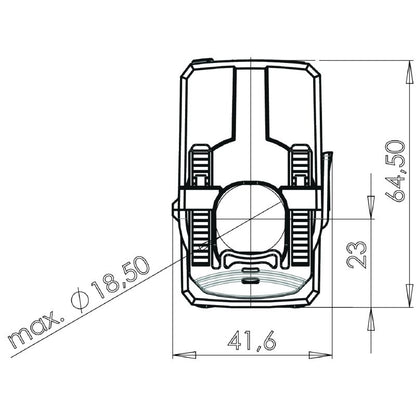

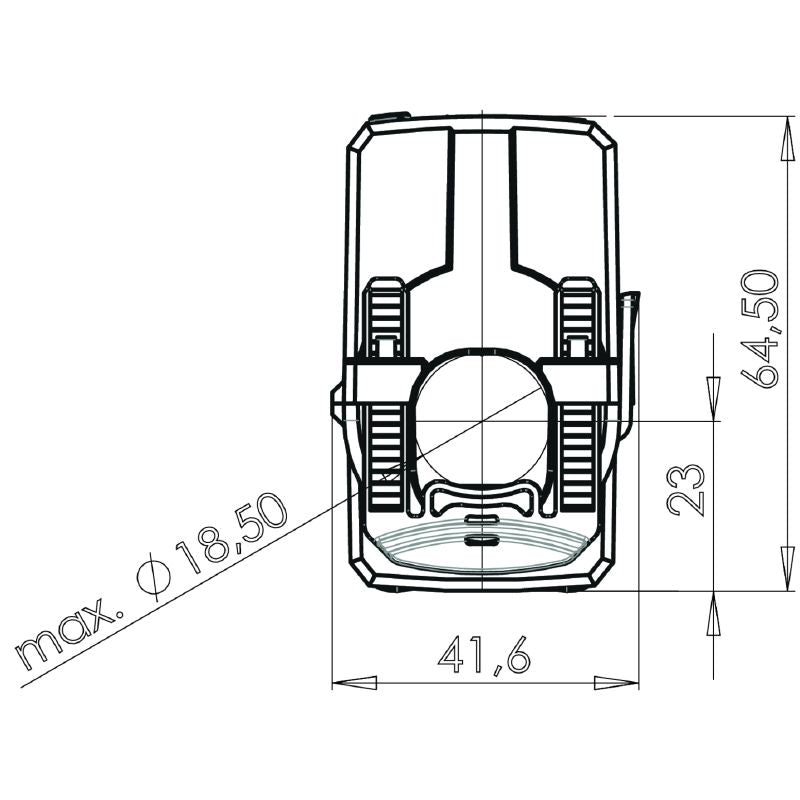

| Dimensions (Depth) | 68 mm |
| Dimensions (Height) | 64.5 mm |
| Dimensions (Width) | 41.6 mm |
