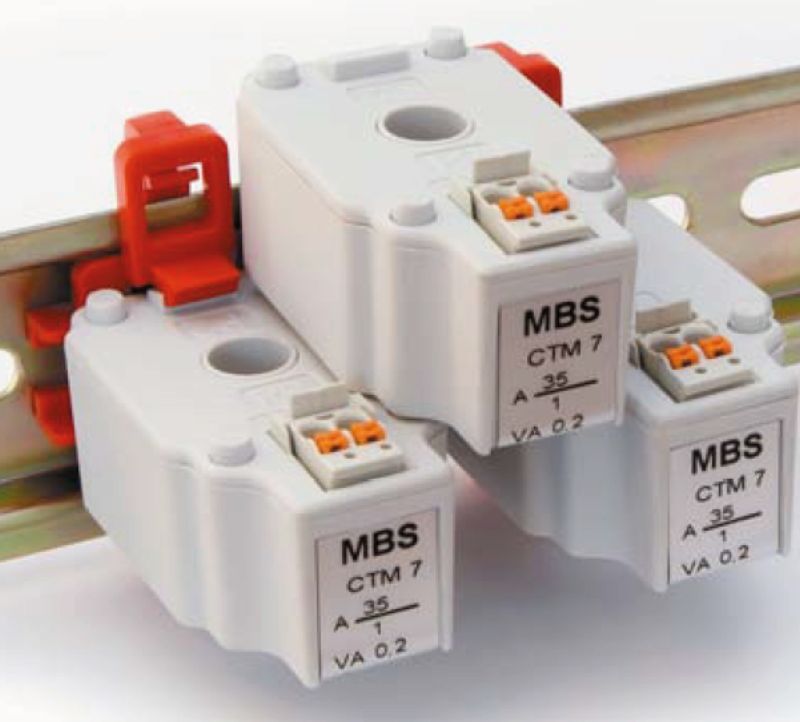

CMA-CTM-7-50-1A-0.4VA-1 - 50A Closed Current Transformer, SKU 2556030000
CMA-CTM-7-50-1A-0.4VA-1 - 50A Closed Current Transformer, SKU 2556030000
SKU: SKU: 2556030000 Download PDF
- CMA-CTM-7-50-1A-0.4VA-1 - 50A Closed Current Transformer, SKU 2556030000
- CMA-CTM-7-50-1A-0.4VA-1 - 50A Closed Current Transformer, SKU 2556030000
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing this efficient closed current transformer, offering a primary current capacity of 50 A and a maximum secondary current of 1 A, making it an essential solution for precise electrical measurements With a load capacity of 04 VA and a tolerance class of 1, this device is engineered for reliability Plus, it meets RoHS standards, ensuring compliance with safety and environmental regulations.
Features and Benefits:
•Indoor use installation.
•Insulated conductor type.
•Compliant with RoHS regulations.
Specifications:

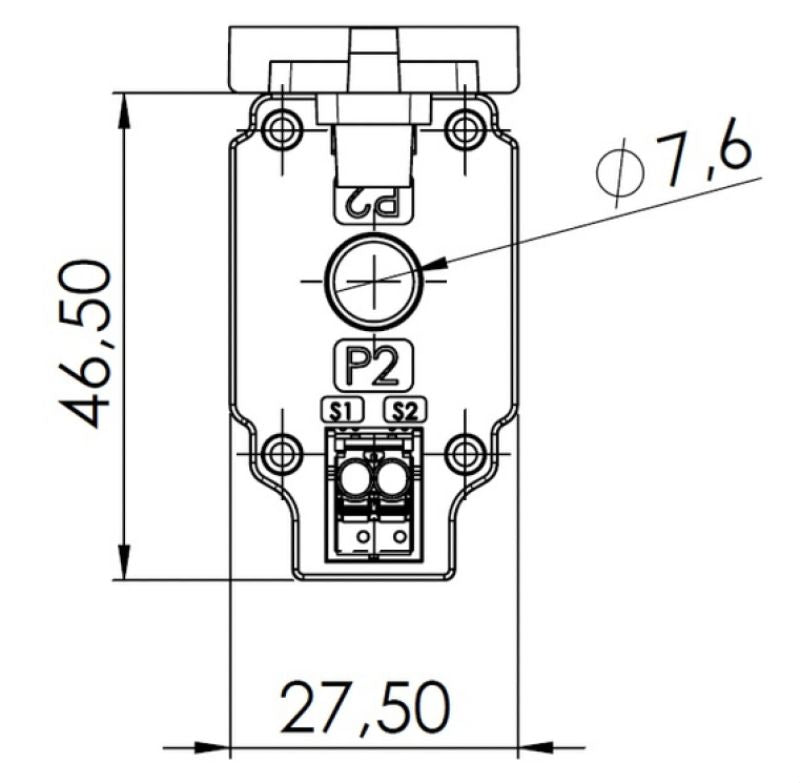

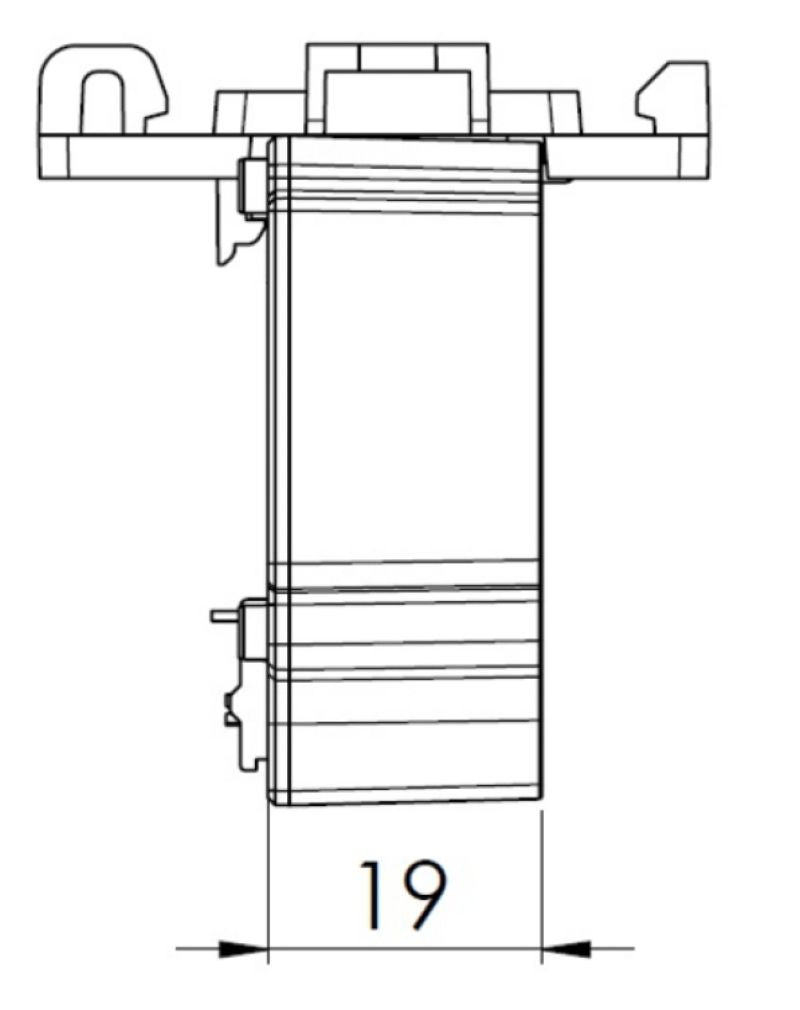

| Depth: | 19 mm (0.748 inch) |
| Height: | 46.5 mm (1.831 inch) |
| Width: | 27.5 mm (1.083 inch) |
| Storage temperature: | -25 °C to 70 °C |
| Operating temperature: | -5 °C to 50 °C |
| Load: | 0.4 VA |
| Primary current: | 50 A |
| Secondary current: | 0...1 A |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Thermal rated continuous current I thermal: | 1.0 x I rated |
| Insulation coordination: | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Tolerance class: | 1 |
| Manufacturer: | MBS AG |
