Description:
Introducing the KCMA-32-600-5A-5VA-1, a highly accurate split-core current transformer engineered for effective measurement Capable of handling a primary current of 600 A, it delivers a maximum secondary current of 5 A, accompanied by a load capacity of 5 VA This indoor-compatible device meets ROHS standards, ensuring both safety and reliability for your electrical applications.
Features and Benefits:
•Primary current rating of 600 A.
•Secondary current can reach up to 5 A.
•Load capacity of 5 VA.
•Tolerance class 1 for accuracy.
•Indoor installation location.
Specifications:

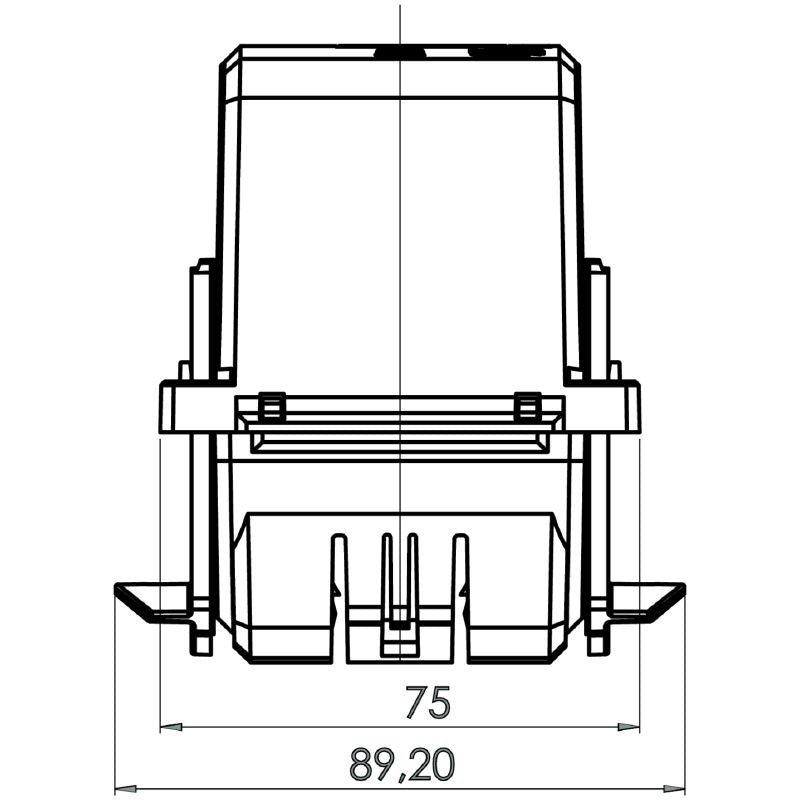

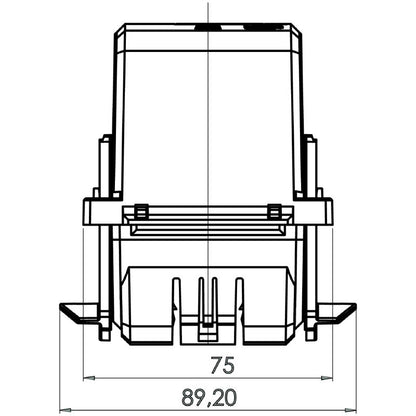

| Depth | 90 mm |

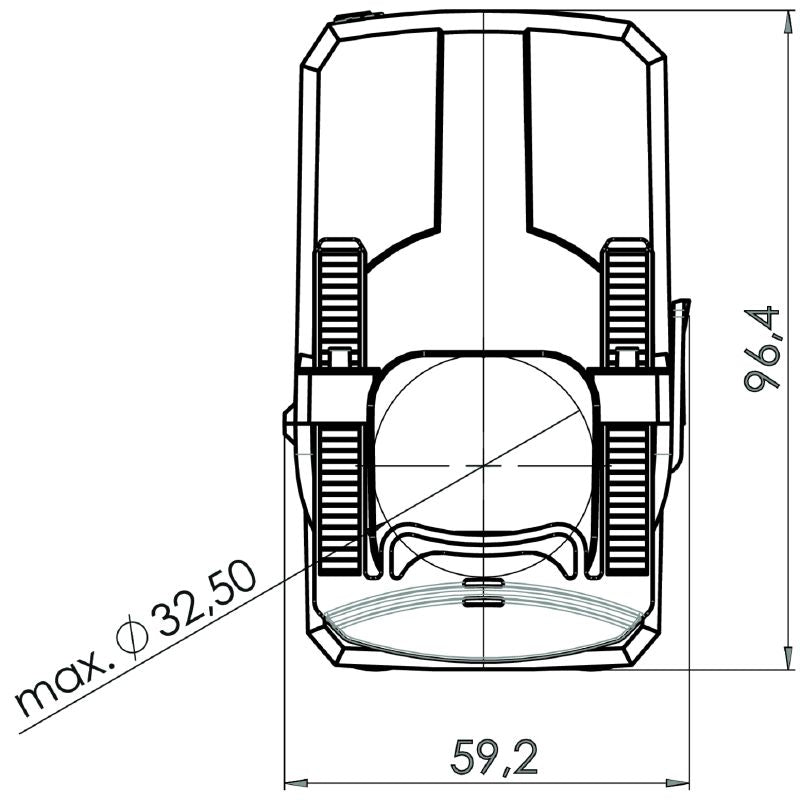

| Height | 96.4 mm |
| Width | 59.2 mm |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Cable length | 0.5 m |
| Manufacturer | MBS AG |
| Insulation coordination standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
