2716670000 - Compact Wall-Mounted Measurement Device, 540mm Wide
2716670000 - Compact Wall-Mounted Measurement Device, 540mm Wide
SKU: SKU: 2716670000 Download PDF
- 2716670000 - Compact Wall-Mounted Measurement Device, 540mm Wide
- 2716670000 - Compact Wall-Mounted Measurement Device, 540mm Wide
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

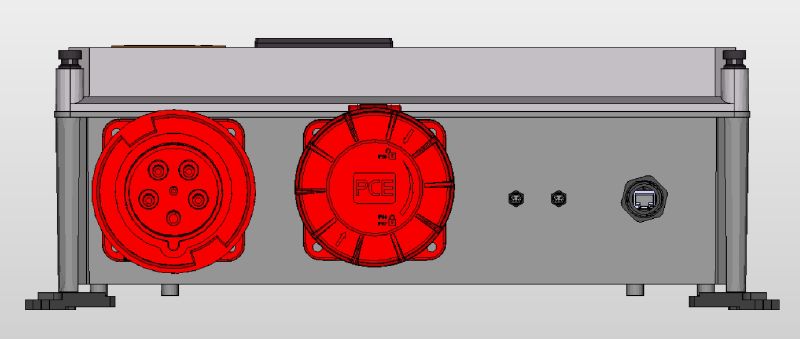

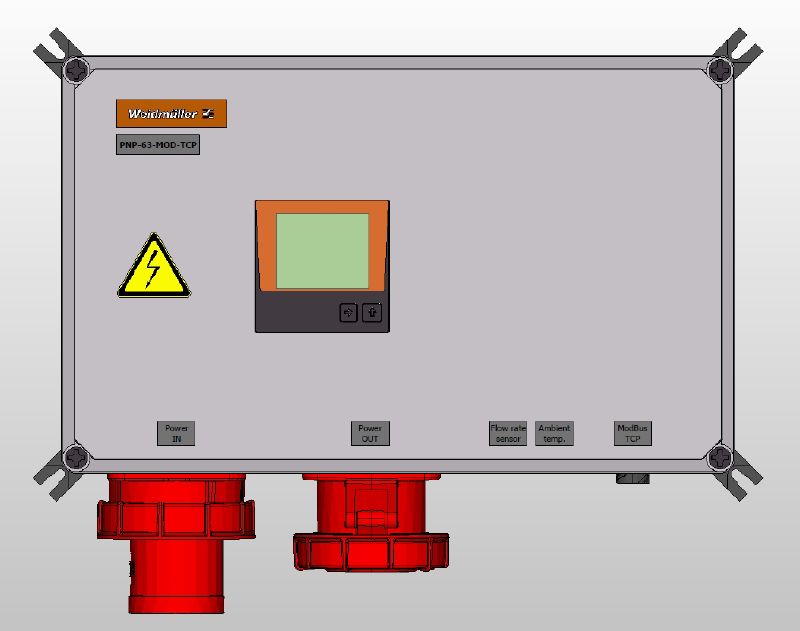

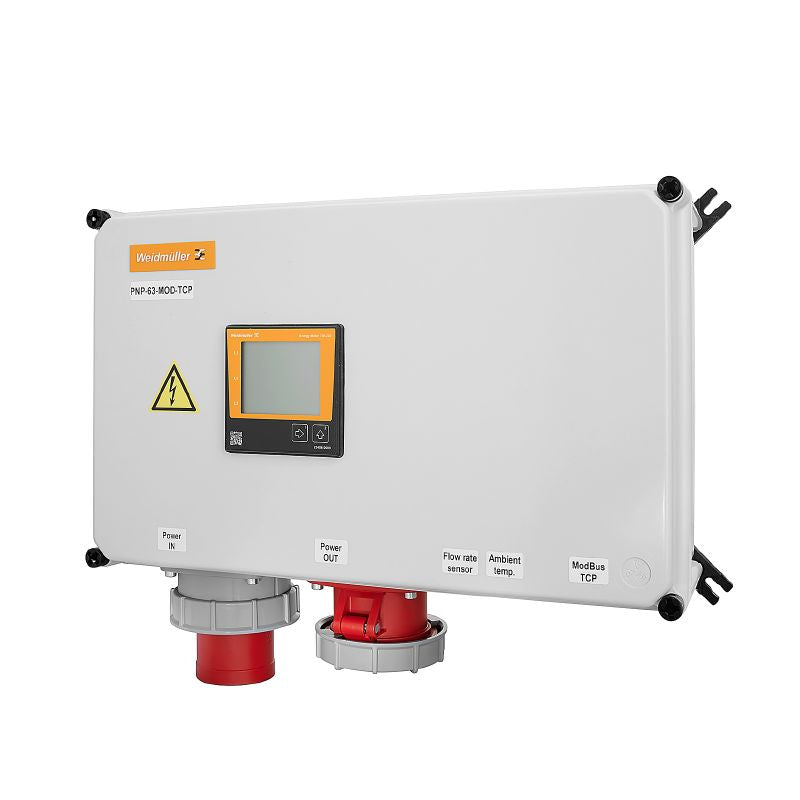

Introducing the PNP-63-MOD-TCP, a compact device that effectively measures electrical parameters, such as power and flow Designed for wall installation, this model features dimensions of 540 mm in width, 340 mm in height, and a depth of 225 mm Weighing in at 999 g, it is versatile enough to handle various measurement applications, including temperature readings when paired with an external sensor The device is built to operate within specific temperature ranges and offers seamless connectivity through an Ethernet interface.
Please note that the PNP-63-MOD-TCP will be discontinued after April 8, 2025.
Features and Benefits:
•Compatible with an external temperature sensor.
•Integrated current transformers for power measurement.
•Real-time data display capability on connected PCs.
•Easy Plug & Play usage.
•IP54 protection degree.
•Power and flow measurement.
Specifications:
| Depth | 225 mm |
| Height | 340 mm |
| Width | 540 mm |
| Net weight | 999 g |
| Rated current | 63 A |
| Ambient temperature | -10 °C…40 °C |
| Storage temperature | -25 °C...70 °C |
| Humidity at storage temperature | 0...90 % (no condensation) |
| Pollution severity | 4 |
| Surge voltage category | II |
| Measurement range, voltage L-L, AC | 480 V |
| Standards | IEC 61439-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Protection degree | IP54 |
