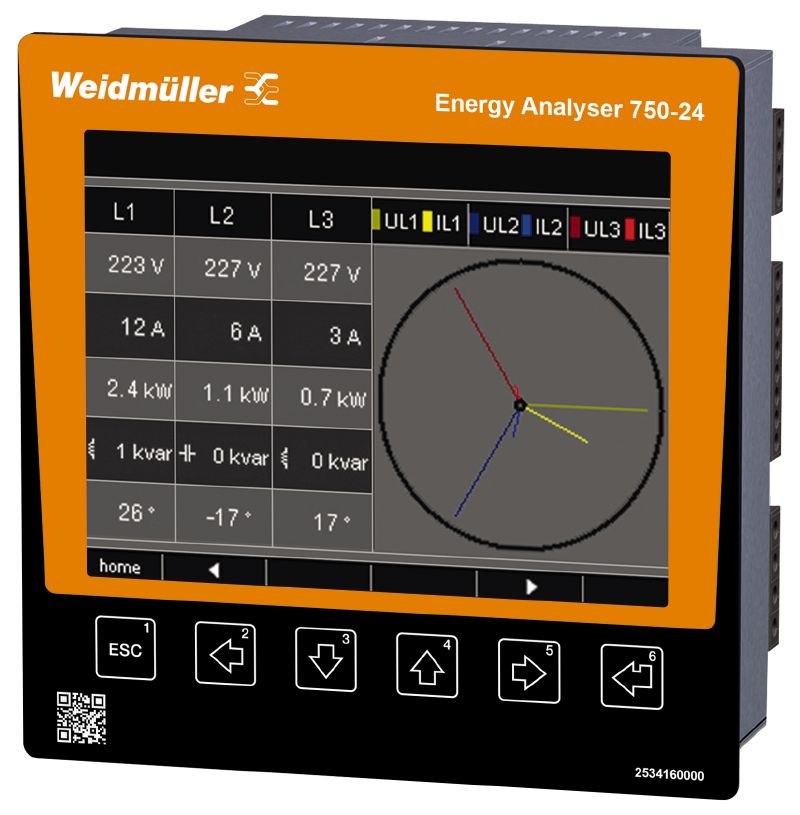

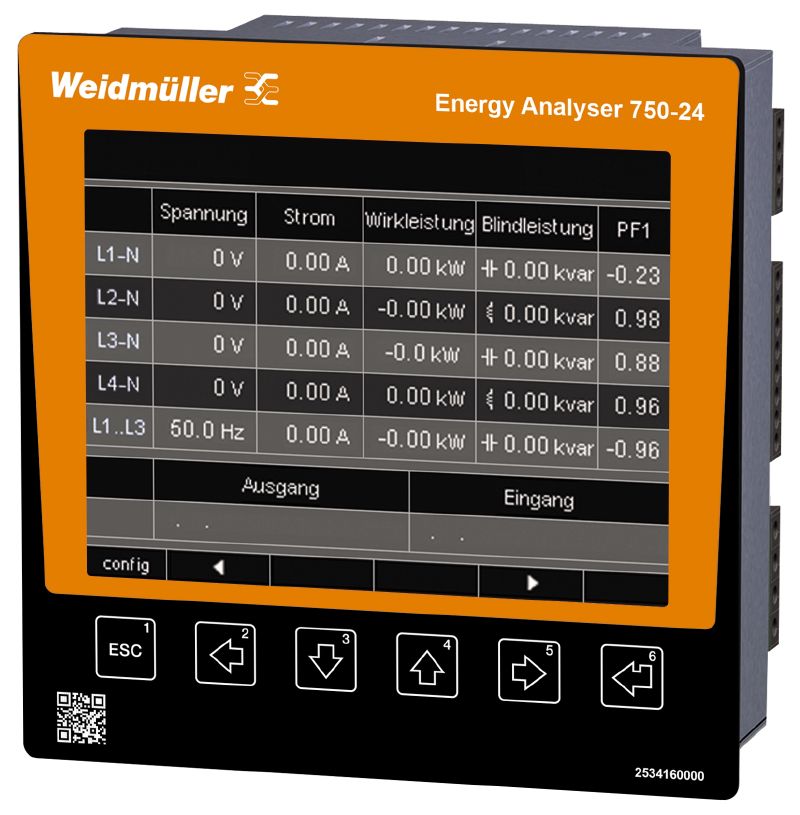

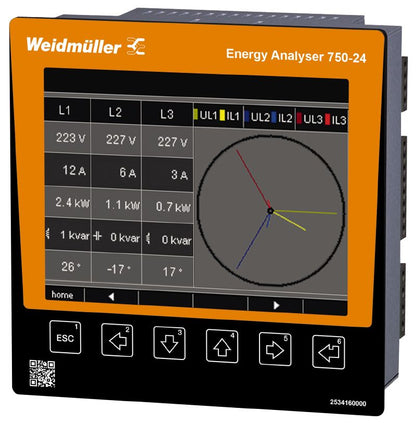

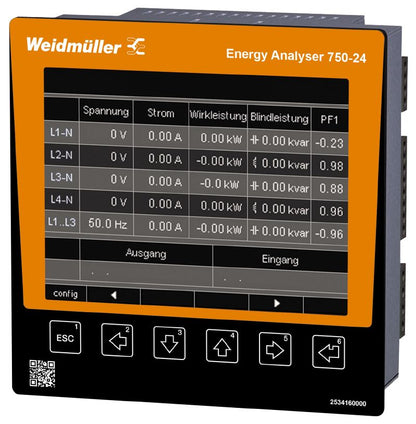

2534160000 - Compact Energy Analyser 750-24 with UL Certification

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

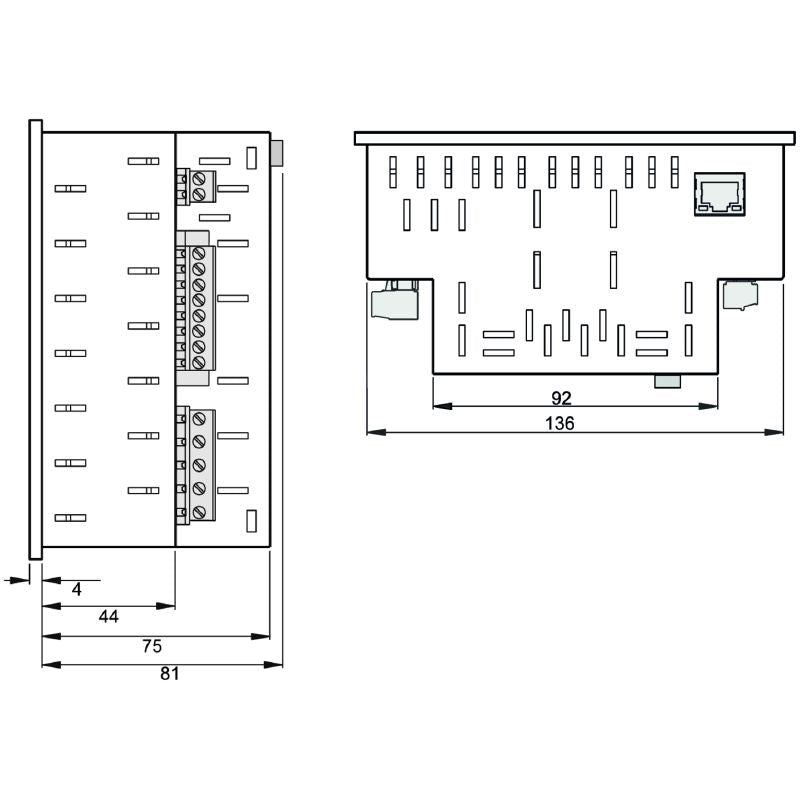

Introducing the ENERGY ANALYSER 750-24, your go-to solution for precise energy measurements, fully compliant with RoHS standards and UL certified With dimensions of 144 mm in height, 144 mm in width, and a depth of 81 mm, this compact device weighs 1,080 g, making it both portable and efficient Designed to withstand a storage temperature range of -25 °C to 70 °C, it operates flawlessly in conditions ranging from -10 °C to 55 °C and performs well in environments with humidity levels between 5% and 95% RH.

Trust the ENERGY ANALYSER 750-24 for reliable energy parameter monitoring in a variety of settings.

Features and Benefits:

•4 current-measuring channels plus 2 additional channels.

•Distortion factor THD-I acknowledgment.

•Measuring accuracy for current and voltage at 0.1%.

•Memory capacity of 256 MB for recording data.

•LCD display for monitoring.

•Integrated logic technology.

•Compatible with a variety of communication protocols including RS485 and Modbus.

•Measurement accuracy for active energy classified as Class 0.2S.

•Supports various voltage measurement ranges.

Specifications:
