Description:

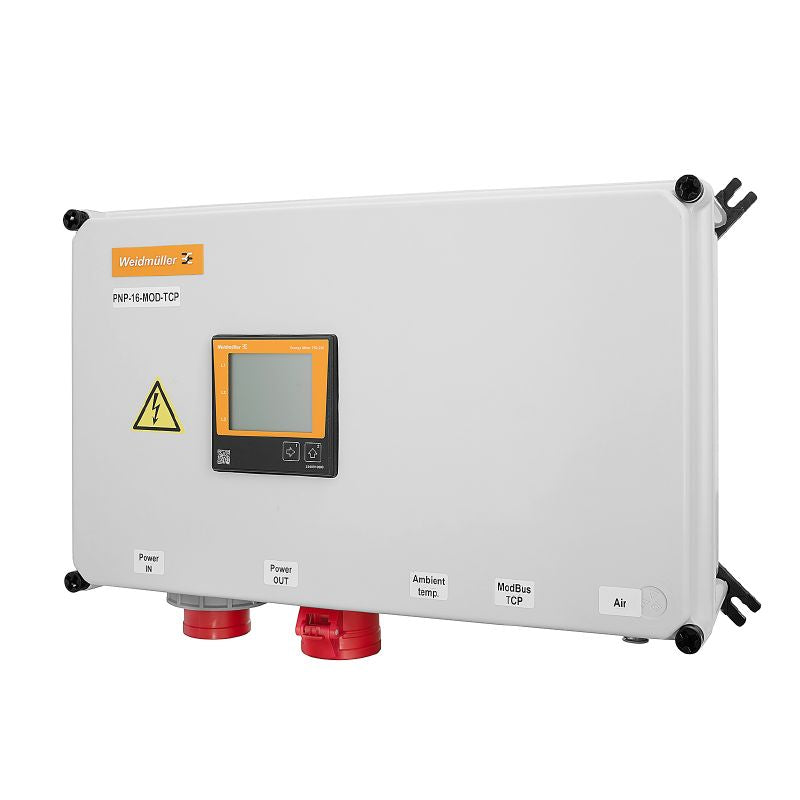

Introducing the PNP-16-MOD-TCP, a sophisticated measuring instrument tailored for monitoring power and flow This device boasts built-in sensors that enable real-time data transfer, ensuring you stay updated on your measurements Fully compliant with RoHS standards, it supports various communication protocols, including TCP/IP and Modbus/TCP, facilitating seamless networking capabilities Engineered to function effectively within ambient temperatures of 0 °C to 45 °C, it also performs well under a wide range of humidity conditions.
With a sturdy design suited for wall-mounting, this device is perfect for applications that demand reliable and efficient flow measurement.
Features and Benefits:
•Ethernet 10/100 Base-TX interface.
•Plug & Play functionality.
•Configurable digital outputs.
•Supports multiple communication protocols including FTP and SNMP.
•Power and flow measurement.
Specifications:
| Depth | 225 mm |
| Height | 340 mm |
| Width | 530 mm |
| Rated current | 16 A |
| Air pressure (operation) | ≥ 795 hPa |
| Airflow rate, max | 2,000 l/min |
| Airflow rate, min | 20 l/min |
| Protection degree | IP54 |
| Nominal input air pressure | 8 bar |
| Pollution severity | 4 |
| Surge voltage category | II |
| Measurement range, voltage L-L, AC | 480 V |
| Storage temperature | -10 °C...60 °C |
| Humidity at storage temperature | 35...85 % rel. humidity, no condensation |
| Ambient temperature | 0 °C…45 °C |
| Humidity | 35…85 % RH |
| Type of mounting | Wall mounting; Connection side lying |
| Type of compressed-air connection | Quick coupling for hoses with 10 mm |
