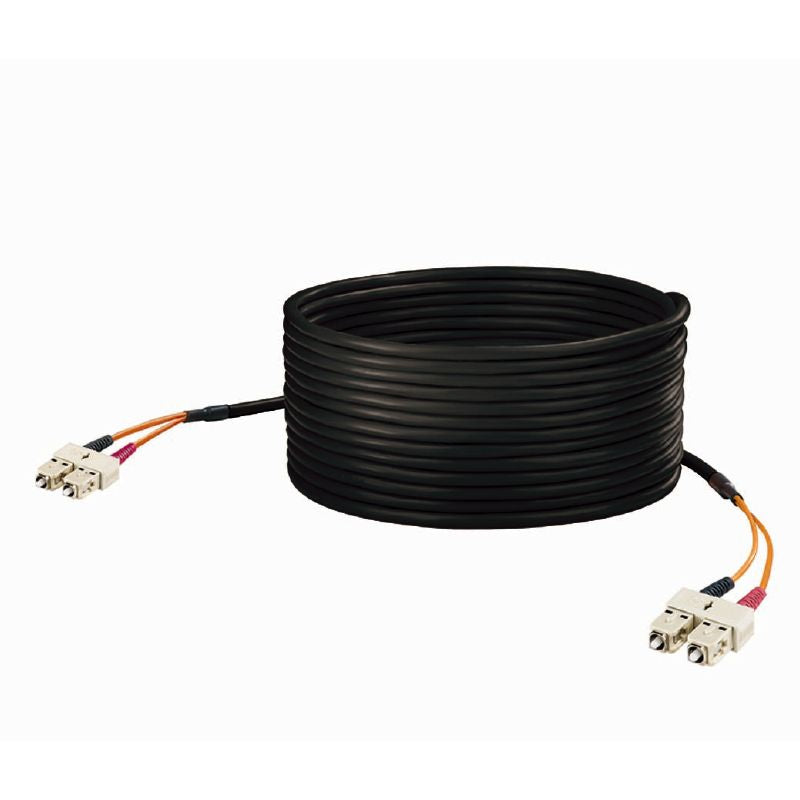

8876430030 - 3m SC Duplex Dragline Cable, IP 20, 50µm, PUR Sheath

8876430030 - 3m SC Duplex Dragline Cable, IP 20, 50µm, PUR Sheath

SKU: 8876430030   Download PDF

Select a Variant:
  • 8876430030 - 3m SC Duplex Dragline Cable, IP 20, 50µm, PUR Sheath
Qty:
Now $56.69   Web pricing policy
BEFORE   $0.00 Now $56.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing our SC duplex dragline cable, tailored for IP 20 applications This durable cable measures 3 meters in length, featuring a core diameter of 50 µm Encased in a robust PUR sheath, it is engineered to perform well under various operating conditions while adhering to stringent standards Perfect for your connectivity needs in multiple environments.

Features and Benefits:

    •Conforms to RoHS standards.

    •Designed for a temperature range of -40 °C to 80 °C for storage and operation.

    •Low insertion and return loss rates, ensuring effective signal transmission.

    •High bending cycle durability with 100,000 cycles.

Specifications:

 Length: 3 m
 Core diameter: 50 µm
 Sheath diameter: 6 mm
 Bending cycles: 100,000
 Operating temperature: -40 °C to 80 °C
 Storage temperature: -40 °C to 80 °C
 Installation temperature: -20 °C to 60 °C
 Fibre type: Multimode OM2
 Attenuation: 2.3 dB/km at 850 nm; ≤ 0.5 dB/km at 1300 nm
 Insertion loss: ≤ 0.4 dB
 Return loss (attenuation): ≥ 30 dB
 Environmental Product Compliance: Compliant with exemption
 Connector standard: IEC 61754-4
 Min. bending radius, once only: 25 mm
 Min. bending radius, repetitive: 77 mm
