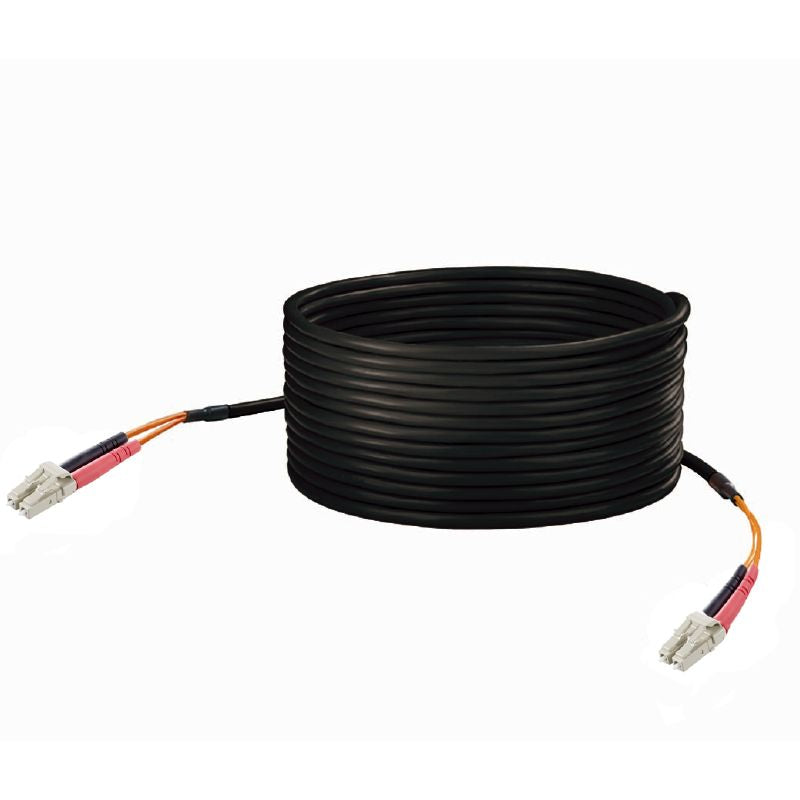

8979020000 - 10m LC-Duplex Dragline Cable, 50µm, PUR, IP 20

Description:

Introducing our versatile dragline cable, equipped with LC-Duplex connectors and designed for IP 20 applications This cable stretches a generous 10 meters long and features a core diameter of 50 µm Its outer sheath, crafted from PUR, enhances flexibility, making it easy to handle and install With an impressive temperature tolerance range from -40 °C to 80 °C, it’s perfect for various demanding environments.

Features and Benefits:

•Attenuation of 2.3 dB/km at 850 nm and ≤ 0.5 dB/km at 1300 nm.

•Bandwidth of 500 MHz*km at both 850 nm and 1300 nm.

•Insertion loss of ≤ 0.4 dB.

•High return loss of ≥ 30 dB.

•Bending cycles rated for 100,000 times.

•Min. bending radius of 25 mm for once-only bends and 77 mm for repetitive bends.
