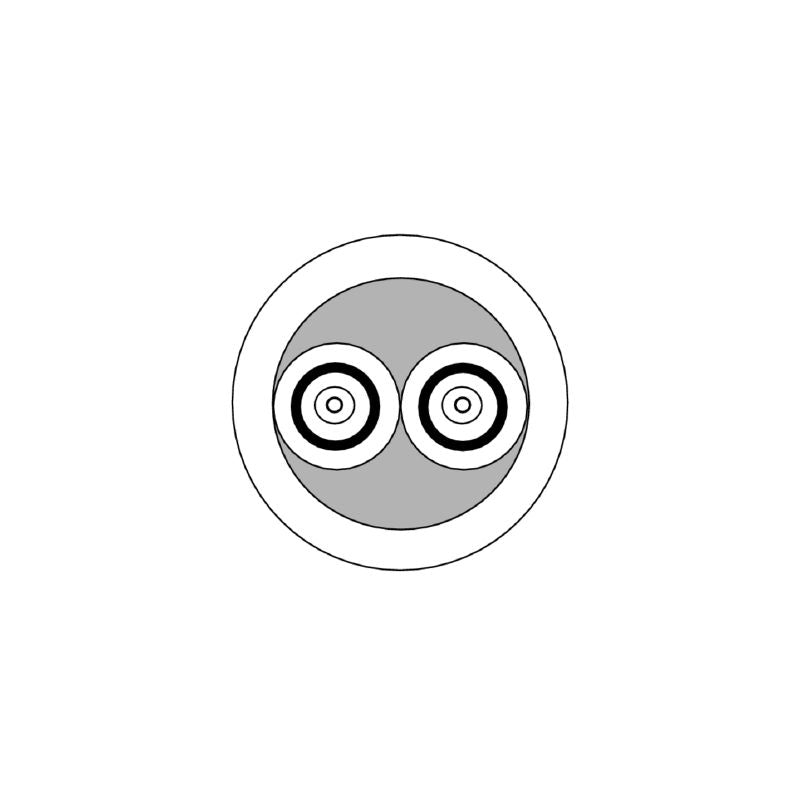

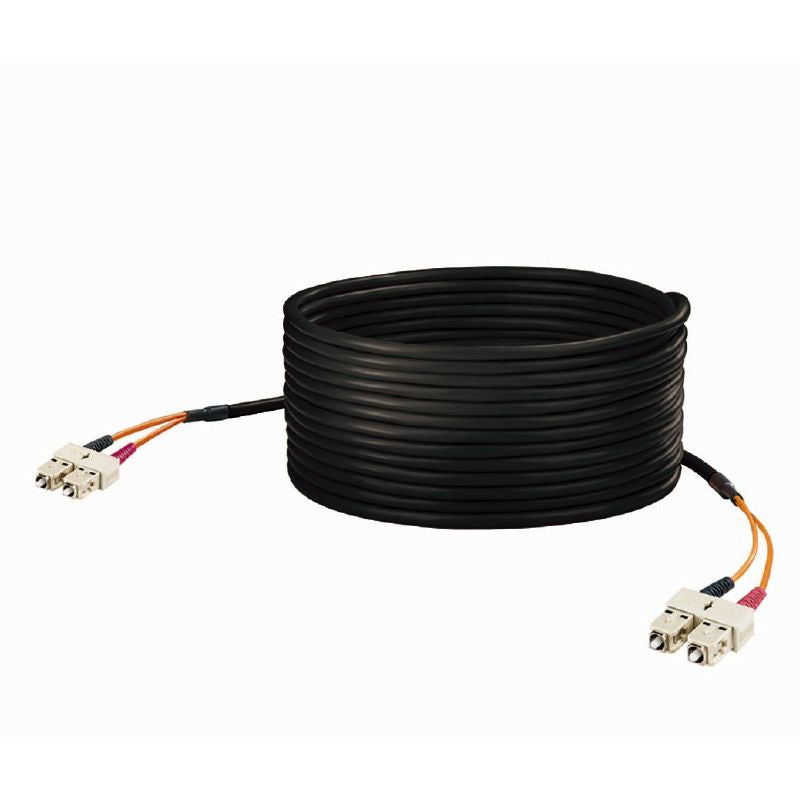

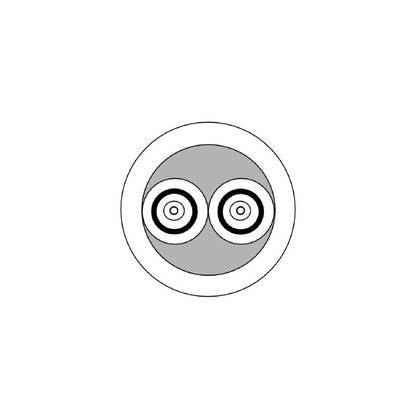

8876430100 - 10m SC Duplex Dragline Cable, 50µm PUR Sheath

8876430100 - 10m SC Duplex Dragline Cable, 50µm PUR Sheath

SKU: 8876430100   Download PDF

Select a Variant:
  • 8876430100 - 10m SC Duplex Dragline Cable, 50µm PUR Sheath
Qty:
Now $94.99   Web pricing policy
BEFORE   $0.00 Now $94.99 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the SC duplex dragline cable, designed for environments with an IP 20 rating With a core diameter of 50 microns, this durable cable features a robust PUR sheath and extends to a length of 10 meters It meets RoHS standards with certain exemptions and is compliant with IEC 61754-4 specifications This cable is built to perform under varying conditions, with storage and operating temperatures ranging from -40 °C to 80 °C, while installation can be done between -20 °C and 60 °C, making it a reliable choice for your connectivity needs.

Features and Benefits:

    •Bending cycles of up to 100,000.

    •Halogen-free material.

    •Break-out dragline cable design.

    •Low insertion loss of ≤ 0.4 dB.

    •High return loss of ≥ 30 dB.

Specifications:

 Length 10 m
 Connector standard IEC 61754-4
 Fibre type GOF Multimode OM2
 Attenuation 2.3 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
 Bandwidth 500 MHz*km at 850 nm, 500 MHz*km at 1300 nm
 Sheath diameter 6 mm
 Primary coating 245 µm
 Min. bending radius, once only 25 mm
 Min. bending radius, repetitive 77 mm
 Plug left SC-Duplex, IP20, male contact, straight, plastic, unshielded
 Plug right SC-Duplex, IP20, male contact, straight, plastic, unshielded
