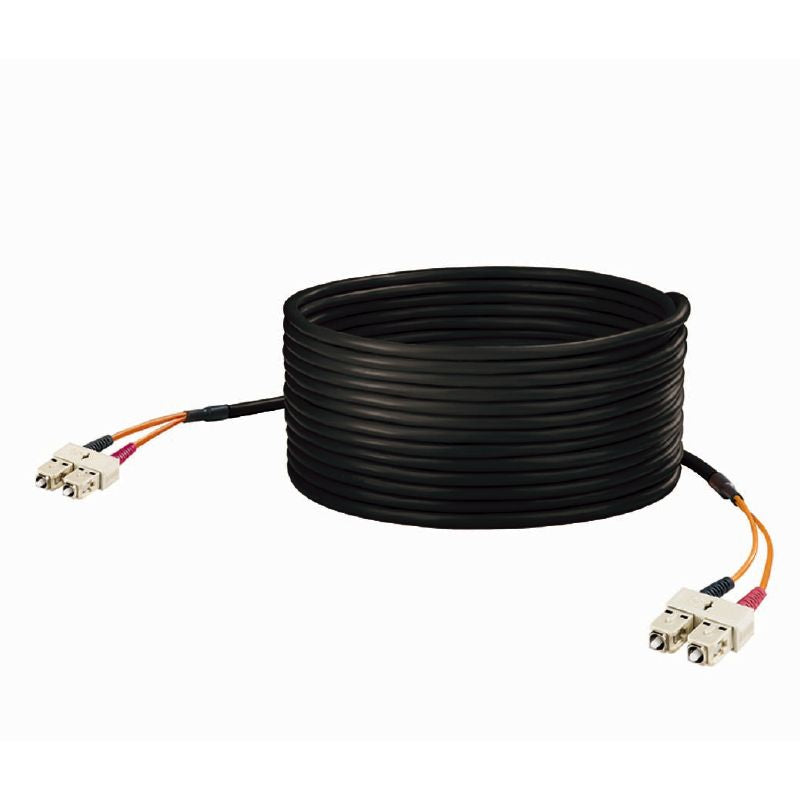

8876430010 - 1m Dragline Cable, SC Duplex, 50µm PUR, IP20

8876430010 - 1m Dragline Cable, SC Duplex, 50µm PUR, IP20

SKU: 8876430010   Download PDF

Select a Variant:
  • 8876430010 - 1m Dragline Cable, SC Duplex, 50µm PUR, IP20
Qty:
Now $45.64   Web pricing policy
BEFORE   $0.00 Now $45.64 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the reliability of this dragline cable equipped with SC duplex connectors, crafted for performance under IP20 ratings With a fiber core thickness of 50 µm, this 1-meter cable is constructed from high-quality PUR material It meets RoHS compliance, with an exemption, and is engineered to function optimally in a wide range of temperatures, ensuring solid performance between -40 °C and 80 °C Perfect for a variety of applications, this cable combines durability with versatility for all your connectivity needs.

Features and Benefits:

    •Compliant with RoHS and REACH SVHC guidelines.

    •Able to endure up to 100,000 bending cycles.

    •Black sheath color.

    •Guaranteed insertion loss of ≤ 0.4 dB.

    •Standardized connector following IEC 61754-4.

Specifications:

 Length 1 m
 Core diameter 50 µm
 Sheath diameter 6 mm
 Bending radius (once only) 25 mm
 Bending radius (repetitive) 77 mm
 Fibre type Multimode
 Insertion loss ≤ 0.4 dB
 Return loss ≥ 30 dB
 Attenuation at 850 nm 2.3 dB/km
 Attenuation at 1300 nm ≤ 0.5 dB/km
 Bandwidth at 850 nm 500 MHz*km
 Bandwidth at 1300 nm 500 MHz*km
 Material sheath PUR
 Primary coating 245 µm
 Storage temperature -40 °C...80 °C
 Operating temperature -40 °C...80 °C
 Installation temperature -20 °C...60 °C
