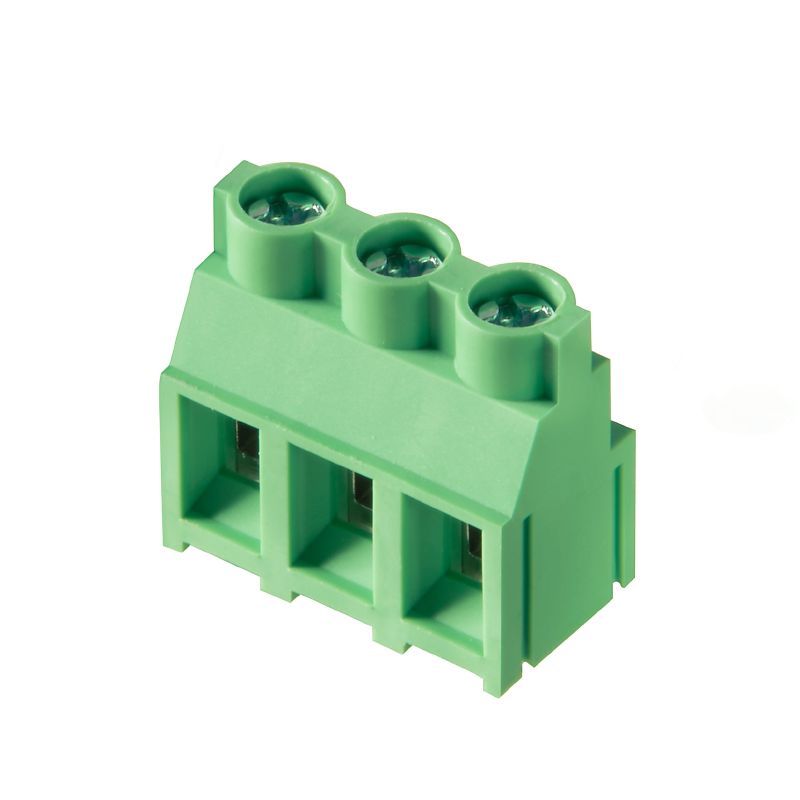

2727230000 - IEC Compliant 12.5mm x 21.5mm Electrical Connector (Pack of 120)

Description:

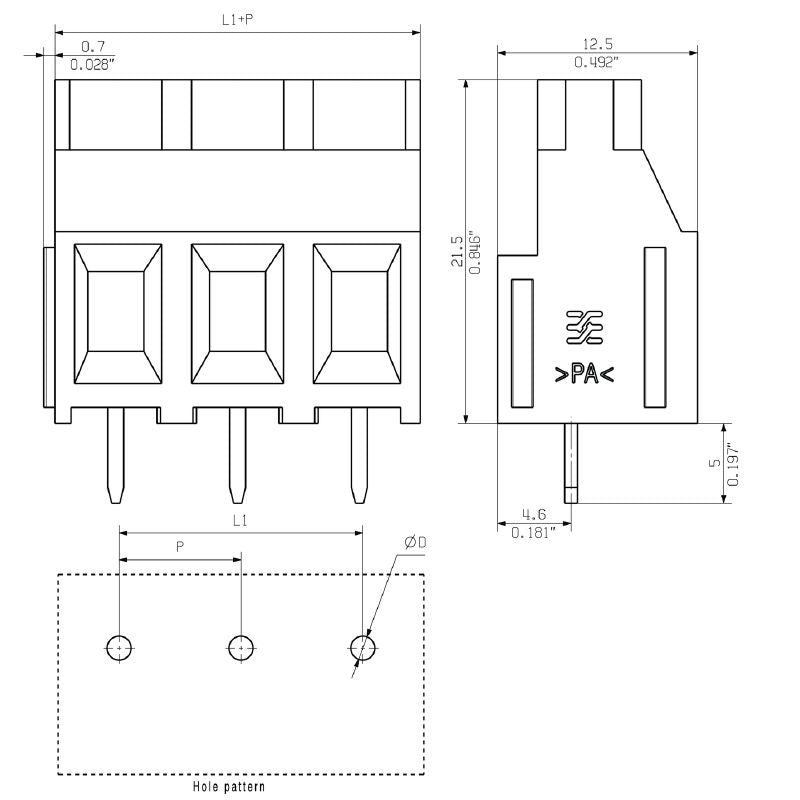

Introducing the TPS 762/03/90 50SN GN BX, a robust component that meets ROHS standards for safety and environmental compliance Featuring a UL File Number E175455, this product is built to accommodate IEC specifications at 1000 V and 32 A, supporting wire sizes from 005 to 6 mm² For UL standards, it can handle 300 V and 20 A for wire gauges between AWG 30 and AWG 10 Each unit is neatly packaged in a box, and measures 12.

5 mm in depth, 215 mm in height, and 2286 mm in width, weighing in at just 0836 g Ideal for various electrical applications, this component combines reliability and efficiency.

Features and Benefits:

•Compliant with ROHS and has a certification number E175455.

•Configured for clamping yoke connection methods.

•Designed for through-hole soldering.

•Operating temperatures range from -40 °C to 105 °C.

•Insulating material is PA, with a UL 94 flammability rating of V-0.

•Suitable for use in electrical panels and various electronic devices requiring secure connections.
