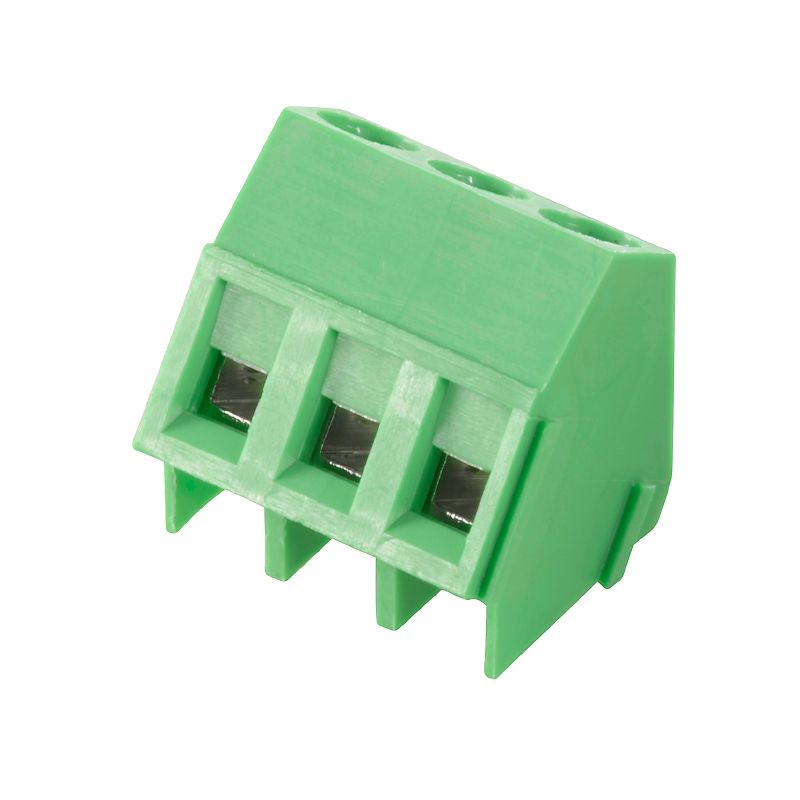

2651290000 - 17-Pole PCB Connector with 135° Outlet & 5mm Pitch (Pack of 33)
2651290000 - 17-Pole PCB Connector with 135° Outlet & 5mm Pitch (Pack of 33)
SKU: SKU: 2651290000 Download PDF
- 2651290000 - 17-Pole PCB Connector with 135° Outlet & 5mm Pitch (Pack of 33)
- 2651290000 - 17-Pole PCB Connector with 135° Outlet & 5mm Pitch (Pack of 33)
Couldn't load pickup availability
Description:
Introducing the TSS 500/17/135 33SN GN BX, a specialized connector designed for efficient PCB wire connections This component features a clamping yoke method and provides a 135° conductor outlet direction, boasting a compact pitch of 5 mm With capacity for 17 poles, each pole includes a solder pin measuring 33 mm in length
The connector supports a versatile range of conductor sizes from 02 to 25 mm², compatible with AWG standards from 30 to 12.
It meets RoHS compliance, ensuring adherence to environmental regulations Packed securely in a box, it's built for a variety of environmental conditions with an IP20 protection rating, making it a reliable choice for your electronic projects.
Features and Benefits:
•RoHS compliant with exemption.
•Net weight of 40.8 g.
•Suitable for solid and flexible conductors.
•Maximum operating temperature of 105 °C.
•Minimum storage temperature of -40 °C.
•IP20 protection degree.
•Basic connection in electronic devices using OMNIMATE products.

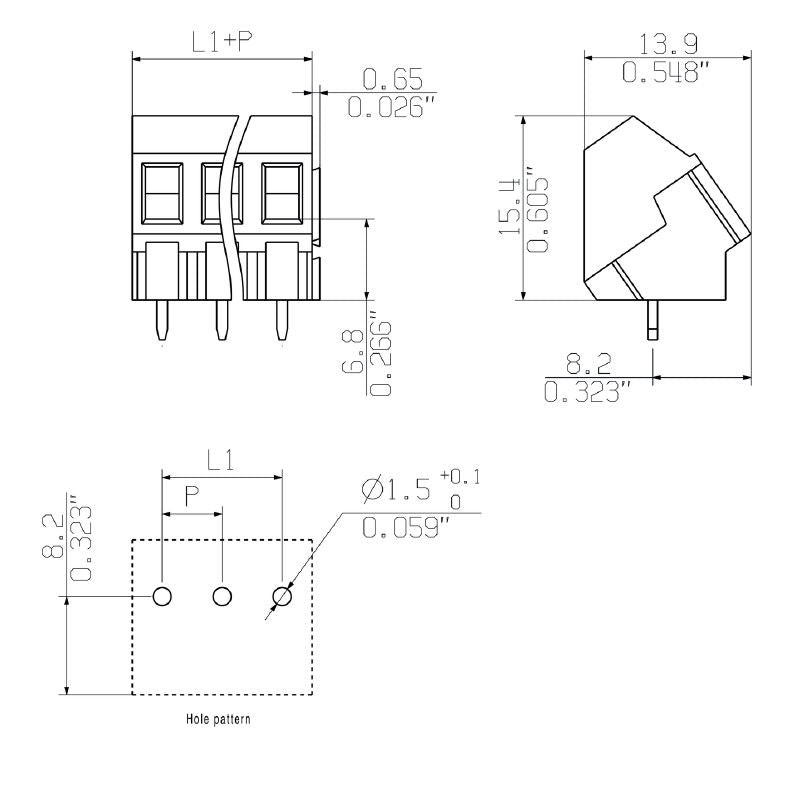

Specifications:

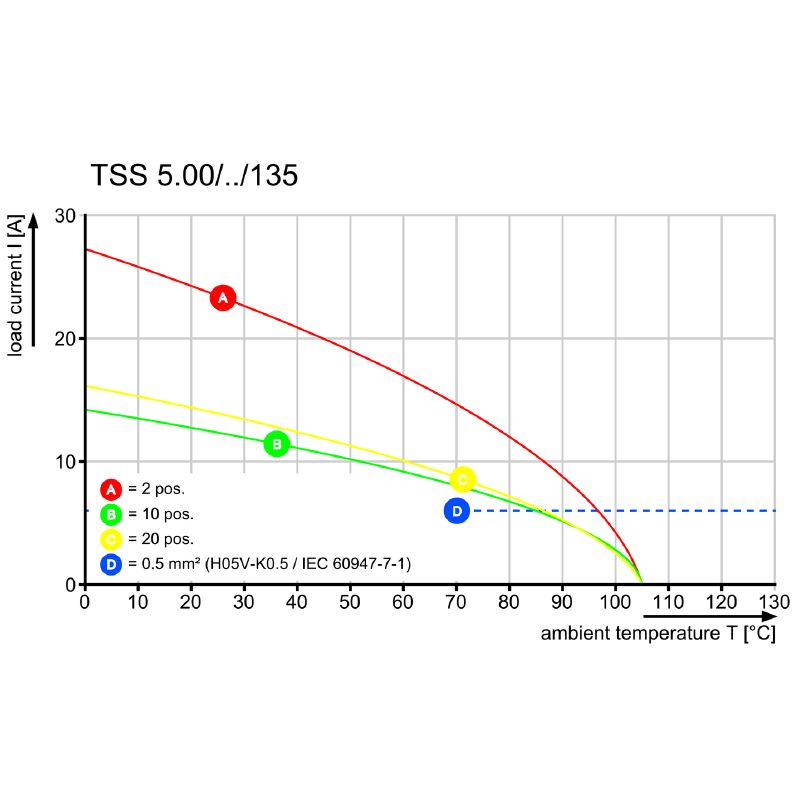

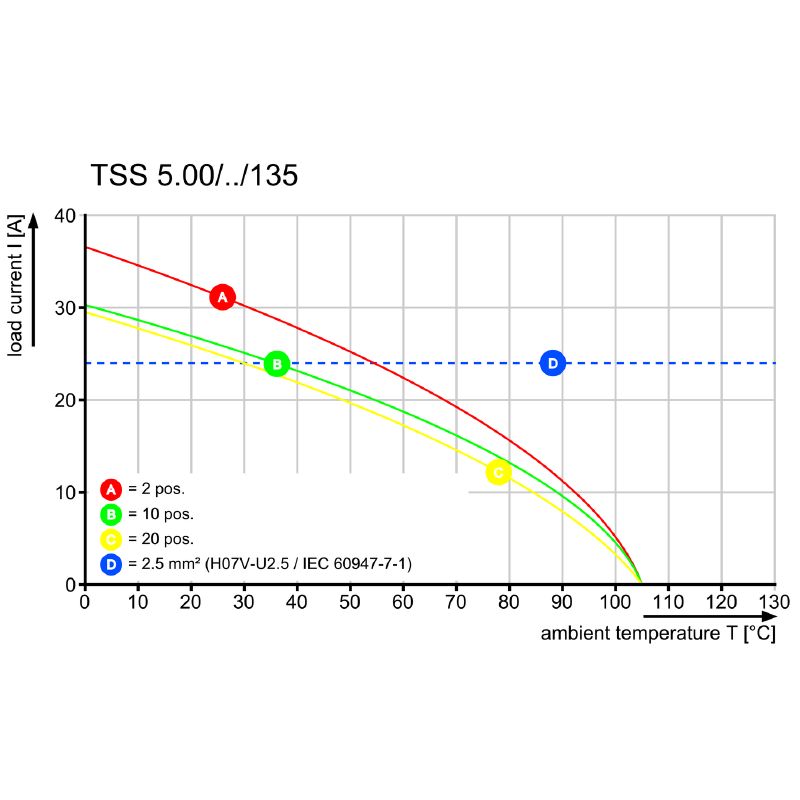

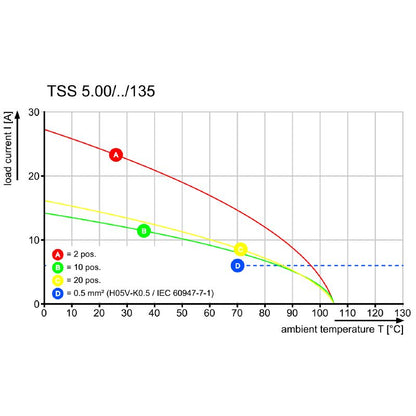

| Rated voltage acc. to IEC | 630 V |
| Rated current acc. to IEC | 20 A |
| Clamping range min. | 0.2 mm² |
| Clamping range max. | 2.5 mm² |
| Solder pin dimensions | 0.8 x 0.9 mm |
| Stripping length | 7.5 mm |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.55 Nm |
| Insulating material | PA |
| Contact material | Cu-alloy |
| Solder eyelet hole diameter | 1.5 mm |
| UL voltage rating | 300 V |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 70 °C |
| Operating temperature max. | 105 °C |
