Description:

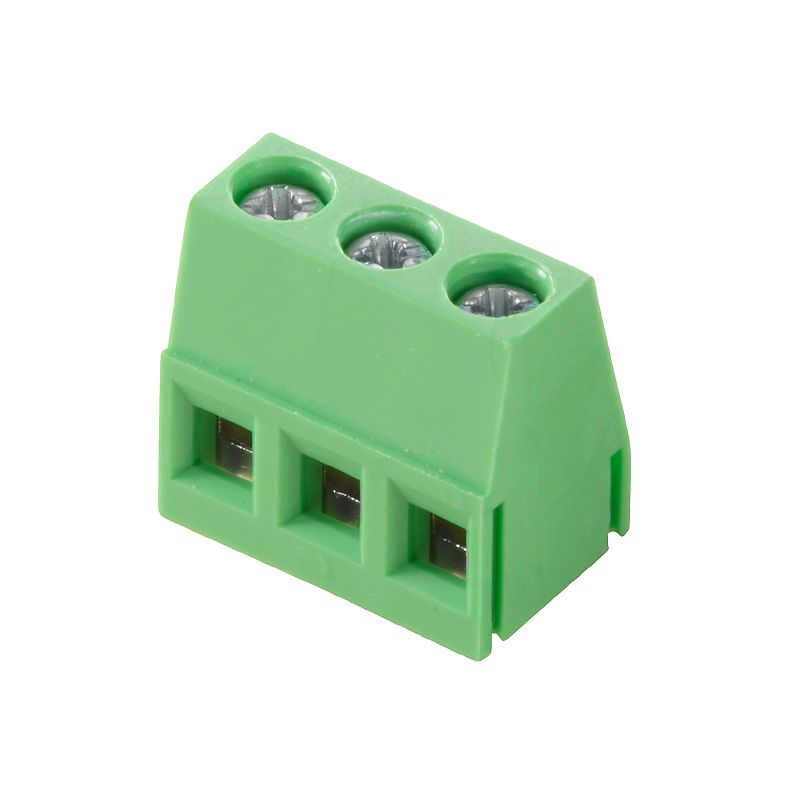

Introducing the TMS 508/10/90 30SN GN BX, a compliant and reliable component that meets RoHS directives and is UL certified (file number E60693) Each standard packaging contains 96 units, making it a practical choice for bulk needs This product operates effectively under IEC specifications of 320 V and 15 A and is suitable for conductors ranging from 02 to 25 mm², accommodating AWG sizes from 30 to 12.
Its versatile design makes it ideal for a variety of applications.
Features and Benefits:
•Compliant with RoHS exemptions such as 6c.
•Clamping yoke connection for wire connection method.
•Suitable for THT solder connection to the PCB.
•90° conductor outlet direction.
•IP20 protection degree.
Specifications:
| Rated current | 15 A |
| Rated voltage | 320 V |

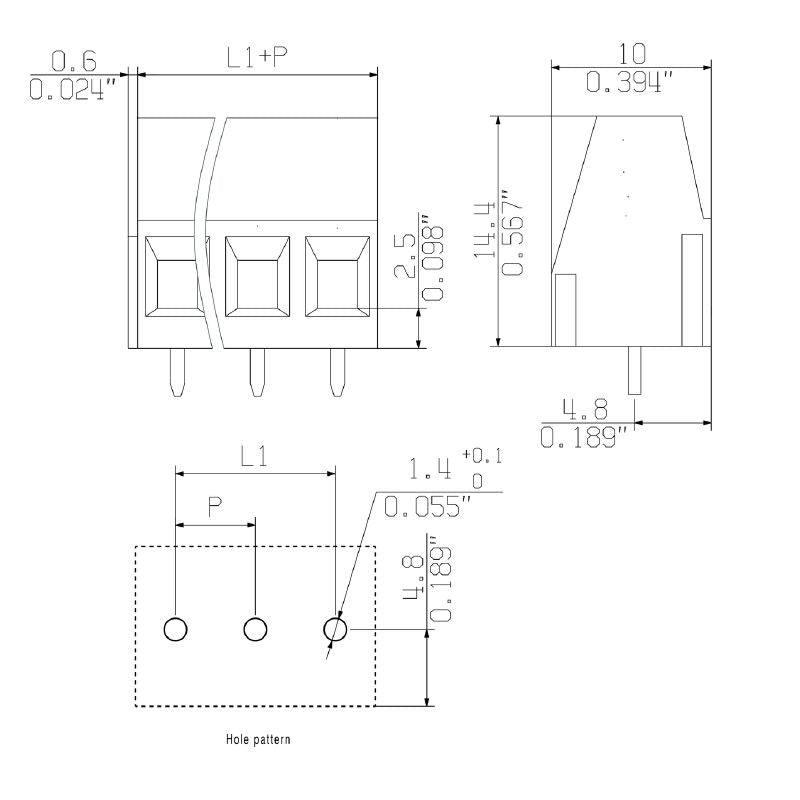

| Pitch | 5.08 mm |
| Number of poles | 10 |
| Solder pin length | 3 mm |
| Solder pin dimensions | 0.7 x 0.9 mm |
| Stripping length | 6 mm |
| Tightening torque (min.) | 0.5 Nm |
| Tightening torque (max.) | 0.55 Nm |
| Insulating material | PA |
| UL 94 flammability rating | V-0 |
| Storage temperature range | -40 °C to 70 °C |
| Operating temperature max. | 105 °C |
