Description:

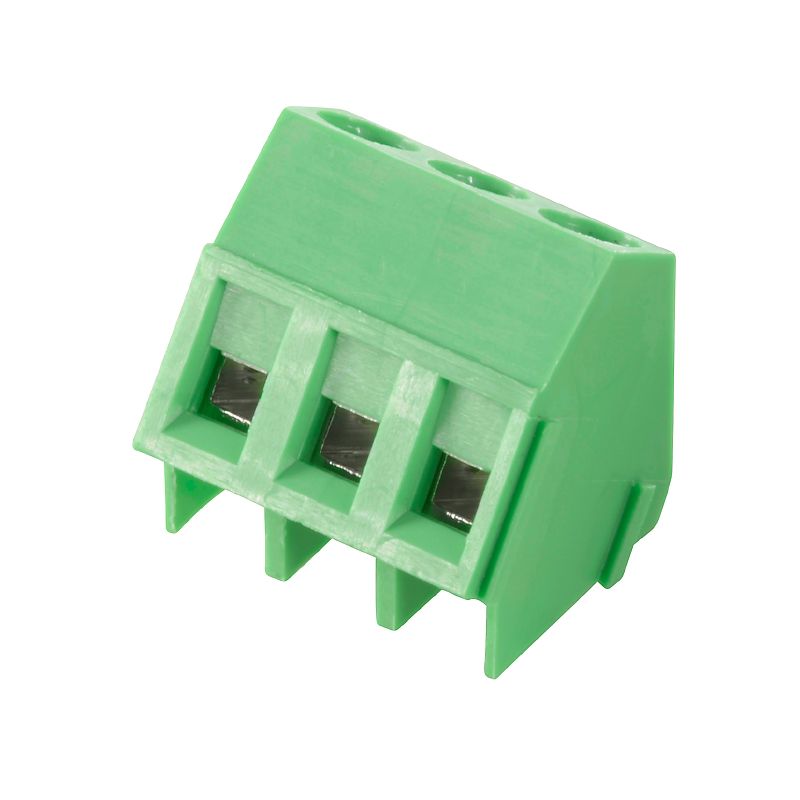

Introducing the TSS 500/08/135 33SN GN BX connector, engineered for reliable wire integration onto PCBs using THT solder With a 135° conductor outlet and a 5 mm pitch, it is expertly designed to support up to 8 poles, each accommodating a 33 mm long solder pin This connector boasts an IP20 protection rating, making it versatile for various applications Crafted from durable PA material, the contacts are constructed from copper alloy with a tinned finish to enhance conductivity and longevity.
Ideal for your electronic assembly needs.
Features and Benefits:
•Compliant with RoHS exemption.
•UL certified (File Number E60693).
•Effective tightening torque parameters between 0.5 Nm and 0.55 Nm.
•Minimum stripping length of 7.5 mm.
•Allowed wired connections across a clamping range of 0.2 - 2.5 mm².
•Compatible with OMNIMATE basic products.
Specifications:

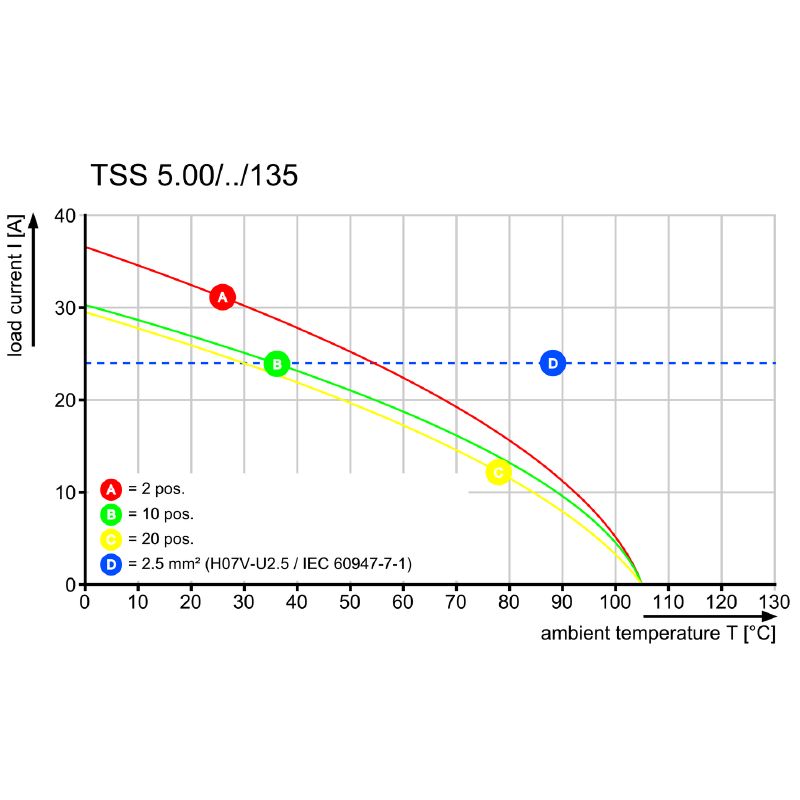

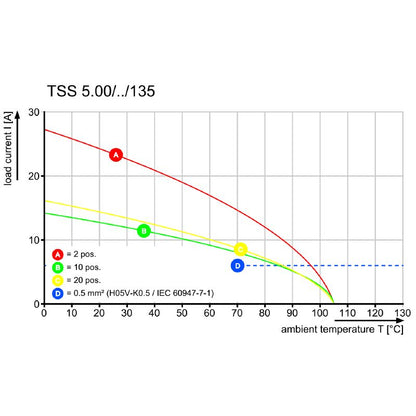

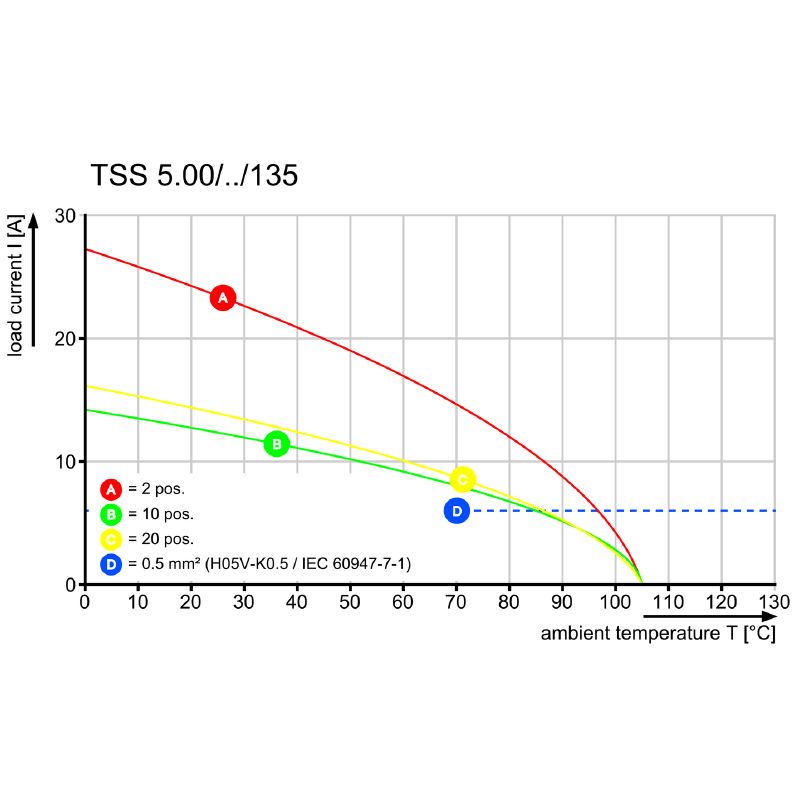

| Rated Voltage (IEC) | 630 V |
| Rated Current (IEC) | 20 A |
| Clamping Range (min) | 0.2 mm² |
| Clamping Range (max) | 2.5 mm² |
| Wire Connection Method | Clamping yoke connection |
| Number of Poles | 8 |

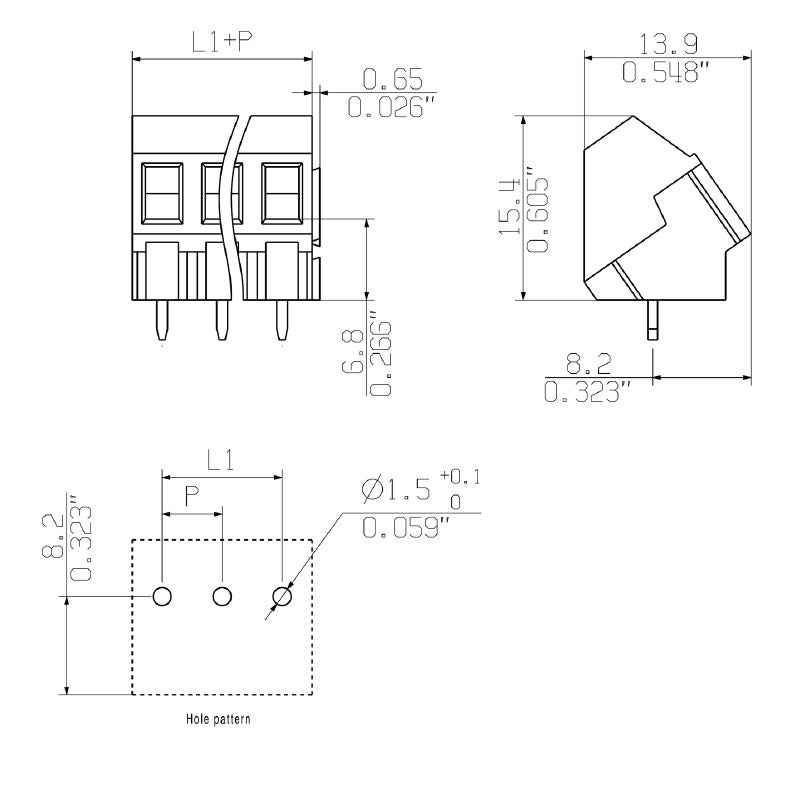

| Solder Pin Dimensions | 0.8 x 0.9 mm |
| Solder Eyelet Hole Diameter | 1.5 mm |
| Insulating Material | PA |
| Flammability Rating | V-0 |
| Storage Temperature (min) | -40 °C |
| Storage Temperature (max) | 70 °C |
| Operating Temperature (max) | 105 °C |
