Description:
Ensure dependable wire connections with the TMS 500/18/90 30SN GN BX This component adheres to RoHS standards and is equipped with a durable clamping yoke connection method, specifically designed for standard PCB mounting applications With 18 poles, it accommodates a versatile range of wire sizes from AWG 30 to AWG 12, making it a reliable choice for various projects.
Features and Benefits:
•Compliant with RoHS and includes exemptions.
•Suitable for various conductor cross-sections from 0.2 to 2.5 mm².
•IP20 protection rating.
•Utilizes clamping yoke connections for easy installation.
•Constructed using PA insulating material for durability.
Specifications:
| Rated Voltage (IEC) | 320 V |

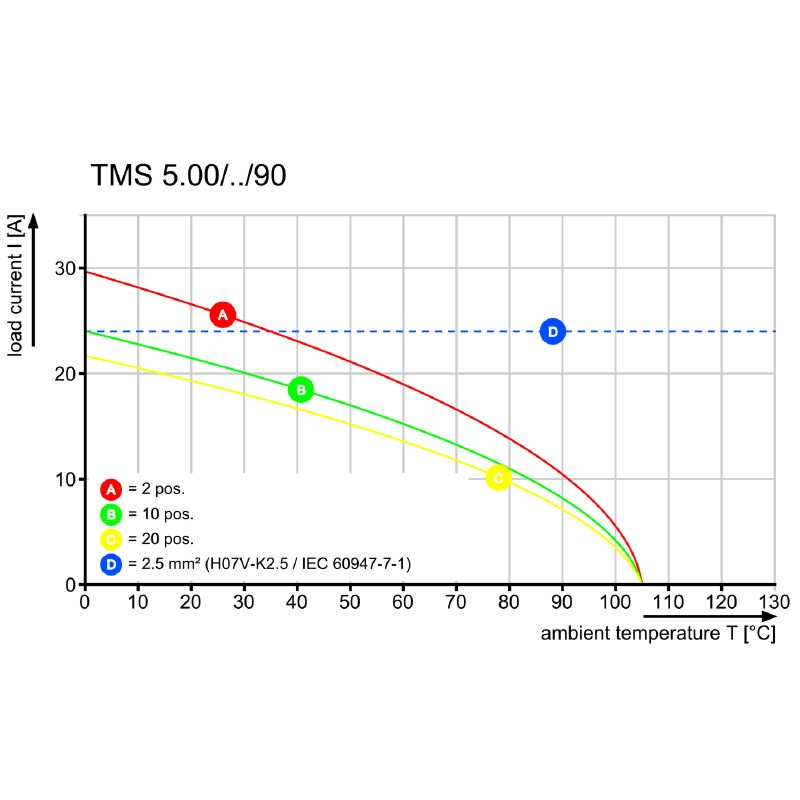

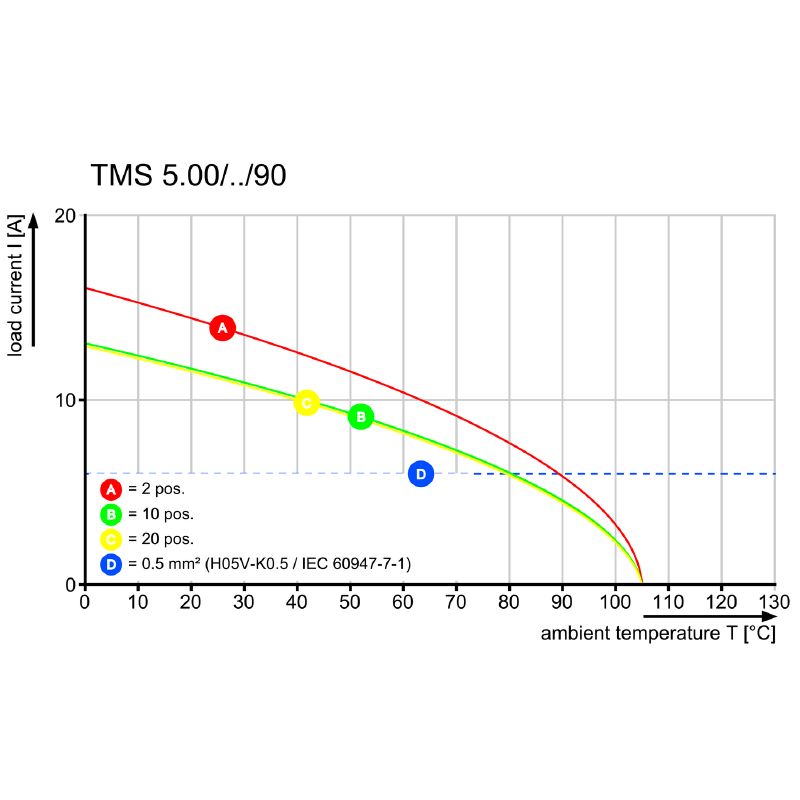

| Rated Current | 15 A |
| Number of Poles | 18 |

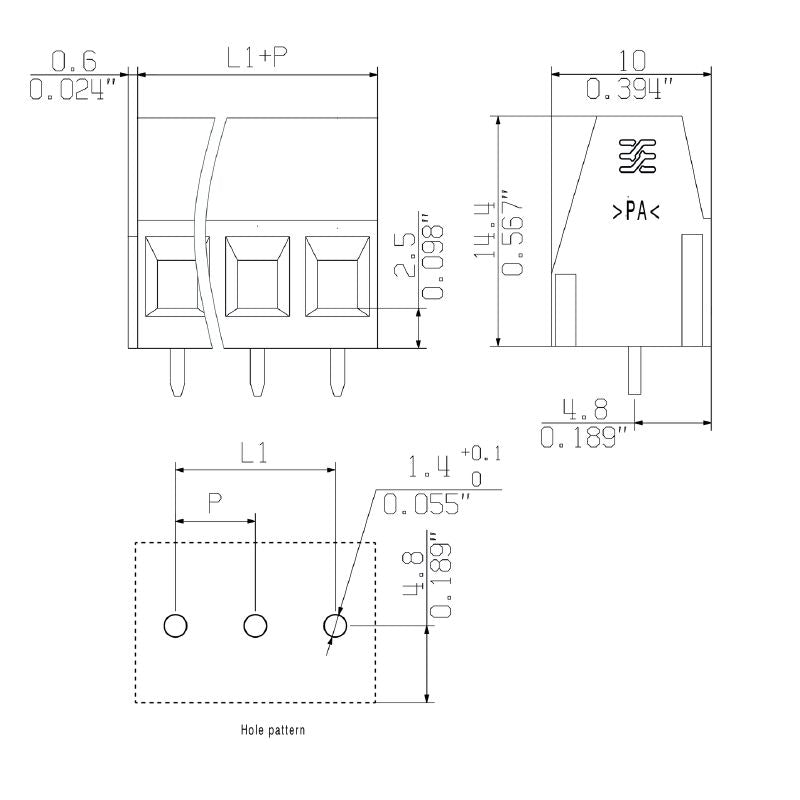

| Pitch | 5 mm |
| Mounting Type | THT solder connection |
| Protection Degree | IP20 |
| Insulation Material | PA |
| UL Flammability Rating | V-0 |
| Storing Temperature Range | -40 °C to 70 °C |
| Operating Temperature Max | 105 °C |
| Solder Pin Length | 3 mm |
| Stripping Length | 6 mm |
| Tightening Torque Min | 0.5 Nm |
| Tightening Torque Max | 0.55 Nm |
