Description:

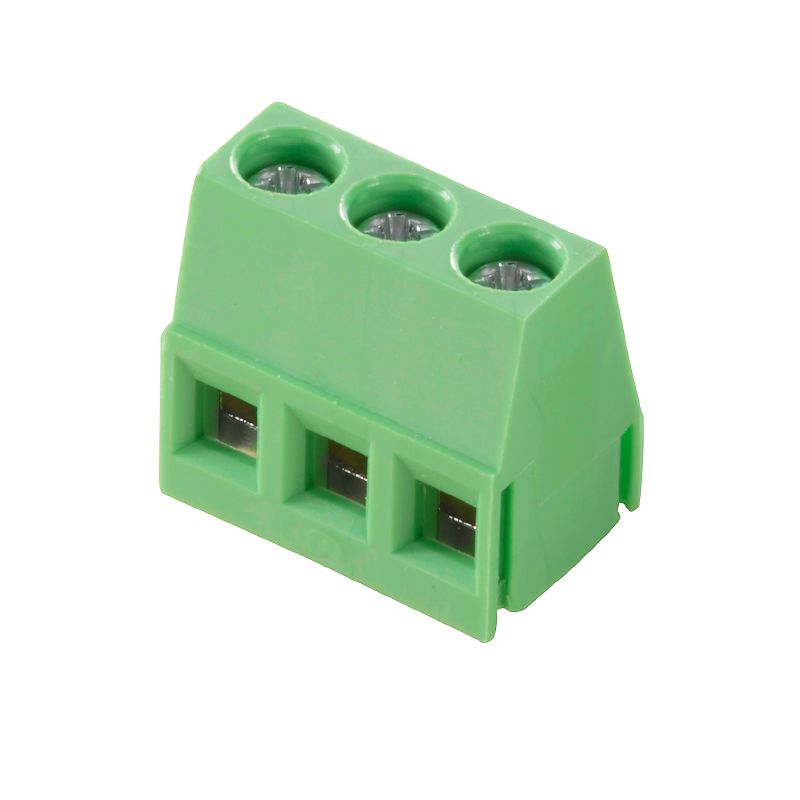

Introducing the TMS 500/10/90 30SN GN BX, an exceptional IEC-compliant device that meets stringent RoHS standards and holds a UL certification (E60693) This product, with the ordering reference 2651030000, is rated for 320 V and 15 A, making it versatile for various applications It accommodates wire sizes ranging from 02 to 25 mm², or AWG 30 to AWG 12, ensuring compatibility with a broad range of setups.
Housed in a durable box, the product weighs just 103 g and adheres to environmental regulations, carrying the RoHS exemption 6c mark As part of the OMNIMATE basic series, it features a clamping yoke connection designed for THT solder connections on PCBs With a pin direction of 90° and a spacing of 5 mm, this component boasts 10 poles, each with a 3 mm long solder pin for precise connections
Engineered for optimal performance, it has an IP20 protection rating and is constructed with PA insulation, available in an appealing pale green hue.
The rated operational conditions include a maximum storage temperature of 70 °C and an operational temperature range up to 105 °C, ensuring reliability under varying conditions.
Features and Benefits:
•Compliant with exemption for RoHS.
•Compatible only with OMNIMATE basic products.
•Insulating material group I.
•Rated voltage for surge voltage class III/3 at 160 V.
Specifications:
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |
| Conductor outlet direction | 90° |

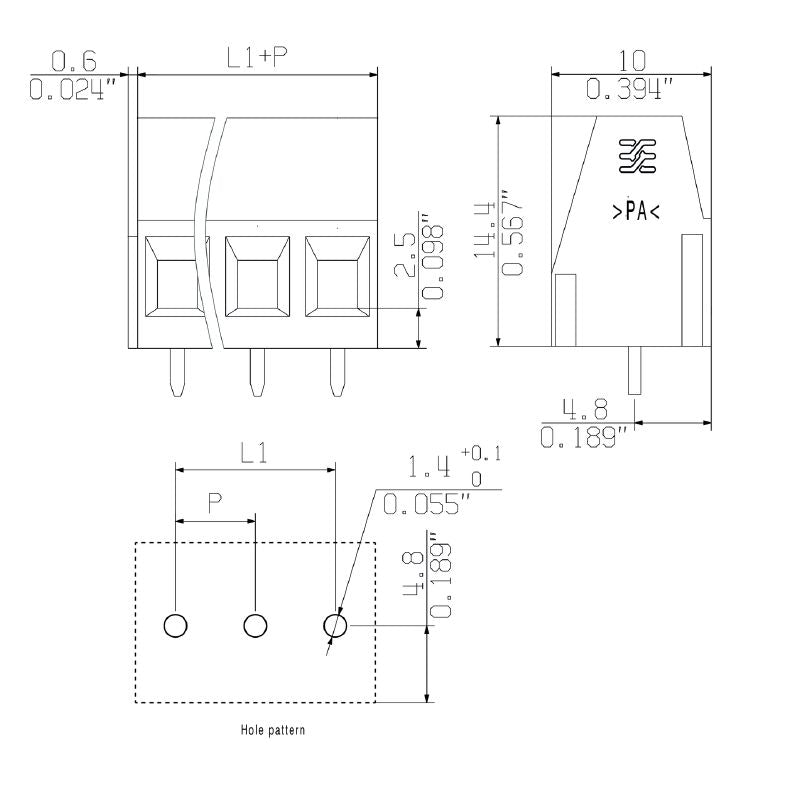

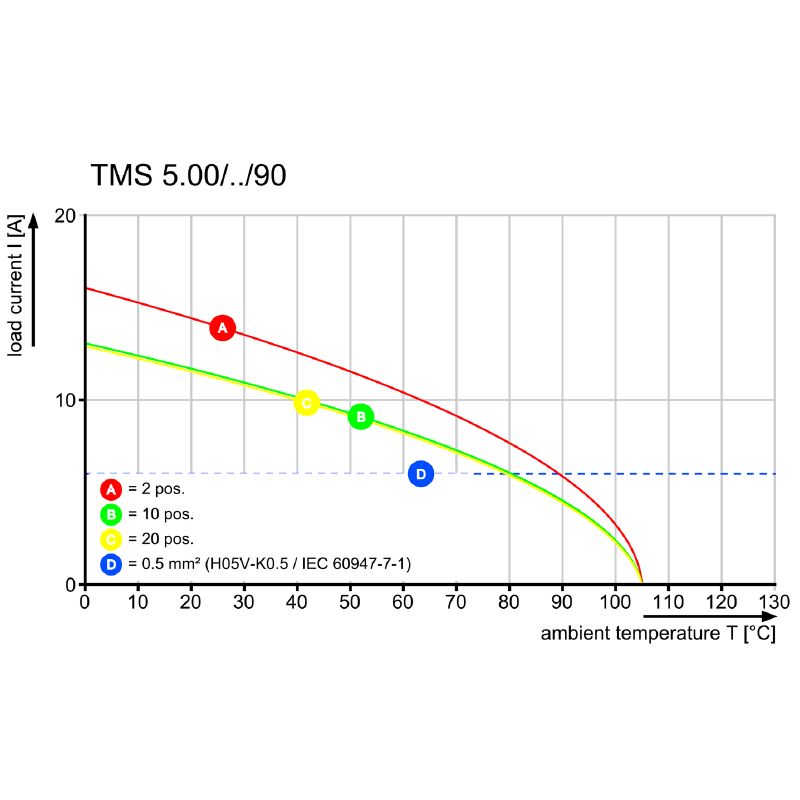

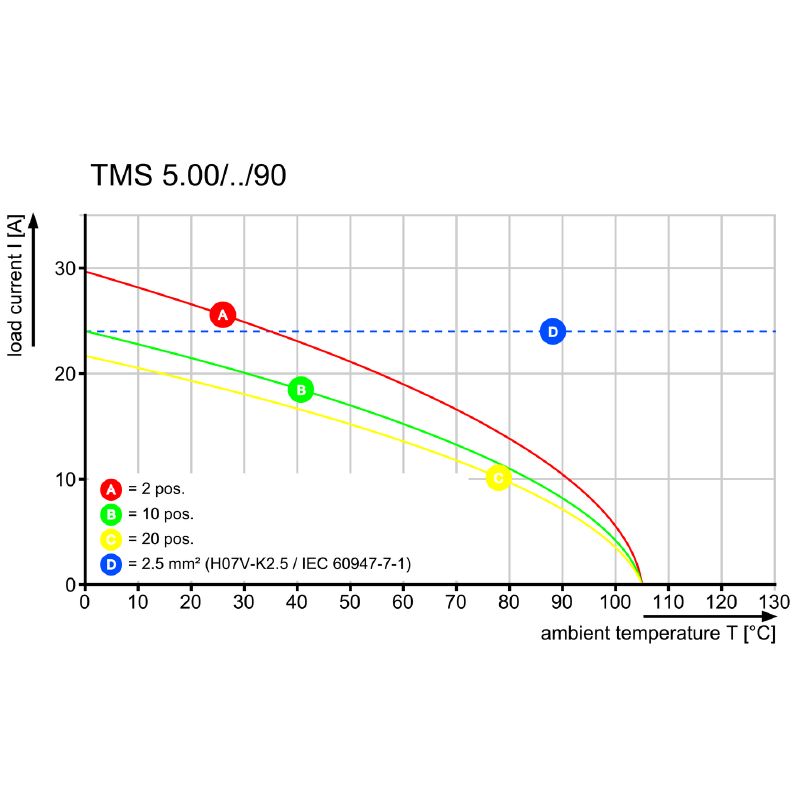

| Pitch in mm (P) | 5 mm |
| Number of poles | 10 |
| Solder pin length (l) | 3 mm |
| Solder pin dimensions | 0.7 x 0.9 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Number of solder pins per pole | 1 |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Clamping screw | M 3 |
| Stripping length | 6 mm |
| Protection degree | IP20 |
| Insulating material | PA |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Contact surface | tinned |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, max. | 105 °C |
| Rated current | 15 A |
| Rated voltage | 300 V |
| Wire cross-section, AWG, min. | AWG 30 |
| Wire cross-section, AWG, max. | AWG 12 |
