Description:

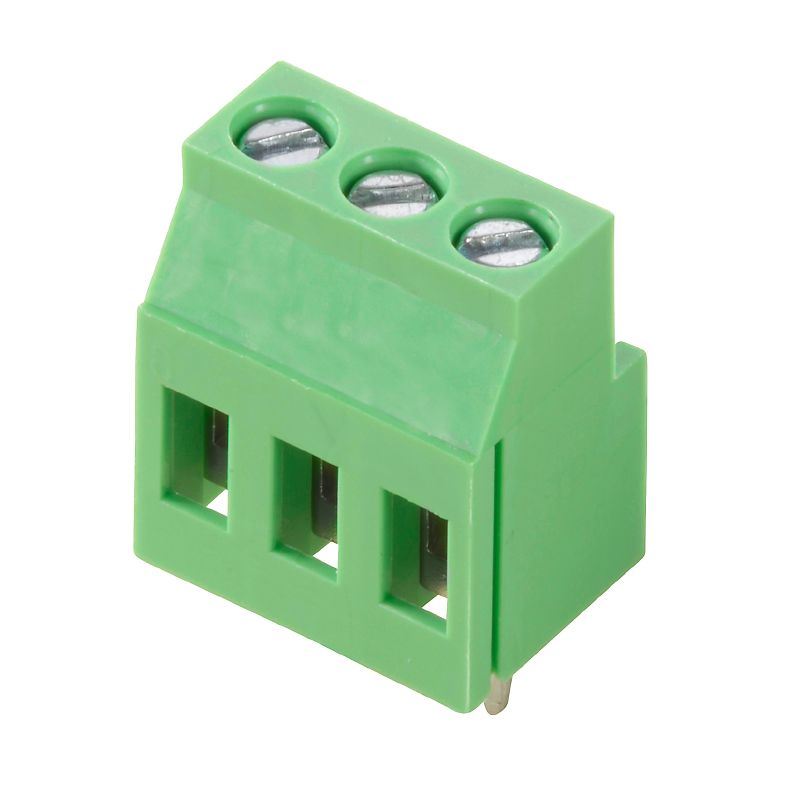

Introducing the TPS 508/19/90 50SN GN BX connector, a reliable choice for your PCB needs This component is compliant with RoHS standards and meets exemption 6c, boasting an UL certification (E60693) for added safety Designed for ease of installation, it features optical clamping yoke connections and is engineered for through-hole (THT) soldering
With a 90-degree pin outlet configuration and a pitch of 5.
08 mm, this connector offers a layout of 19 poles arranged in a single row, each equipped with its own solder pin It is made from PA insulating material in a muted pale green hue, akin to RAL 6021, and carries an IP20 protection rating This connector is suitable for a range of operational and storage temperatures, making it versatile for various applications.
Features and Benefits:
•THT solder connection for easy PCB mounting.
•90° conductor outlet direction.
•Clamping yoke connection method.
•IP20 protection degree.
•Available in a pale green color similar to RAL 6021.
Specifications:
| Rated Voltage (IEC) | 320 V |
| Rated Current (IEC) | 20 A |
| Clamping Range (min) | 0.05 mm² |
| Clamping Range (max) | 4 mm² |
| Wire Connection (AWG min) | AWG 30 |
| Wire Connection (AWG max) | AWG 12 |

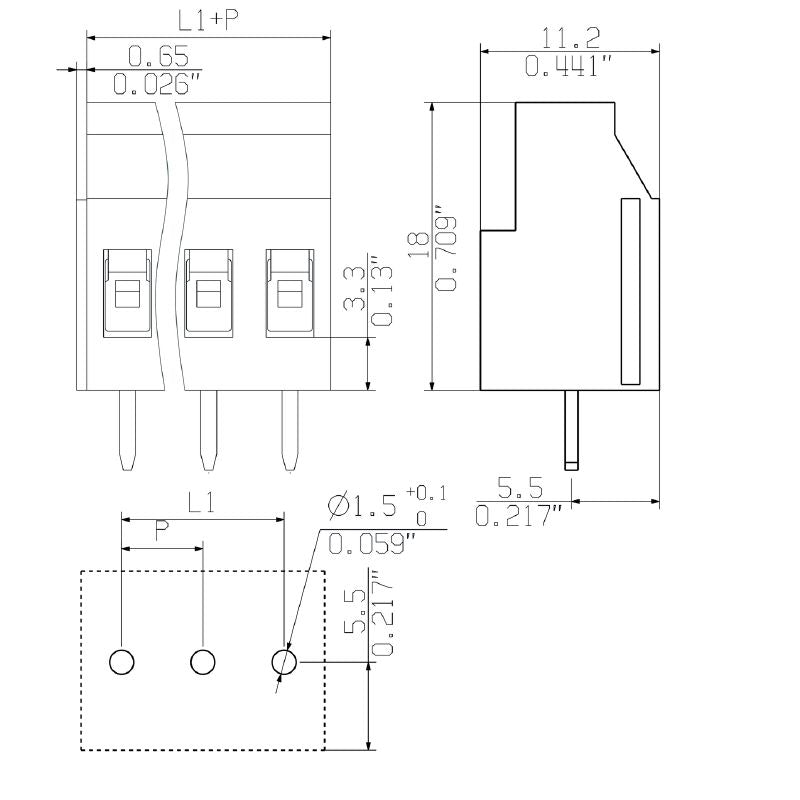

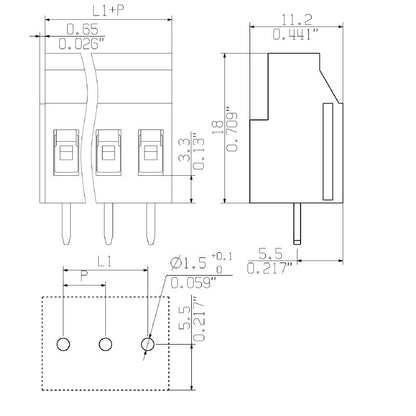

| Solder Pin Length | 5 mm |
| Solder Pin Dimensions | 0.8 x 1.0 mm |
| Number of Poles | 19 |
| Dimensions | 91.44 mm (3.6 in) |
| Insulating Material | PA |
| UL Flammability Rating | V-0 |
| Storage Temperature (min) | -40 °C |
| Storage Temperature (max) | 70 °C |

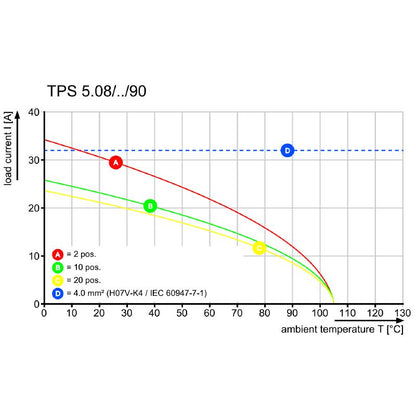

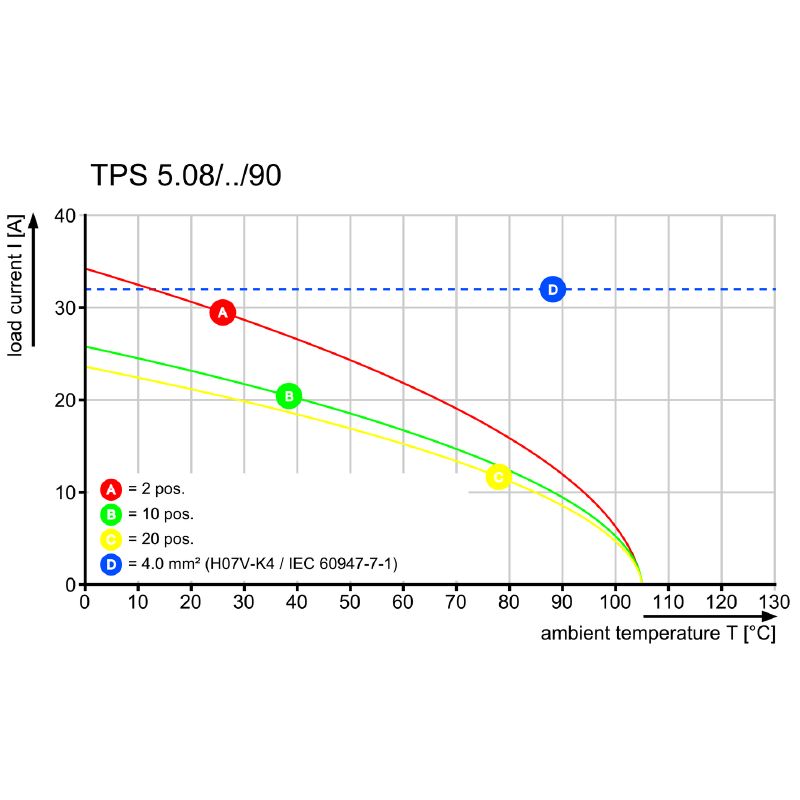

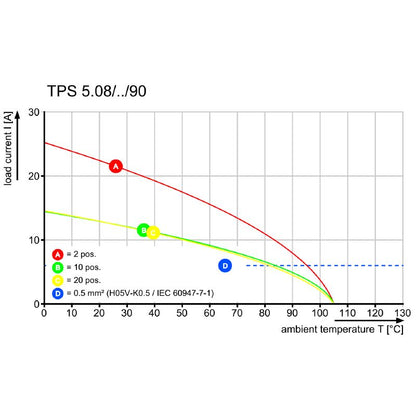

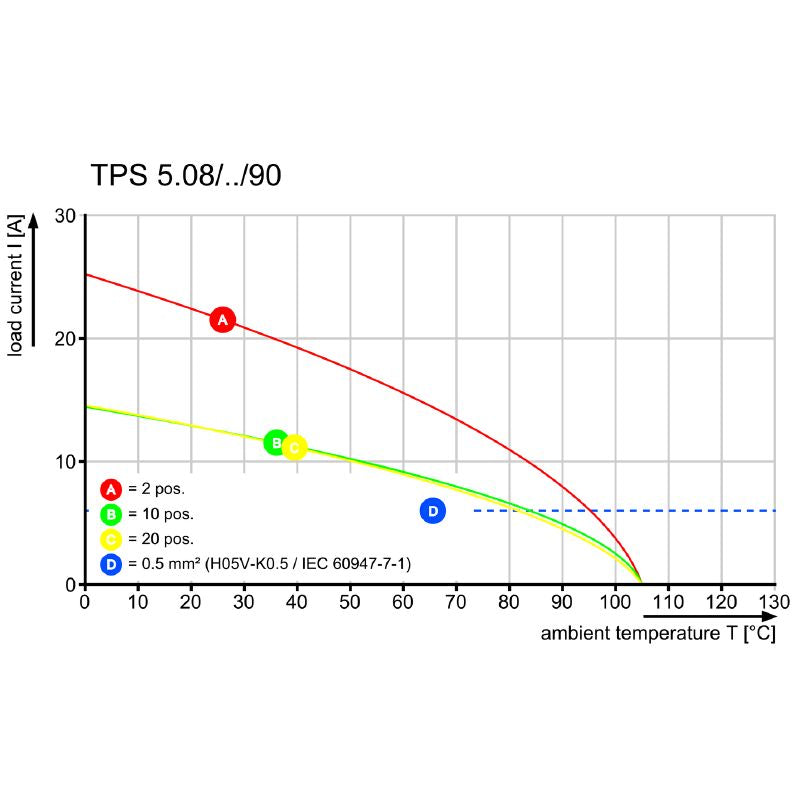

| Operating Temperature (max) | 105 °C |
| Tightening Torque (min) | 0.5 Nm |
| Tightening Torque (max) | 0.55 Nm |
