2651280000 - 16-Pole 135° Terminal Block, 5mm Pitch, IP20 Protection (Pack of 33)
2651280000 - 16-Pole 135° Terminal Block, 5mm Pitch, IP20 Protection (Pack of 33)
SKU: SKU: 2651280000 Download PDF
- 2651280000 - 16-Pole 135° Terminal Block, 5mm Pitch, IP20 Protection (Pack of 33)
- 2651280000 - 16-Pole 135° Terminal Block, 5mm Pitch, IP20 Protection (Pack of 33)
Couldn't load pickup availability
Description:

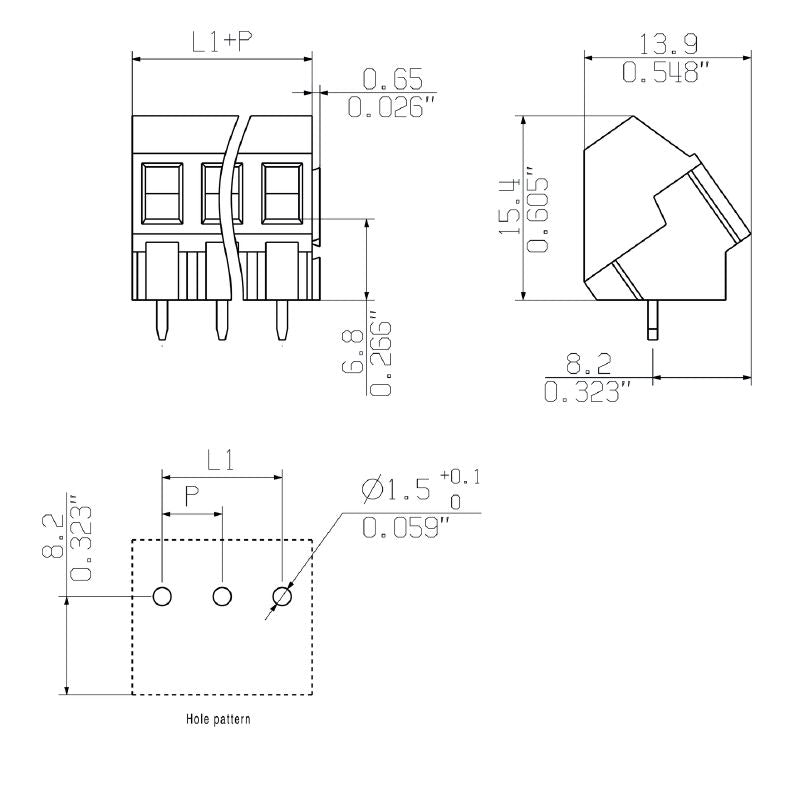

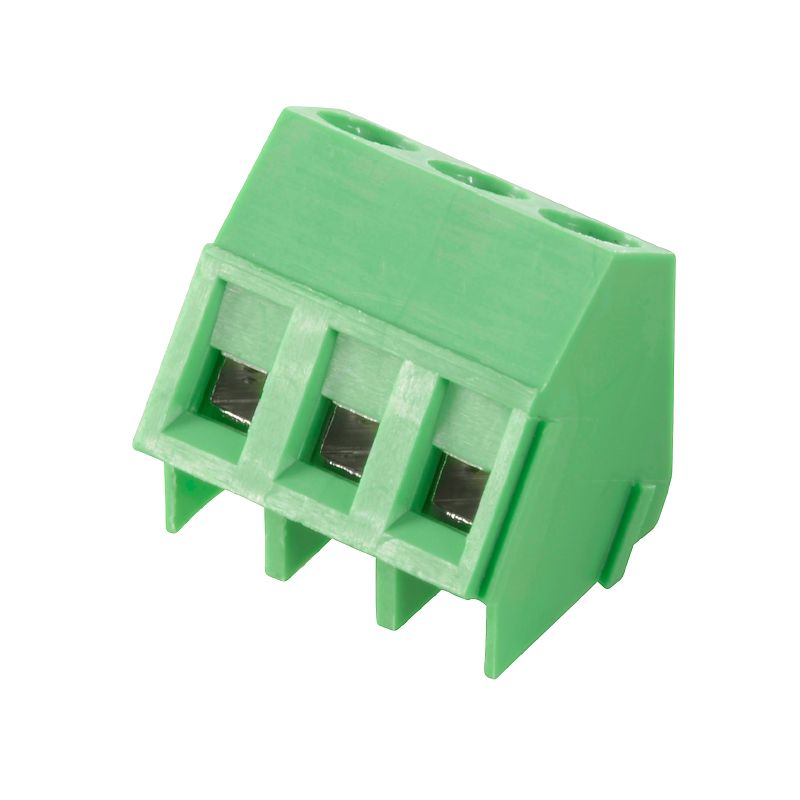

Experience reliable connectivity with the TSS 500/16/135 33SN GN BX terminal block Featuring a robust clamping yoke connection, this component utilizes THT solder for seamless mounting onto PCBs With a conductor outlet angled at 135 degrees and a compact 5 mm pitch, it supports up to 16 poles in a single-row layout The solder pins reach a length of 33 mm, with dimensions of 08 mm x 09 mm, complemented by a screw hole diameter of 1.
5 mm Each pole is equipped with a solder pin and utilizes an M3 clamping screw for secure attachment The installation requires a minimum stripping length of 75 mm, and detailed length measurements are available in inches Designed to meet a protection degree of IP20, this terminal block is made from durable PA insulating material, presented in a pale green hue in accordance with RAL 6021 standards It is rated for a specific voltage and current range, ensuring optimal functionality for your electronic projects.
Features and Benefits:
•Compatible with OMNIMATE basic products.
•Meets RoHS compliance with exemptions.
•Clamping range accommodates a wide variety of wire sizes.
Specifications:
| Rated voltage (IEC) | 630 V |

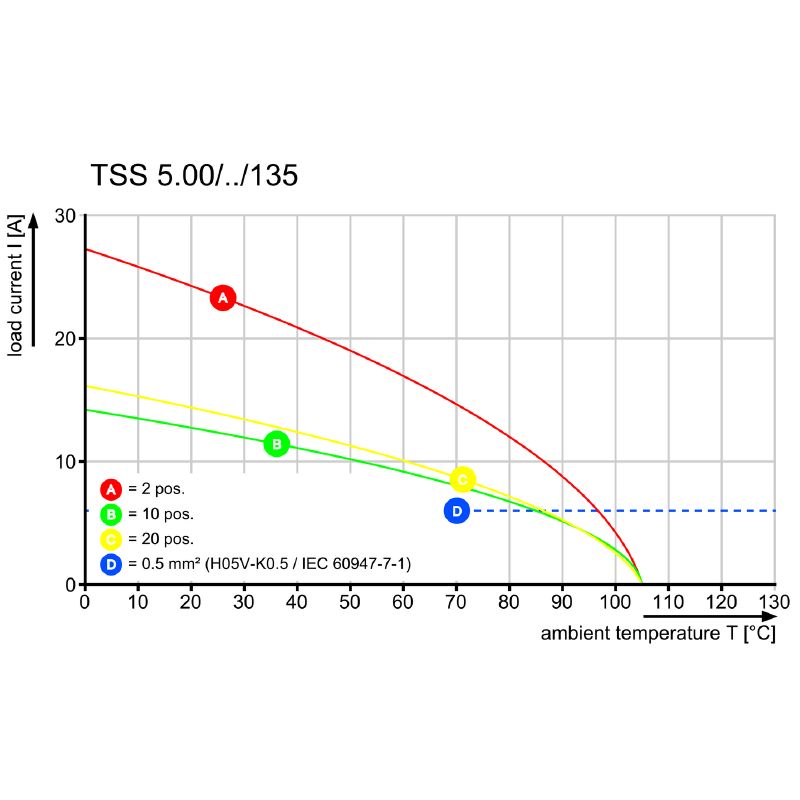

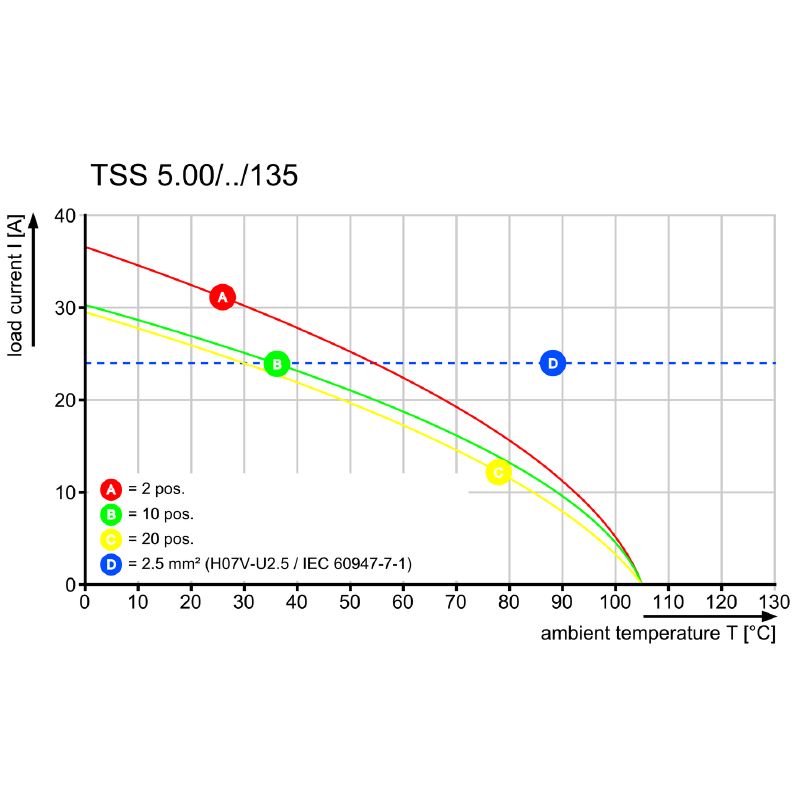

| Rated current (IEC) | 20 A |
| Clamping range (min) | 0.2 mm² |
| Clamping range (max) | 2.5 mm² |
| Screwdriver blade | 0.6 x 3.5 |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.55 Nm |
| Protection degree | IP20 |
| Material | Cu-alloy |
| UL file number | E60693 |
| Insulating material | PA |
| Operating temperature (max) | 105 °C |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
