2651930000 - 5-Pole 5.08mm PCB Terminal Block with 90° Outlet (Pack of 152)
2651930000 - 5-Pole 5.08mm PCB Terminal Block with 90° Outlet (Pack of 152)
SKU: SKU: 2651930000 Download PDF
- 2651930000 - 5-Pole 5.08mm PCB Terminal Block with 90° Outlet (Pack of 152)
- 2651930000 - 5-Pole 5.08mm PCB Terminal Block with 90° Outlet (Pack of 152)
Couldn't load pickup availability
Description:

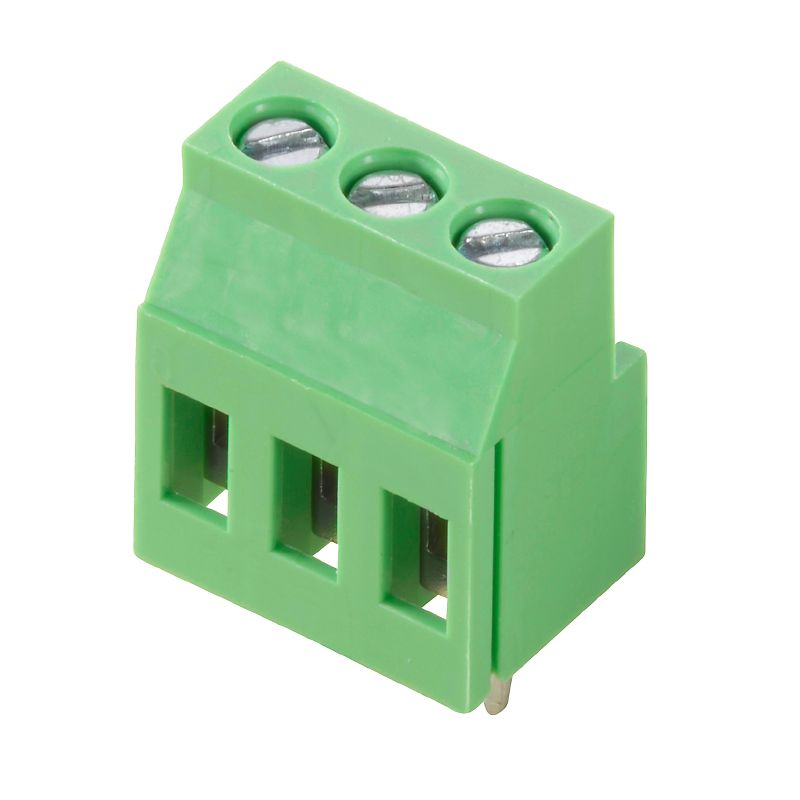

Introducing the TPS 508/05/90 50SN GN BX terminal block, engineered for versatile applications This component is compliant with ROHS standards and features UL certification (file number E60693) With a practical clamping yoke connection method, it easily mounts onto the PCB via THT soldering The terminal block is designed to provide a 90-degree conductor outlet direction and accommodates a pitch of 5.
08 mm (02 inches) Featuring a single-row design with five poles, it includes an M3 clamping screw that requires a tightening torque range of 05 to 055 Nm for optimal performance.
Features and Benefits:
•Insulating material is PA.
•Insulation group is I.
•UL 94 flammability rating is V-0.
•Contact material is copper alloy with a tinned surface.
Specifications:
| IEC Voltage/Current Rating | 320 V / 20 A / 0.05 - 4 mm² |
| UL Voltage/Current Rating | 300 V / 15 A / AWG 30 - AWG 12 |
| Number of poles | 5 |
| Pitch | 5.08 mm |
| Protection degree | IP20 |
| Storage temperature min | -40 °C |
| Storage temperature max | 70 °C |
| Operating temperature max | 105 °C |
| Screwdriver blade size | 0.6 x 3.5 |
