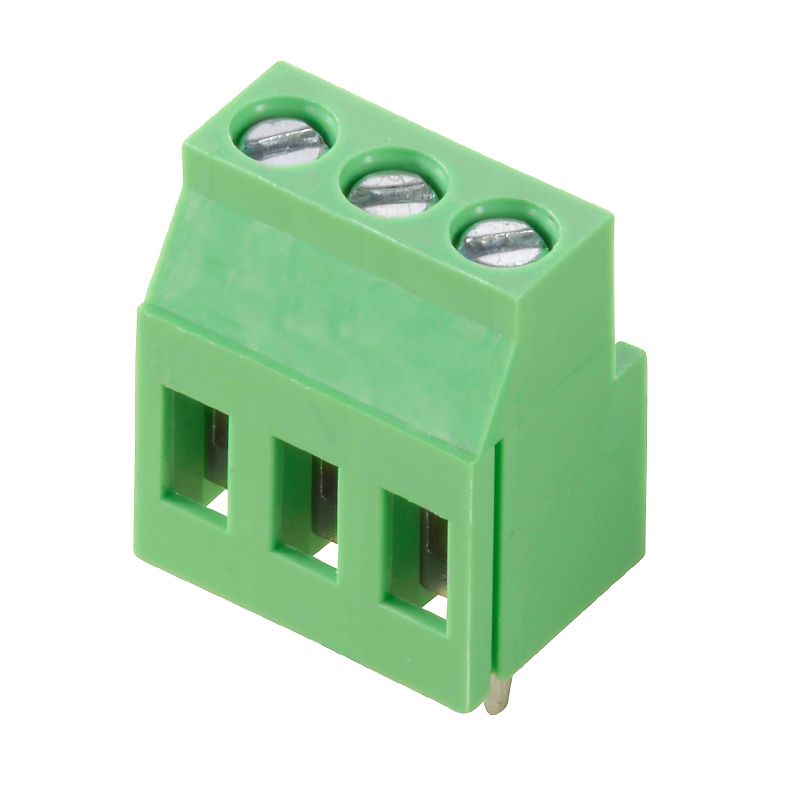

2652040000 - 16-Pole 5.08mm PCB Terminal Block with 90° Wire Outlet (Pack of 40)
2652040000 - 16-Pole 5.08mm PCB Terminal Block with 90° Wire Outlet (Pack of 40)
SKU: SKU: 2652040000 Download PDF
- 2652040000 - 16-Pole 5.08mm PCB Terminal Block with 90° Wire Outlet (Pack of 40)
- 2652040000 - 16-Pole 5.08mm PCB Terminal Block with 90° Wire Outlet (Pack of 40)
Couldn't load pickup availability
Description:
Introducing the OMNIMATE basic series terminal block, engineered for efficient wire connections through its reliable clamping yoke design This component is optimized for printed circuit board (PCB) installation using a THT soldering method, with a convenient 90-degree conductor outlet orientation
Accommodating a pitch of 508 mm (02 inches), this terminal block features 16 poles, each with a single pin, and is equipped with 5 mm long solder pins.
It can handle wire sizes up to AWG 12, making it versatile for various applications Crafted from durable PA material, the insulation boasts a V-0 flammability rating, ensuring safety and performance Additionally, this product meets critical environmental guidelines, including RoHS and REACH compliance.
Features and Benefits:
•Compact design suitable for THT solder connection.
•90-degree conductor outlet direction for efficient space management.
•71.2 g net weight for ease of installation.
•Material compliance to environmental standards such as RoHS.
•Compatible with OMNIMATE basic products.
Specifications:

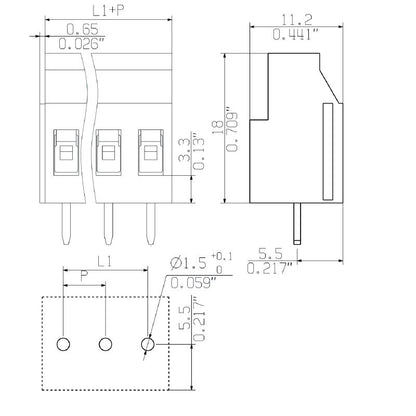

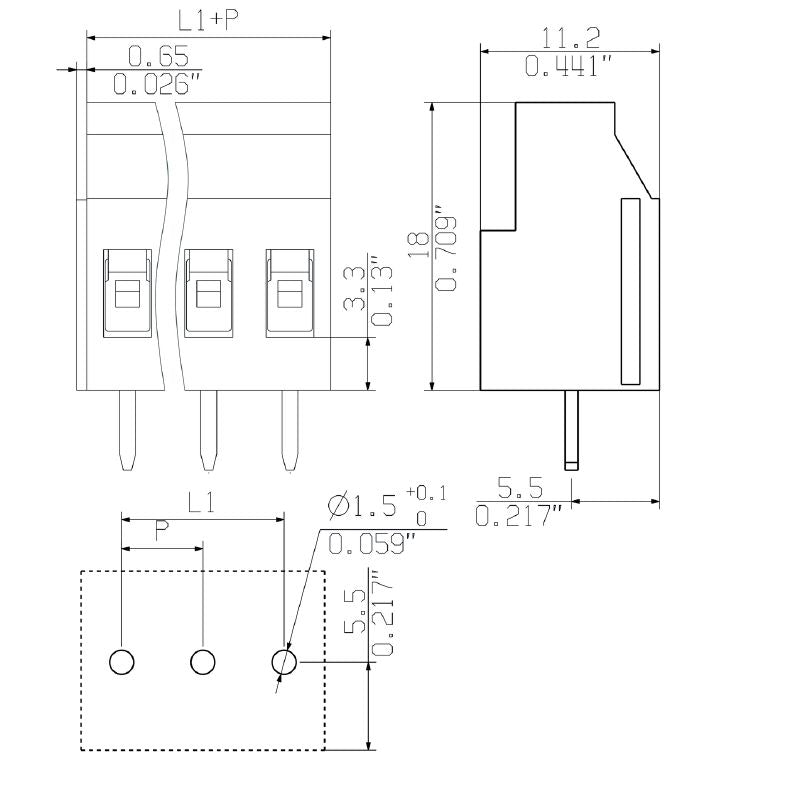

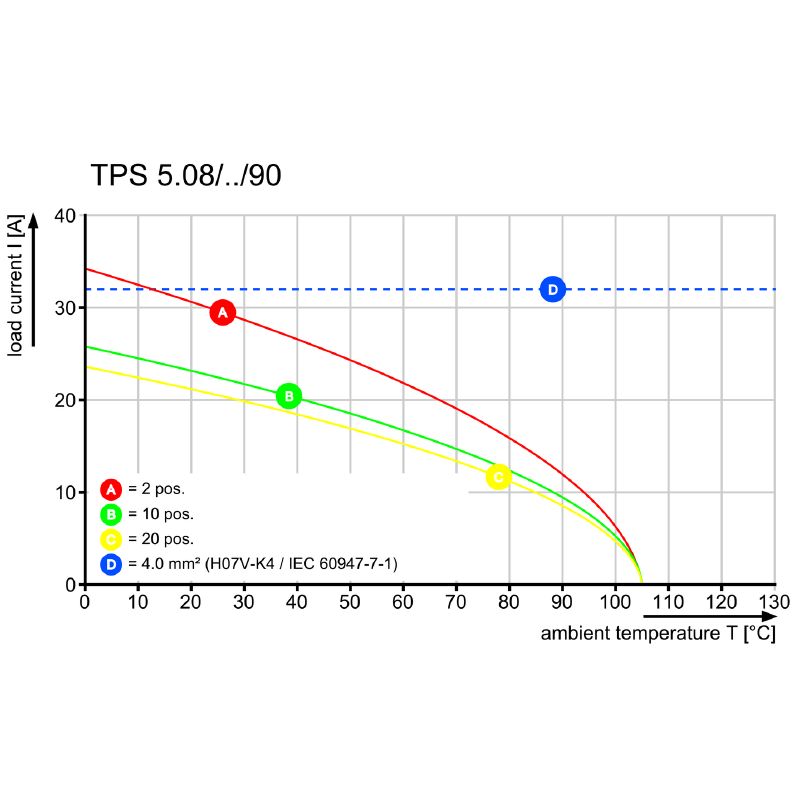

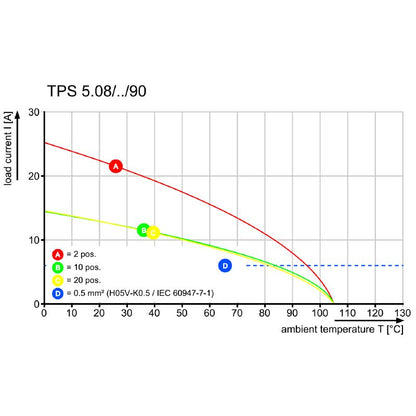

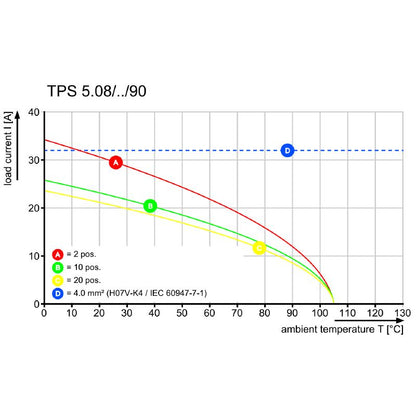

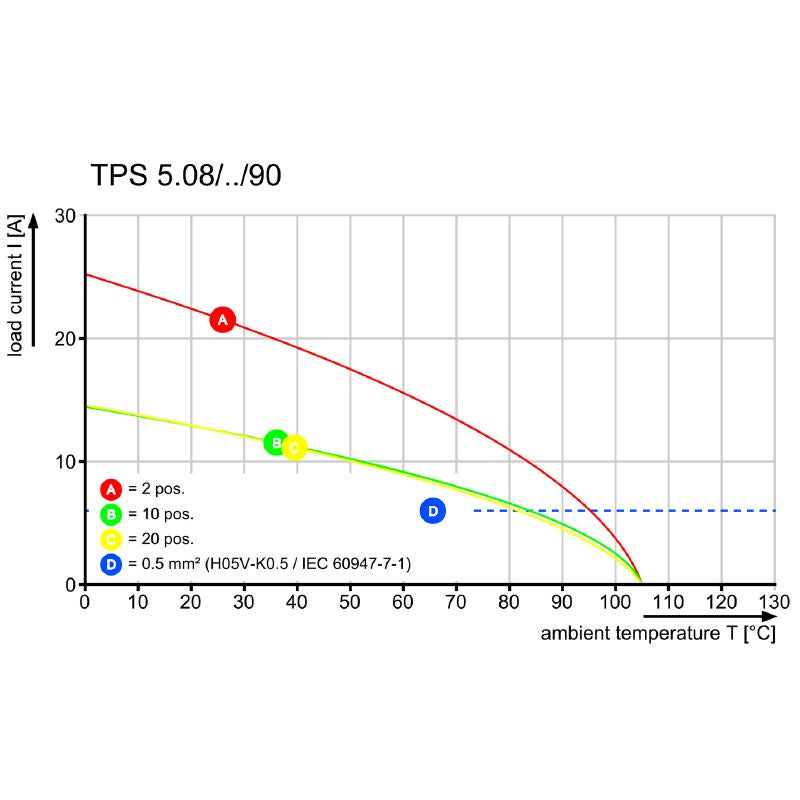

| Product family | OMNIMATE basic – Series TPS |
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |
| Pitch in mm (P) | 5.08 mm |
| Number of poles | 16 |
| Solder pin length (l) | 5 mm |
| Protection degree | IP20 |
| Insulating material | PA |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Rated current, min. | 20 A |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 15 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Clamping range, min. | 0.2 mm² |
| Clamping range, max. | 4 mm² |
| Stored temperature, min. | -40 °C |
| Stored temperature, max. | 70 °C |
| Operating temperature, max. | 105 °C |
