2651910000 - Durable Terminal Block for 320V, 150 Pieces, RoHS Compliant (Pack of 150)
2651910000 - Durable Terminal Block for 320V, 150 Pieces, RoHS Compliant (Pack of 150)
SKU: SKU: 2651910000 Download PDF
- 2651910000 - Durable Terminal Block for 320V, 150 Pieces, RoHS Compliant (Pack of 150)
- 2651910000 - Durable Terminal Block for 320V, 150 Pieces, RoHS Compliant (Pack of 150)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

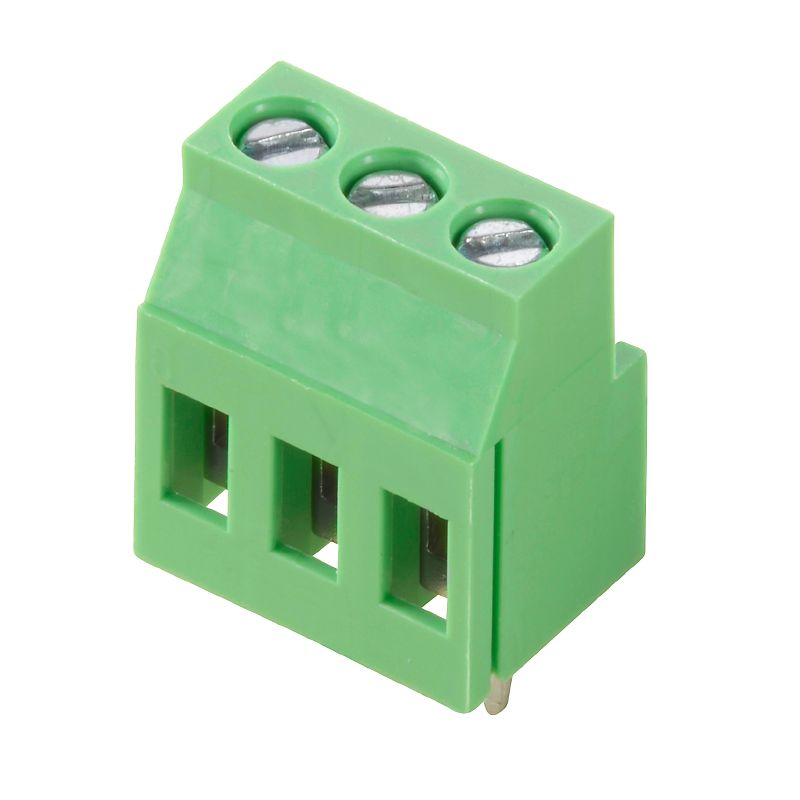

Discover the versatility of this terminal block, designed to accommodate a range of wire sizes Capable of operating under 320 V and 20 A for IEC standards, it also meets UL specifications of 300 V and 15 A Each box contains 150 units, all compliant with RoHS regulations Featuring a reliable clamping yoke connection method, this terminal block is specifically engineered for through-hole (THT) soldering onto printed circuit boards (PCBs).
With a protection rating of IP20, it is constructed from durable materials that meet insulation standards for long-lasting performance.
Features and Benefits:
•Compliant with RoHS and environmental standards.
•Designed for use with OMNIMATE basic products.
•Easy to connect with a clamping yoke method.

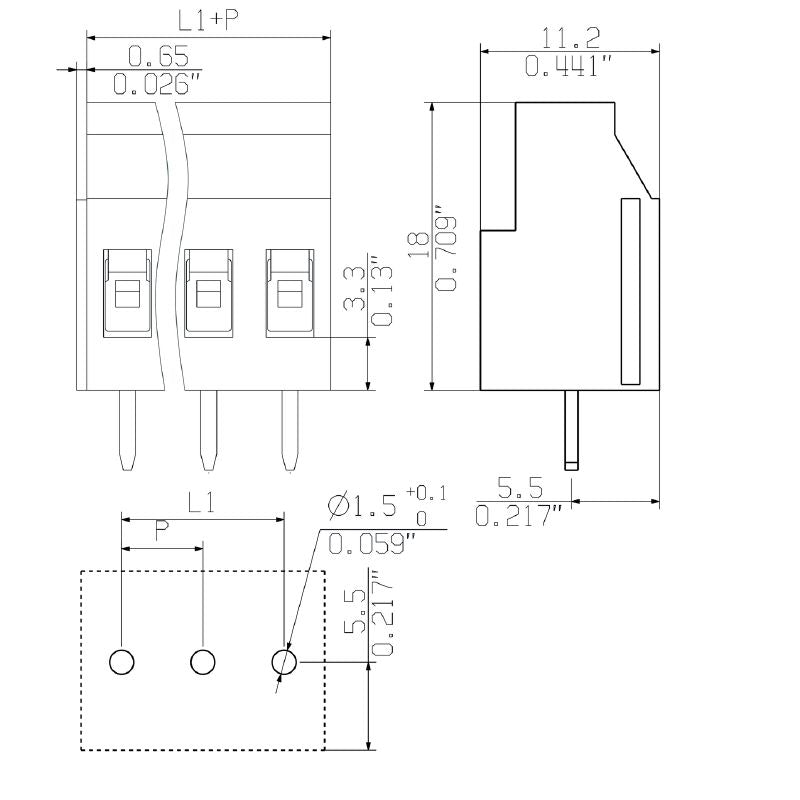

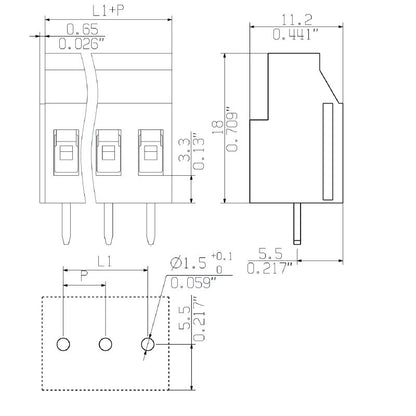

•Compact design with a pitch of 5.08 mm.
•Lightweight at 5.85 g.
Specifications:
| IEC Rated Voltage: | 320 V |
| IEC Rated Current: | 20 A |
| UL Rated Voltage: | 300 V |
| UL Rated Current: | 15 A |
| Number of Poles: | 3 |
| Solder Pin Dimensions: | 0.8 x 1.0 mm |
| Stripping Length: | 8.5 mm |
| Storage Temperature (min): | -40 °C |
| Storage Temperature (max): | 70 °C |
| Operating Temperature (max): | 105 °C |
| Insulating Material: | PA |
| Flammability Rating: | V-0 |
| Protection Degree: | IP20 |
| Clamping Range: | 0.2 mm² to 4 mm² |
