Description:

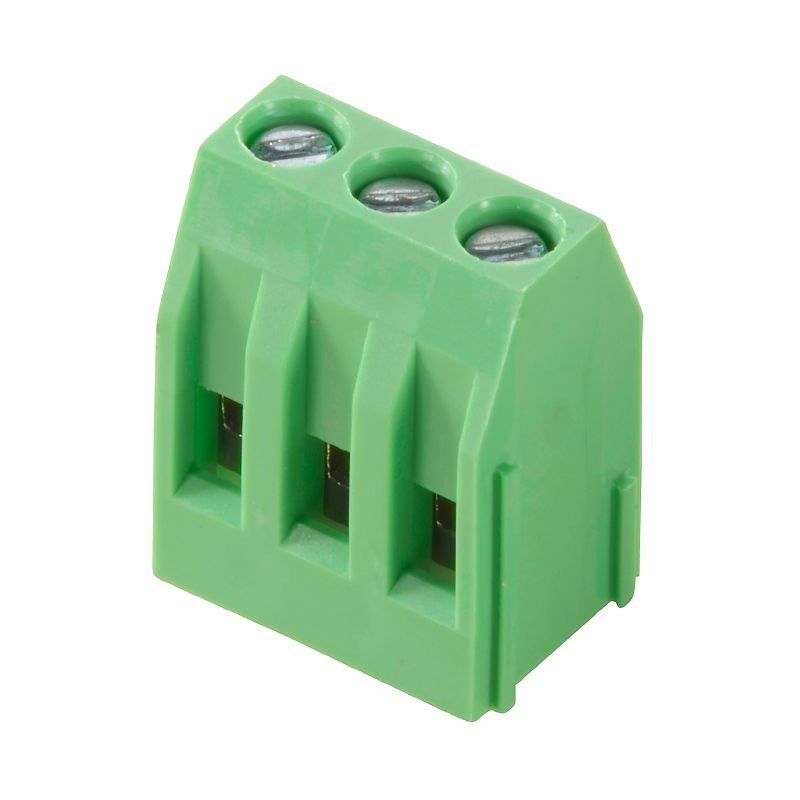

The TPS 500/06/90 35SN GN BX is specifically designed for reliable electrical connections, accommodating wire sizes ranging from 02 to 4 mm² (AWG 30 to 12) It incorporates a clamping yoke mechanism for a stable attachment With a 90° conductor outlet, this component is ideal for Through Hole Technology (THT) soldering on printed circuit boards (PCBs) It supports a current rating of 15 A and a voltage capacity of 320 V in accordance with IEC standards and 300 V for UL standards.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Net weight is 11.7 g.
•IP20 protection degree.
•Operating temperature can range up to 105 °C.
•Made from insulating materials rated V-0 for flammability.
•Color coding aligns with RAL 6021.
Specifications:
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |

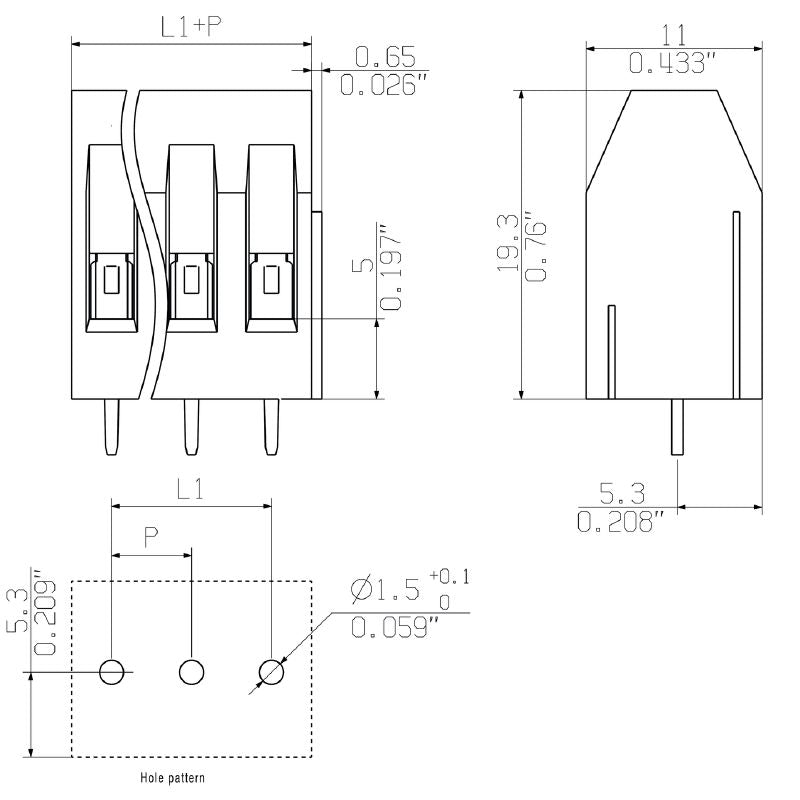

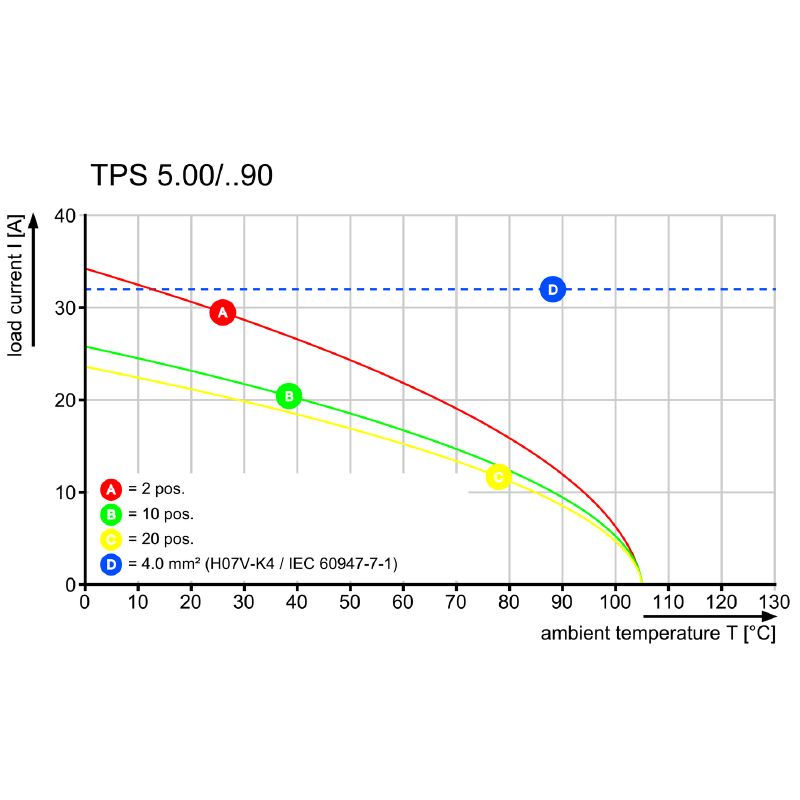

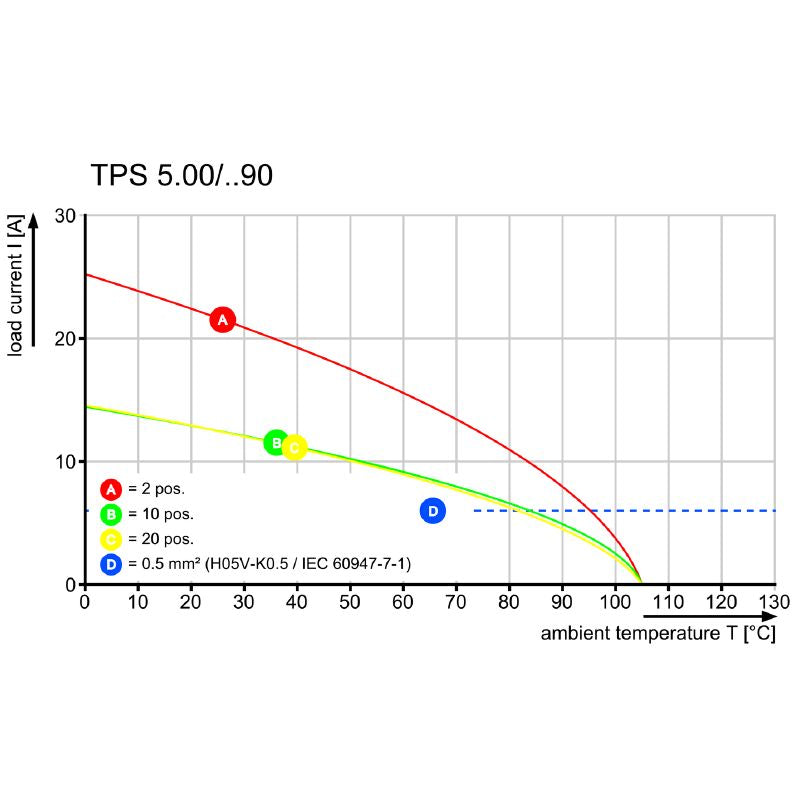

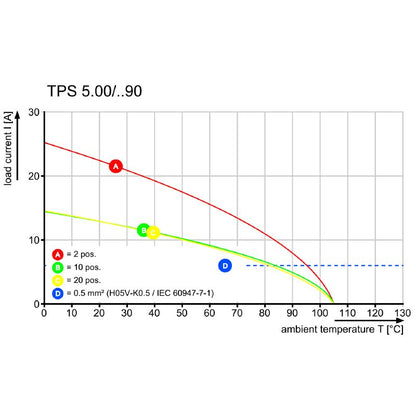

| Pitch in mm (P) | 5 mm |
| Number of poles | 6 |
| Solder pin length (l) | 3.5 mm |
| Stripping length | 6 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Insulating material | PA |
| Contact material | Copper alloy |
| Rated current | 15 A |
| Rated voltage | 300 V |
| Clamping range min. | 0.2 mm² |
| Clamping range max. | 4 mm² |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
