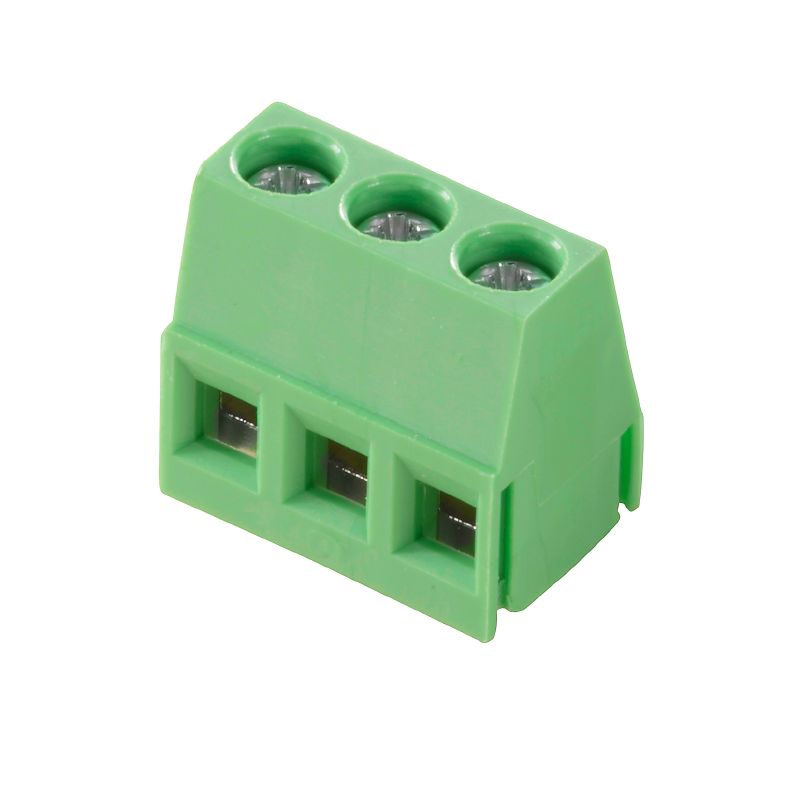

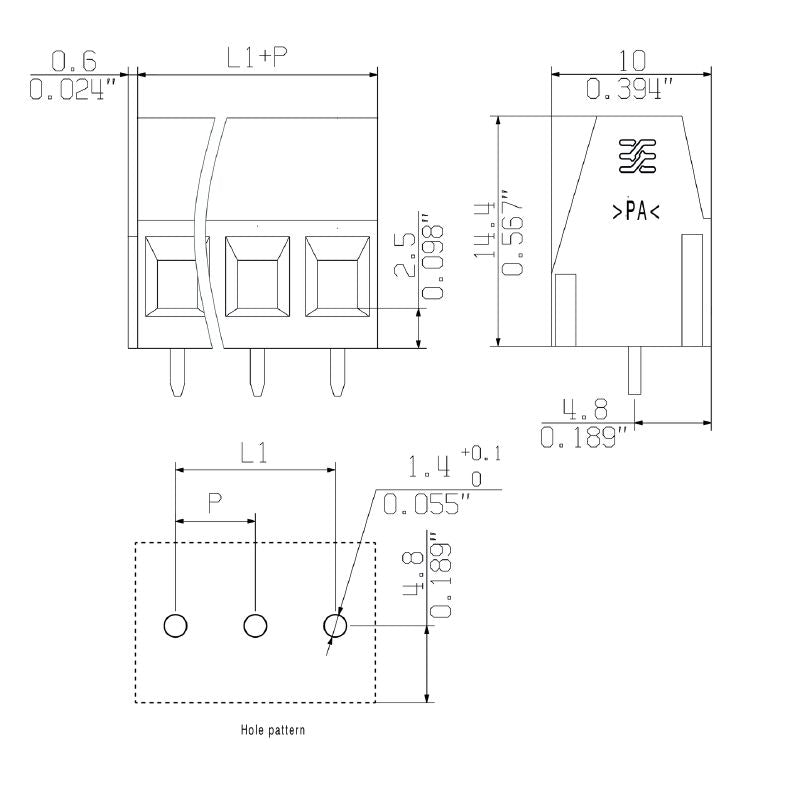

2650960000 - 3-Pole Clamping Yoke Connector, 15A, 5mm Pitch, Pale Green (Pack of 200)
2650960000 - 3-Pole Clamping Yoke Connector, 15A, 5mm Pitch, Pale Green (Pack of 200)
SKU: SKU: 2650960000 Download PDF
- 2650960000 - 3-Pole Clamping Yoke Connector, 15A, 5mm Pitch, Pale Green (Pack of 200)
- 2650960000 - 3-Pole Clamping Yoke Connector, 15A, 5mm Pitch, Pale Green (Pack of 200)
Couldn't load pickup availability
Description:
Introducing the TMS 500/03/90 30SN GN BX connector, designed to meet a variety of standards, including RoHS compliance This connector features a clamping yoke connection, making wire installations efficient and reliable Capable of accommodating wire cross-sections ranging from 02 mm² to 25 mm², it is rated for a maximum of 15 A at 320 V
The mounting method includes a THT solder connection for seamless integration onto PCBs.
With a pin series quantity of 1 and a configuration of three poles, this connector has a pitch measurement of 5 mm Torque adjustments can be made easily via the clamping screw, with settings between 05 Nm and 055 Nm Crafted from PA insulating material, its aesthetic is enhanced by a pale green color, reminiscent of RAL 6021.
Features and Benefits:
•Clamping yoke connection method.
•IP20 protection degree.
•UL 94 flammability rating of V-0.
•Storage temperature range from -40 °C to 70 °C.
•Compatible with OMNIMATE basic products.

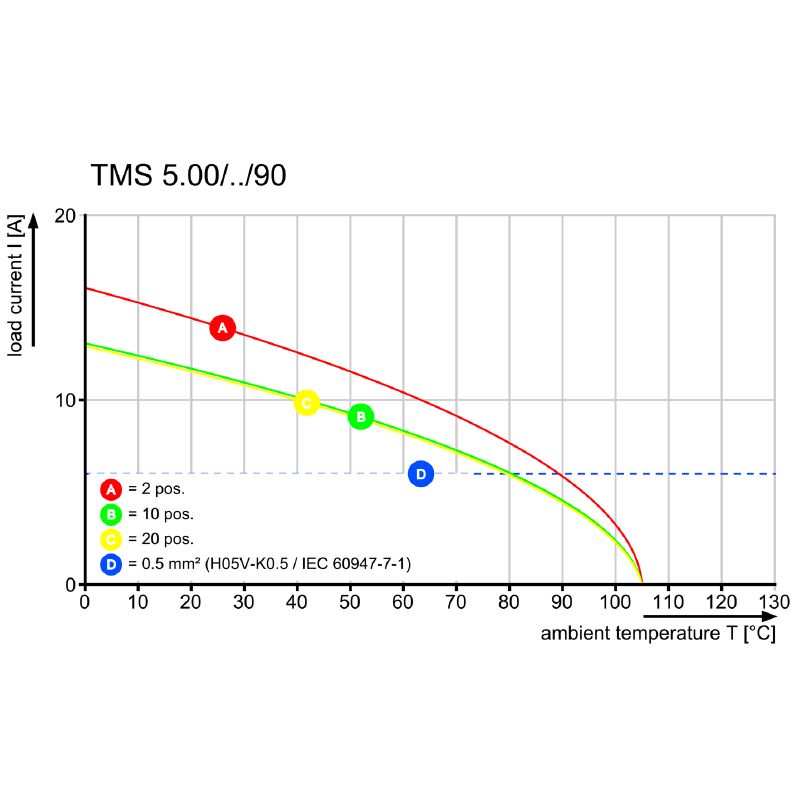

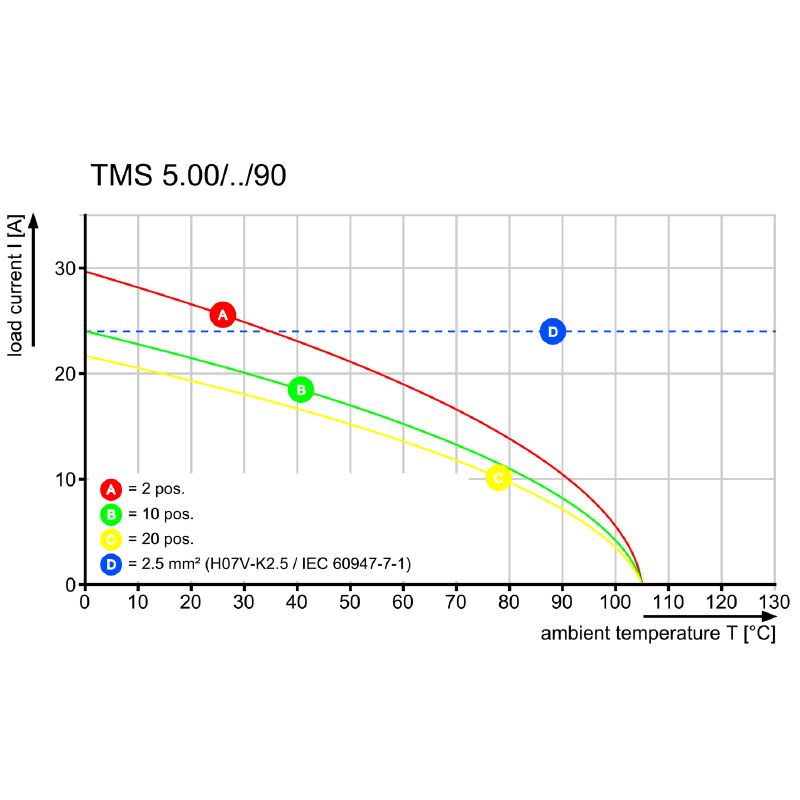

Specifications:
| Rated current | 15 A |
| Rated voltage | 300 V |
| Number of poles | 3 |
| Conductor outlet direction | 90° |
| Pitch in mm | 5 mm |
| Solder pin length | 3 mm |
| Solder pin dimensions | 0.7 x 0.9 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Stripping length | 6 mm |
| Insulating material | PA |
| Contact material | Copper alloy |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, max. | 105 °C |
