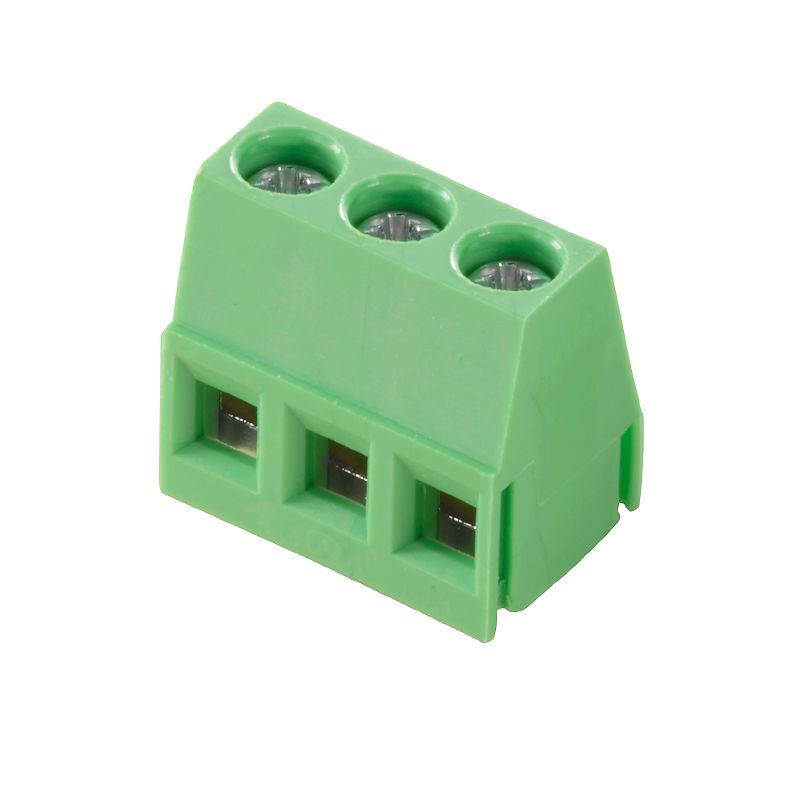

2651020000 - RoHS Compliant Clamping Yoke for 0.2-2.5 mm² Wire (Pack of 96)
2651020000 - RoHS Compliant Clamping Yoke for 0.2-2.5 mm² Wire (Pack of 96)
SKU: SKU: 2651020000 Download PDF
Select a Variant:
- 2651020000 - RoHS Compliant Clamping Yoke for 0.2-2.5 mm² Wire (Pack of 96)
- 2651020000 - RoHS Compliant Clamping Yoke for 0.2-2.5 mm² Wire (Pack of 96)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing the TMS 500/09/90 30SN GN BX, a certified product compliant with RoHS and UL standards This device utilizes a clamping yoke for secure connections and accommodates wire sizes from 02 to 25 mm² Packaged conveniently in boxes, it is engineered to deliver excellent performance for a variety of electrical uses.
Features and Benefits:
•Compliant with RoHS and cURus certification.
•Wire connection via clamping yoke.
•THT solder connection for PCB mounting.
•90° conductor outlet direction.
Specifications:
| Net weight | 9.27 g |
| Protection degree | IP20 |
| Insulating material | PA |
| Colour | Pale green |
| Number of poles | 9 |
| Rated current | 15 A |
| Rated voltage | 300 V |
| Storage temperature | -40 °C to 70 °C |
| Operating temperature | 105 °C |
| Solder pin dimensions | 0.7 x 0.9 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Stripping length | 6 mm |
| Clamping range, min. | 0.2 mm² |
| Clamping range, max. | 2.5 mm² |
