Description:

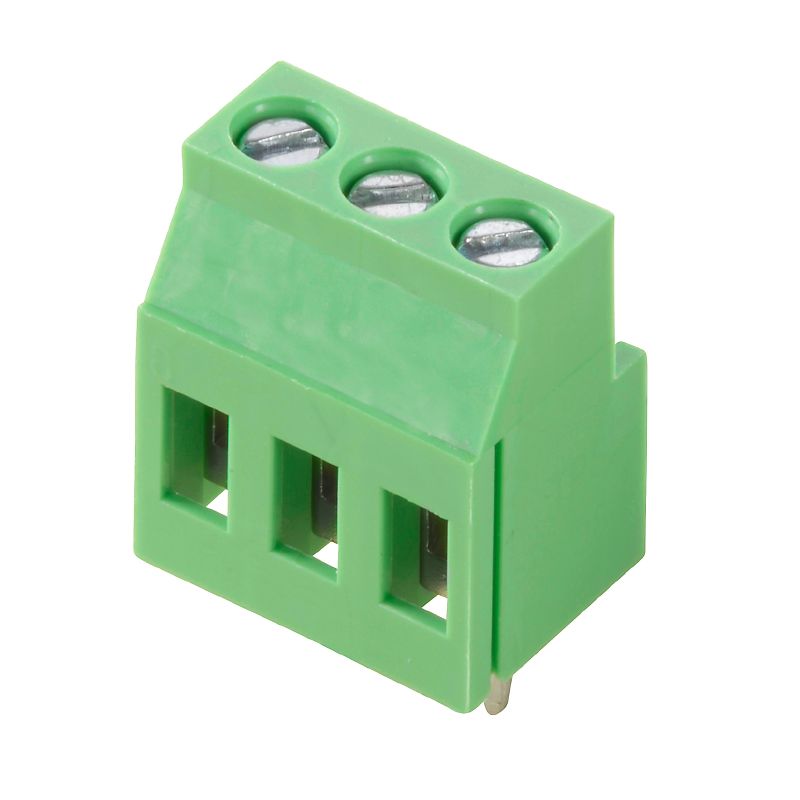

Introducing the TPS 508/07/90 50SN GN BX connector, engineered for dependable electrical connections across various wire types This component is RoHS compliant, demonstrating its adherence to strict environmental standards It features a clamping yoke connection method that guarantees efficient and secure wiring Crafted from PA insulating material, the connector is presented in a subtle pale green hue akin to RAL 6021.
Capable of supporting multiple wire gauges, it accommodates both solid and flexible conductors with ease Its sturdy construction ensures safe and efficient functionality across a myriad of applications.
Features and Benefits:
•RoHS compliant with exemptions.
•Conductors suitable for clamping range between 0.2 mm² and 4 mm².
•IP20 protection degree.
•UL certified with specific voltage and current ratings.
Specifications:
| IEC rated voltage | 320 V |
| IEC rated current | 20 A |
| UL rated voltage | 300 V |
| UL rated current | 15 A |

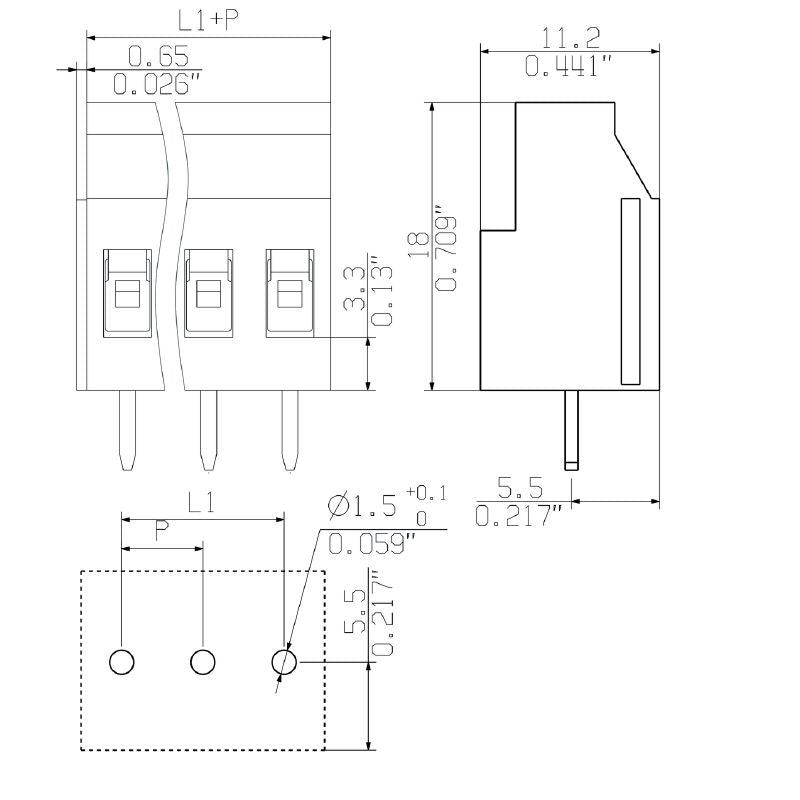

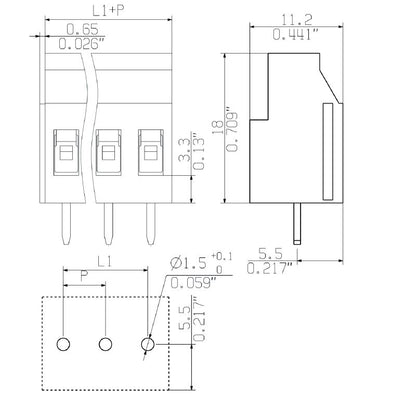

| Pitch | 5.08 mm |
| Number of poles | 7 |
| Solder pin length | 5 mm |
| Insulating material | PA |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.55 Nm |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Operating temperature (max) | 105 °C |
| Color | Pale green |
