2652060000 - 18-Pole 5.08mm Connector with 90° Outlet and THT Solder (Pack of 36)

Description:

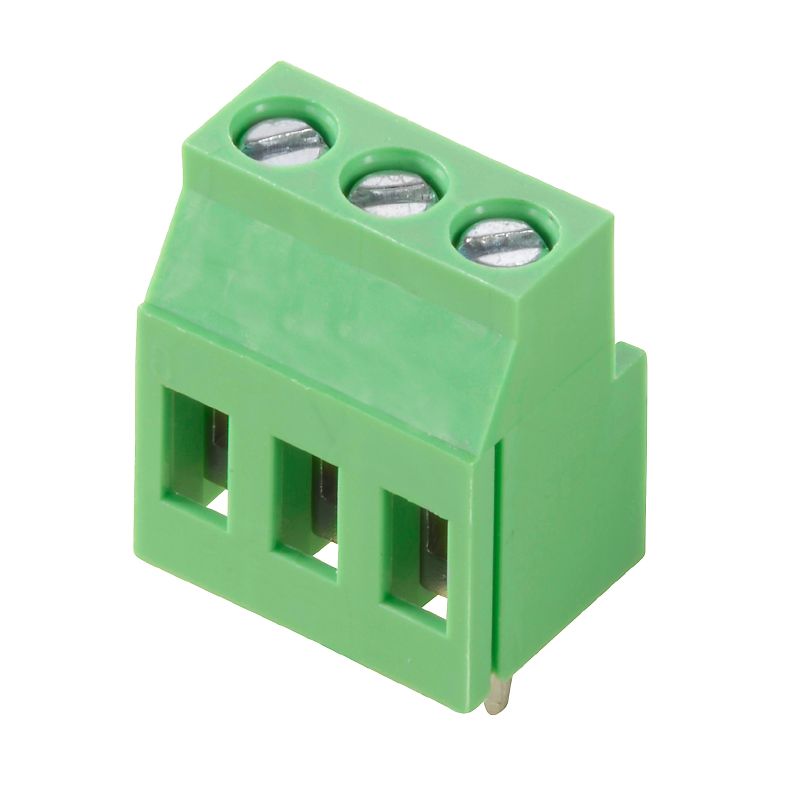

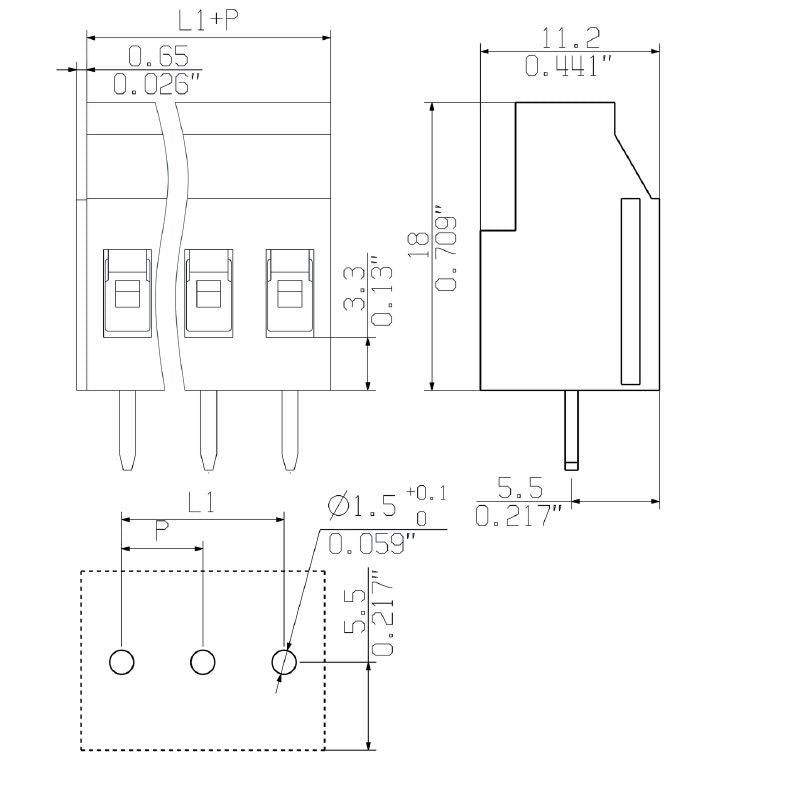

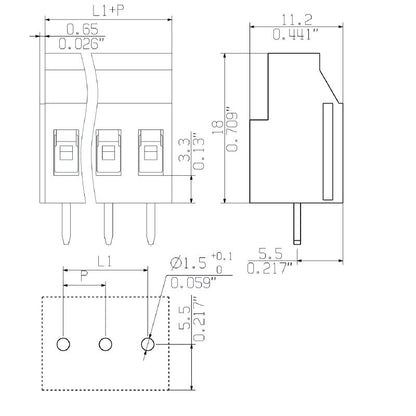

Introducing the TPS 508/18/90 50SN GN BX connector, engineered for secure connections using a clamping yoke method This connector features a Through-Hole Technology (THT) solder connection to your PCB, ensuring reliable performance With a compact 508 mm pitch, it incorporates 18 poles arranged in a single row, each with a solder pin measuring 5 mm in length for optimal stability Constructed from a durable copper alloy with tinned contact surfaces, this component is designed for safety and efficiency.

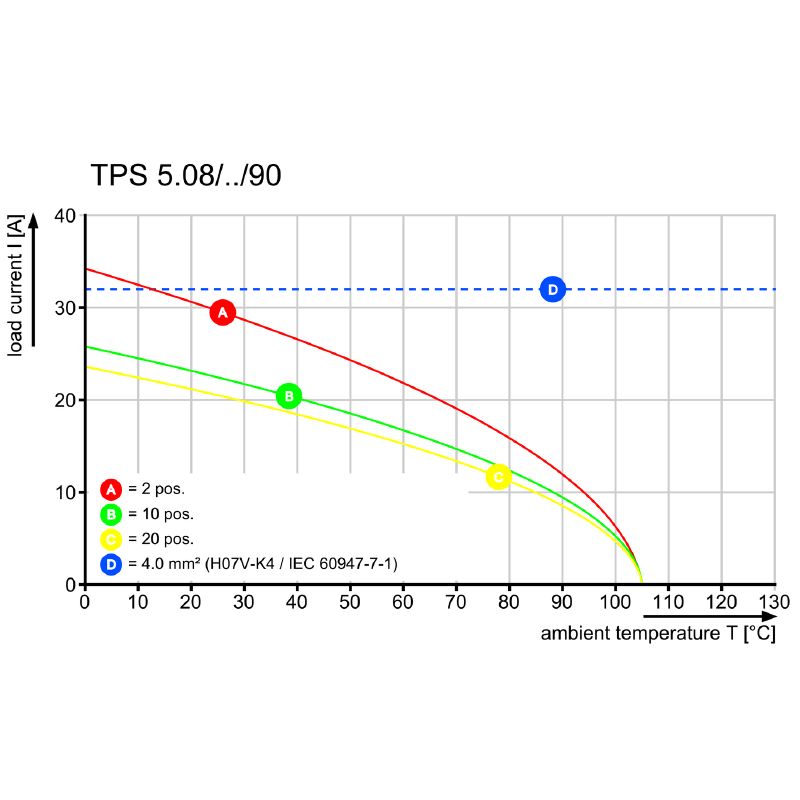

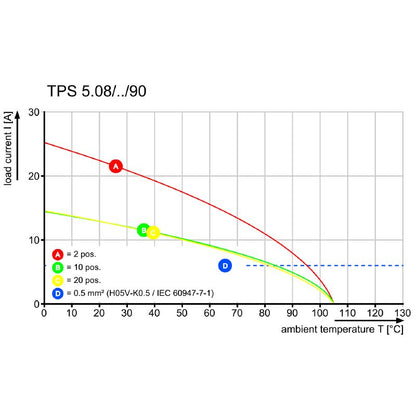

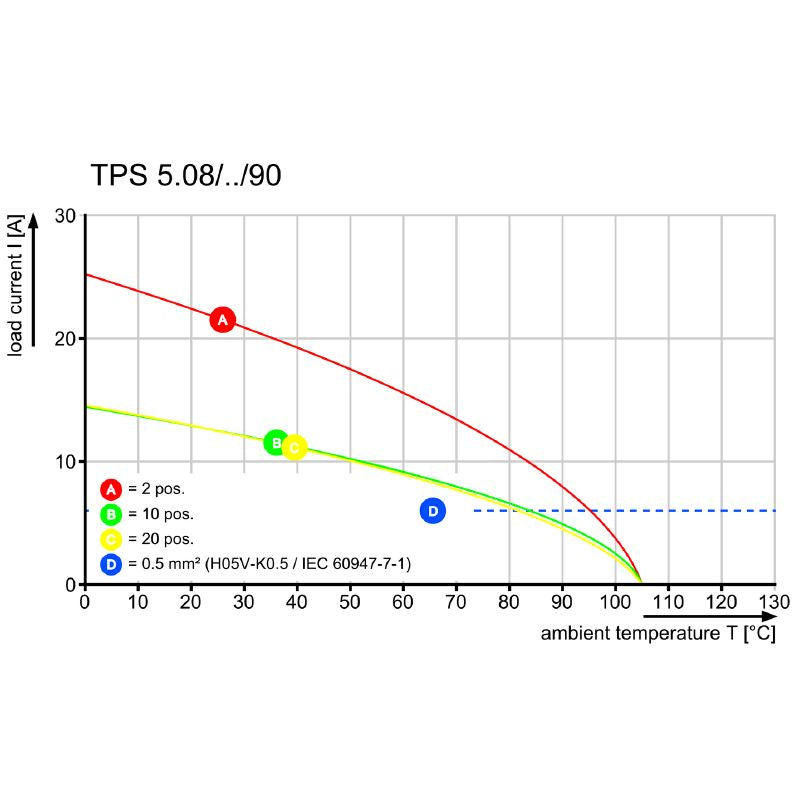

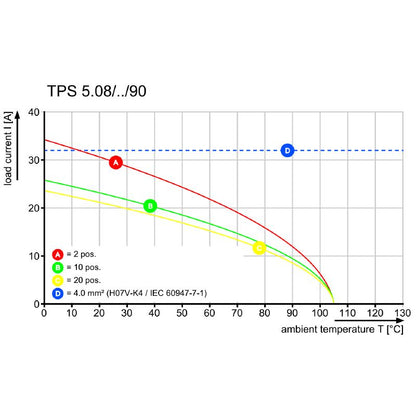

The insulating material is a pale green PA rated V-0 for flammability per UL 94 standards, ensuring it meets industry safety requirements This product is RoHS compliant and supports various electrical parameters, allowing a maximum current of 20 A at 320 V according to IEC standards, and 15 A at 300 V under UL regulations It accommodates wire sizes from 02 mm² to 4 mm² in clamping range, making it versatile for different applications.

Additionally, the connector is built to endure extreme conditions, with a storage temperature range from -40 °C to 105 °C for optimal performance in diverse environments.

Features and Benefits:

•Complies with RoHS and other environmental standards.

•Designed specifically for OMNIMATE basic products.

•Suitable for various wire connection types with flexible and solid conductors.

Specifications:
