Description:

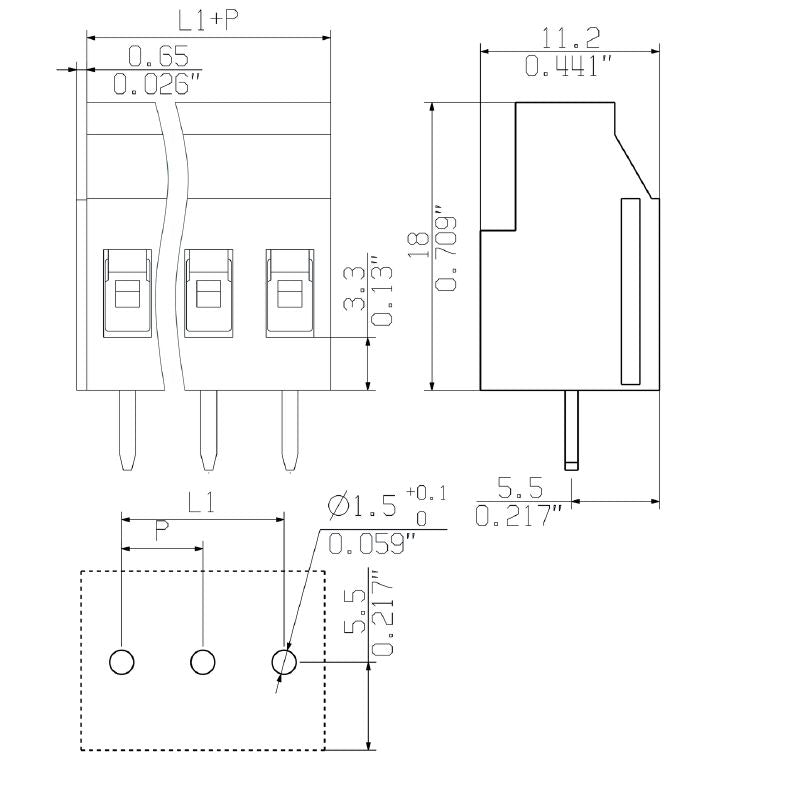

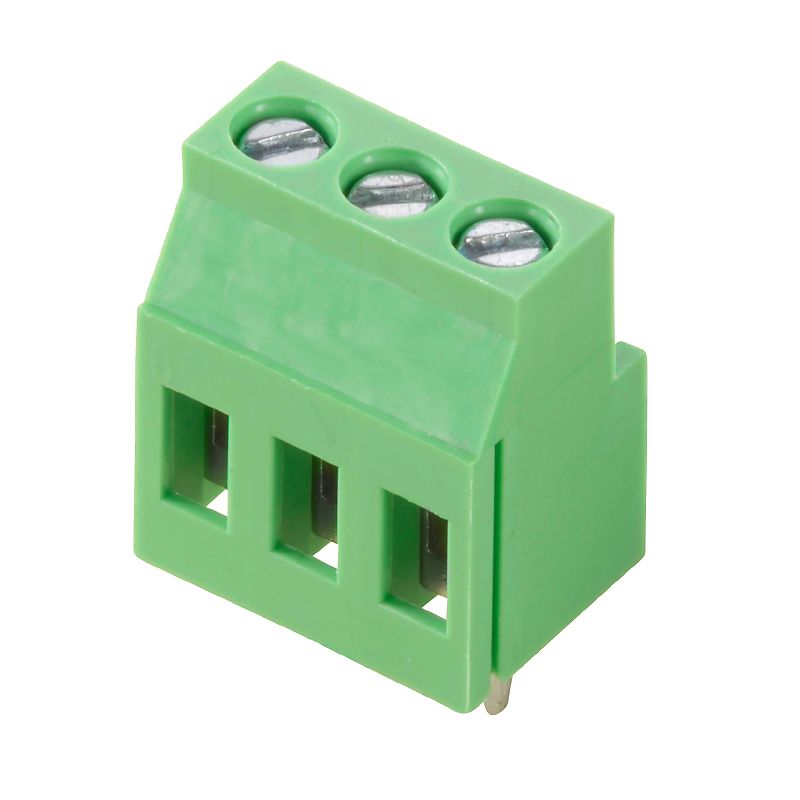

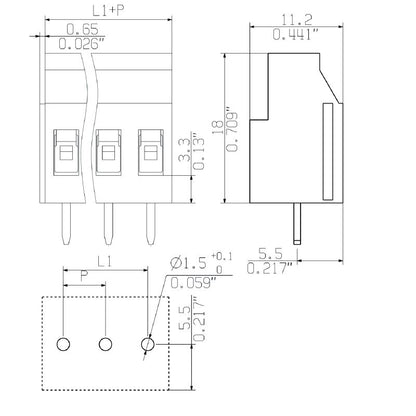

Introducing the TPS 508/20/90 connector, a versatile solution that meets multiple industry standards This connector utilizes a clamping yoke method for secure wire connections and is engineered for PCB mounting through a THT soldering process It features a convenient 90° outlet for conductors, a compact pitch of 508 mm, and is structured with 20 poles in a single row
The solder pin is 5 mm long, requiring a tightening torque in the range of 0.
5 Nm to 055 Nm for optimal performance You'll need an M3 clamping screw, and a stripping length of 85 mm is necessary for installation With an IP20 protection rating, this connector is crafted from durable PA insulating material and showcases a pale green hue, compliant with RAL 6021 standards.
Features and Benefits:
•Compliant with RoHS and meets exemption standards.
•Suitable for a variety of wire connection sizes and types.
•Compatible only with OMNIMATE basic products.
Specifications:
| Rated current (min. number of poles): | 20 A |
| Rated voltage (IEC): | 320 V / 20 A / 0.05 - 4 mm² |
| Rated voltage (UL): | 300 V / 15 A / AWG 30 - AWG 12 |
| Pitch in mm (P): | 5.08 mm |
| Number of poles: | 20 |
| Solder pin length (l): | 5 mm |
| Protection degree: | IP20 |
| Material: | Copper alloy |
| Insulating material: | PA |
| Storage temperature, min.: | -40 °C |

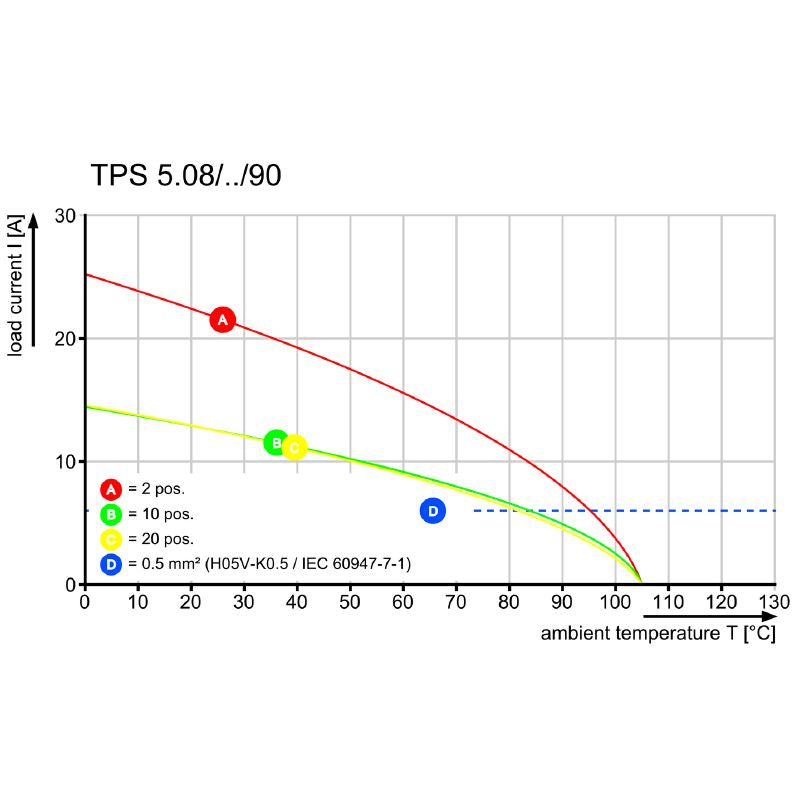

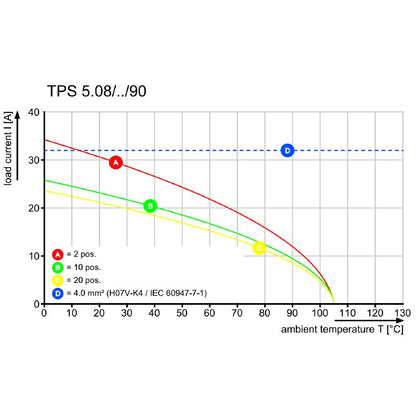

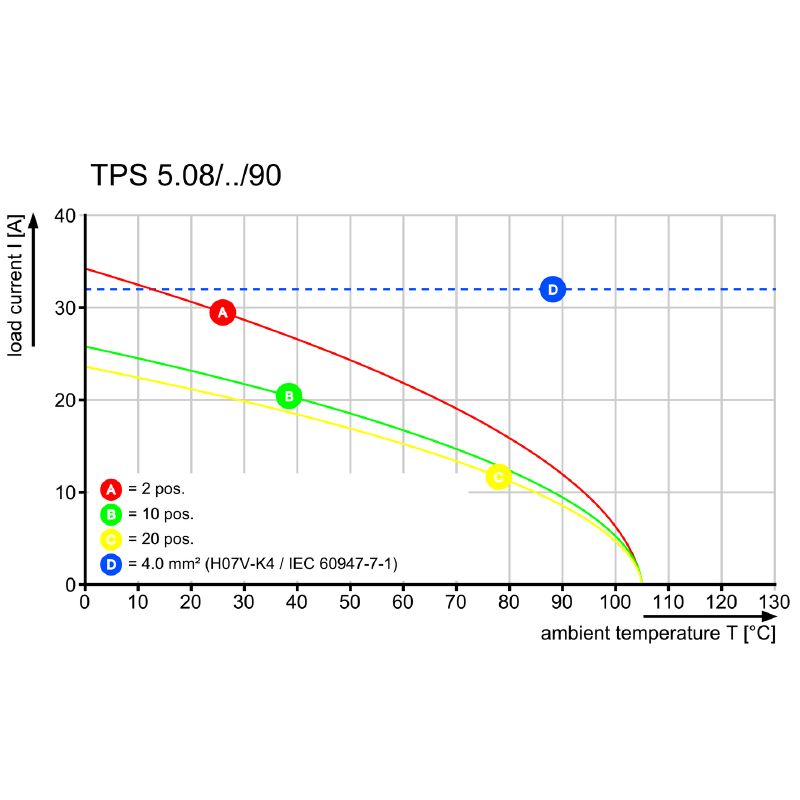

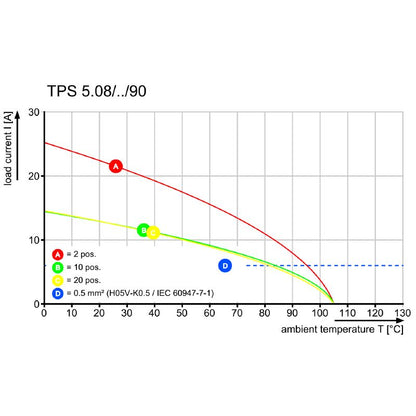

| Operating temperature, max.: | 105 °C |
