Description:

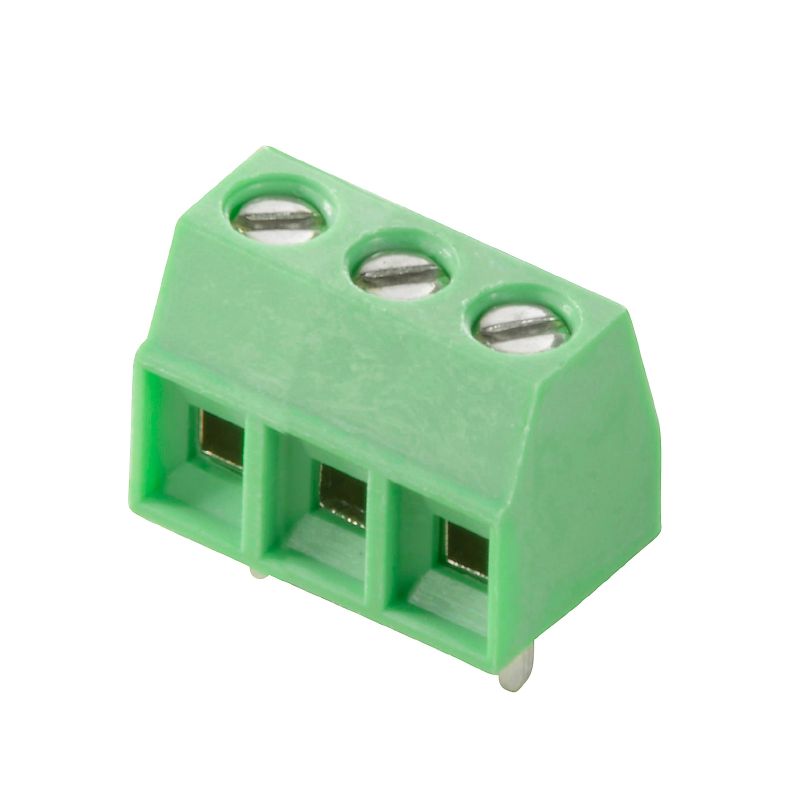

Introducing the TCS 381/03/90 35SN GN BX terminal block, a part of the OMNIMATE basic series, perfect for versatile electrical connections This terminal block accommodates wire sizes ranging from 02 to 15 mm² per IEC standards and AWG 26 to AWG 16 as per UL standards Its clamping yoke connection ensures a reliable and secure hold, while the THT solder connections allow easy PCB mounting Featuring a 90° outlet direction for conductors, this terminal block is rated for a current of 10 A and supports a maximum voltage of 320 V under IEC and 150 V under UL standards.
Additionally, it meets environmental compliance with RoHS and other relevant certifications for peace of mind.
Features and Benefits:
•Clamping yoke connection method.
•90° conductor outlet direction.
•Single-row terminal with three poles.
•IP20 protection degree.
•Compliant with RoHS standards.
Specifications:
| IEC Rated Voltage | 320 V |
| IEC Rated Current | 10 A |
| UL Rated Voltage | 150 V |
| Wire Connection Method | Clamping yoke connection |
| Number of Poles | 3 |
| Pin Series Quantity | 1 |
| Solder Pin Length | 3.5 mm |
| Pitch | 3.81 mm |
| Stripping Length | 5 mm |
| Rated Current | 10 A |
| Rated Impulse Voltage Class II/2 | 2.5 kV |
| Storage Temperature Min | -40 °C |
| Storage Temperature Max | 70 °C |
| Material Insulating | PA |
| Flammability Rating | V-0 |
