Description:

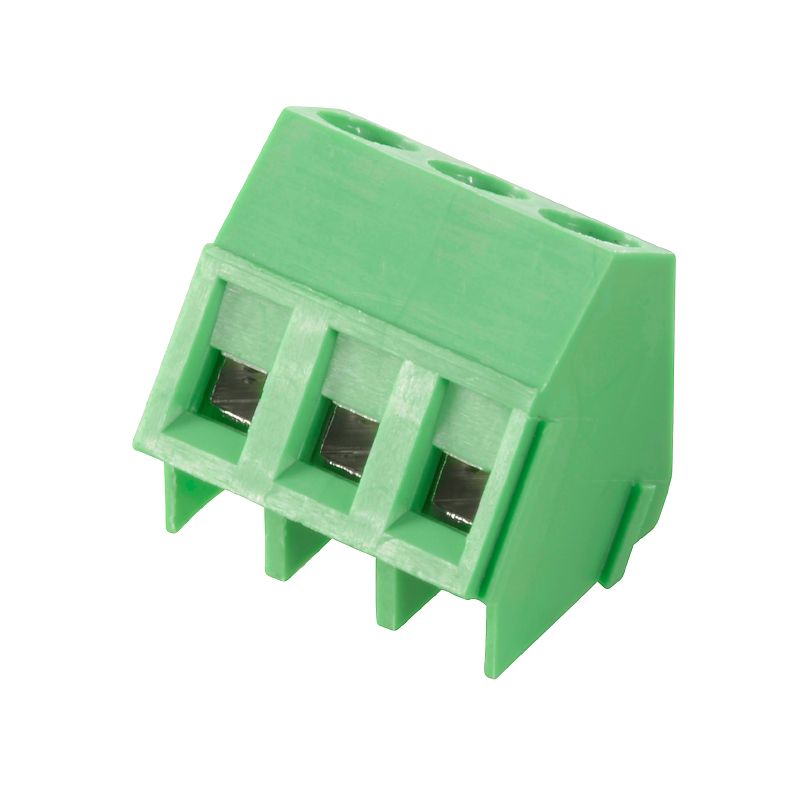

Experience reliable wire connections with the TSS 500/10/135 33SN GN BX terminal block Engineered for optimal performance, it features a 5 mm pitch and is rated for voltages up to 630 V, making it a versatile choice for various applications This product boasts a solder pin length of 33 mm and accommodates wire sizes from AWG 30 to AWG 12 Additionally, it meets RoHS standards and is packaged securely in a box for your convenience.
Features and Benefits:
•Compliant with RoHS and IP20 protection degree.
•Clamping yoke connection for secure wiring.
•Compact design with a 135° conductor outlet direction.
•Low profile height of 1.773 inches.
Specifications:
| Rated voltage (IEC) | 630 V |

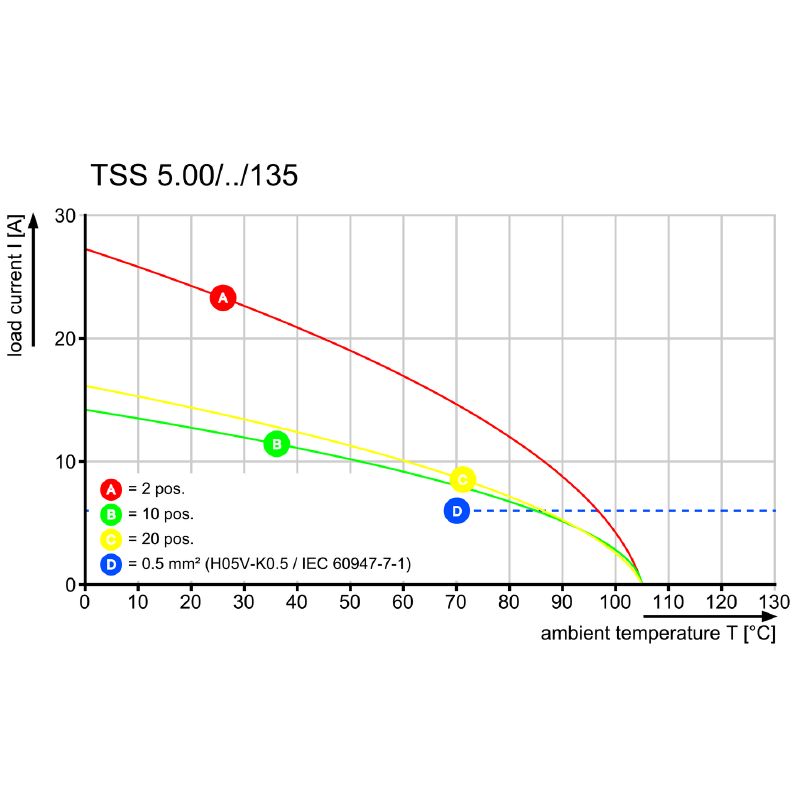

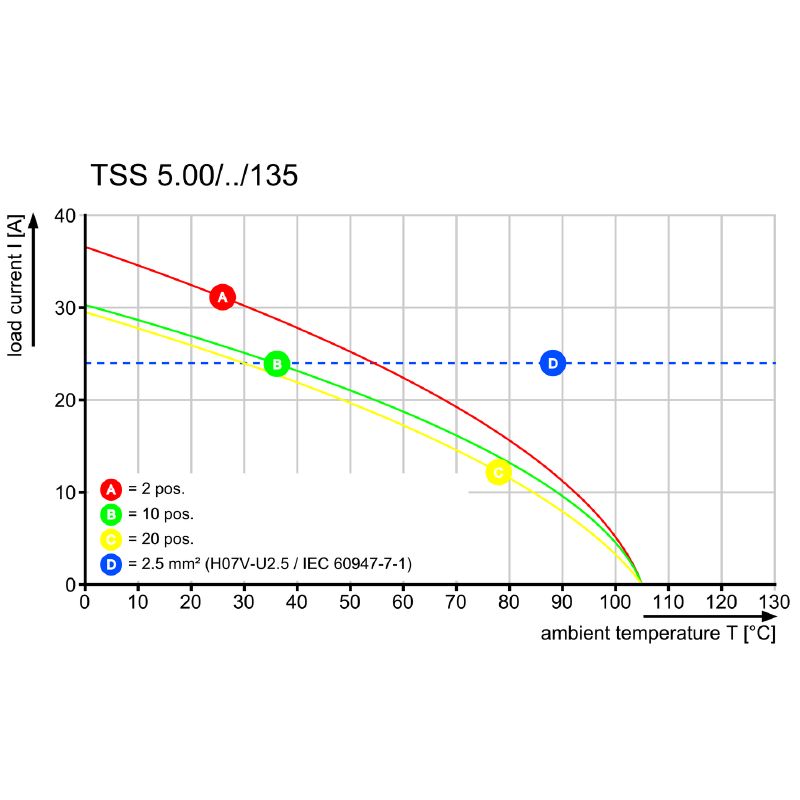

| Rated current | 20 A |
| Wire connection method | Clamping yoke connection |
| Number of poles | 10 |

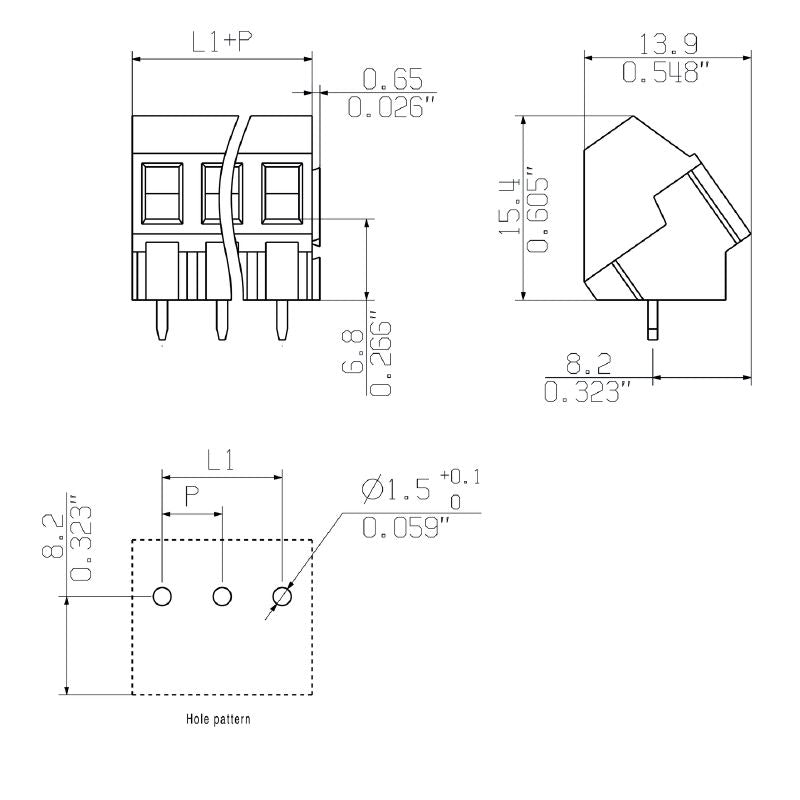

| Pitch | 5 mm |
| Solder pin length | 3.3 mm |
| Solder pin dimensions | 0.8 x 0.9 mm |
| Material | PA |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Operating temperature (max) | 105 °C |
