Description:

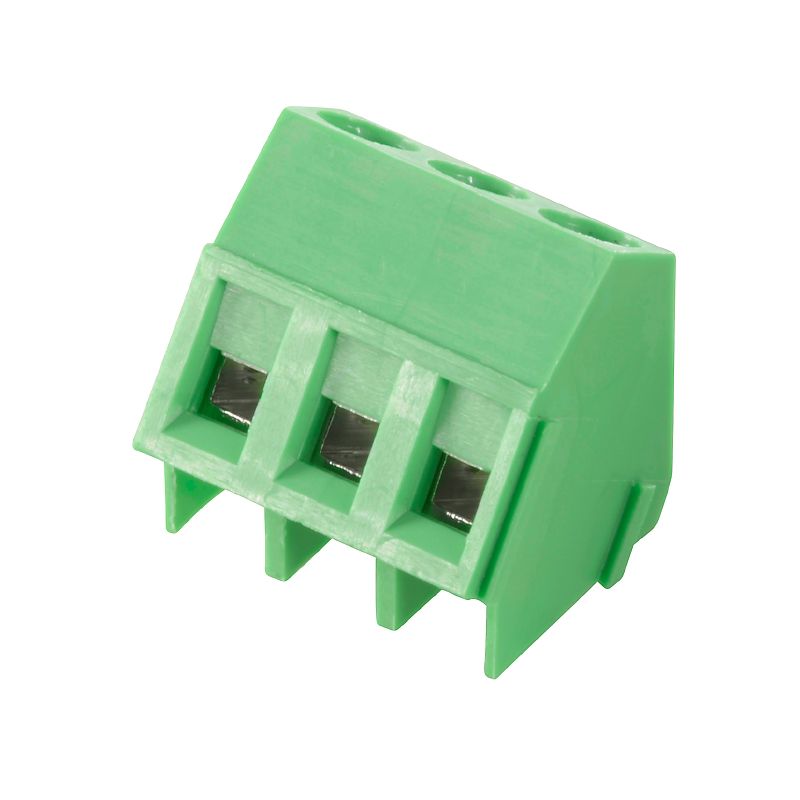

Introducing the TSS 500/20/135 33SN GN BX, your go-to solution for reliable electrical connections This product features a robust clamping yoke connection that guarantees a safe and stable integration of wires Adhering to IEC standards, it supports a voltage capacity of up to 630 V and can handle currents of 20 A It is compatible with wire sizes ranging from 02 to 25 mm², and with a lightweight design of just 48 grams, it's both practical and efficient.
Furthermore, its compliance with RoHS regulations highlights its commitment to environmental safety.
Features and Benefits:
•Approvals include RoHS and UL certification.
•IP20 protection rating for additional safety.
•135° conductor outlet direction for optimal cable routing.
•THT solder connection for ease of installation.
Specifications:
| Rated current | 20 A |
| Rated voltage (IEC) | 630 V |
| Number of poles | 20 |
| Pitch | 5 mm |
| Solder pin length | 3.3 mm |
| Insulating material | PA |
| Storage temperature | -40 °C to 70 °C |
| Operating temperature | Max 105 °C |
| Clamping range | 0.2 mm² to 2.5 mm² |
| Wire connection cross section (AWG) | AWG 30 to AWG 12 |
