Description:

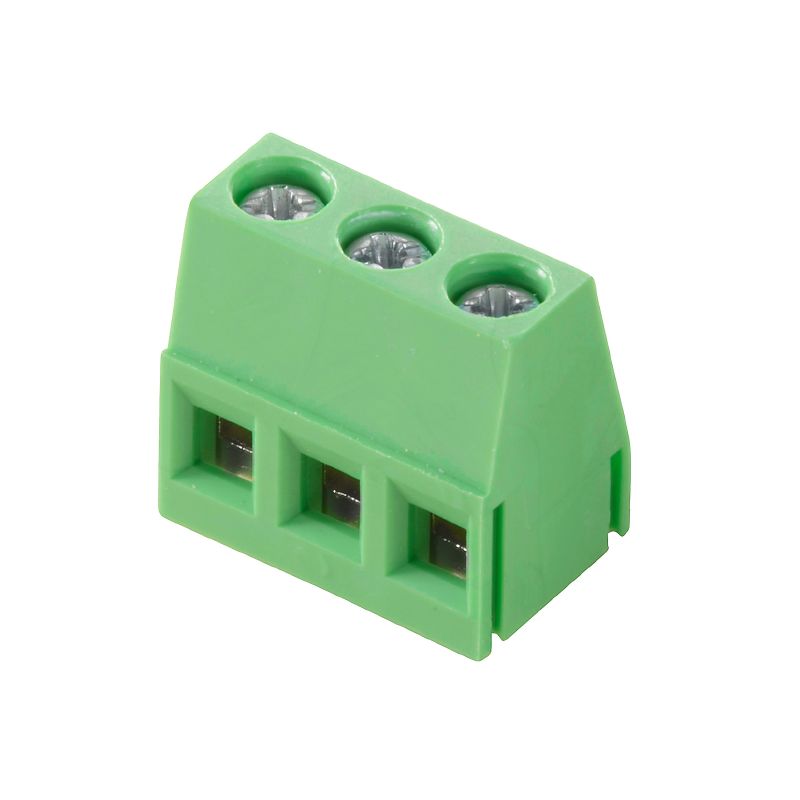

Enhance your electrical connections with the TMS 508/08/90 30SN GN BX, crafted to meet rigorous UL and RoHS standards This component utilizes a clamping yoke method for reliable mounting on printed circuit boards through THT solder connections Constructed from a pale green PA insulating material, it effectively accommodates conductor sizes from 02 to 25 mm² With a current rating of 15 A and a voltage capacity of 320 V, this product is a robust solution for your connectivity needs.
Features and Benefits:
•Compliant with RoHS exemption.
•Clamping screw size of M 3.
•Operating temperature range up to 105 °C.
•IP20 protection degree.
•Applications only compatible with OMNIMATE basic products.
Specifications:
| Net weight | 8.24 g |
| Product family | OMNIMATE basic – Series TMS |
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |
| Conductor outlet direction | 90° |

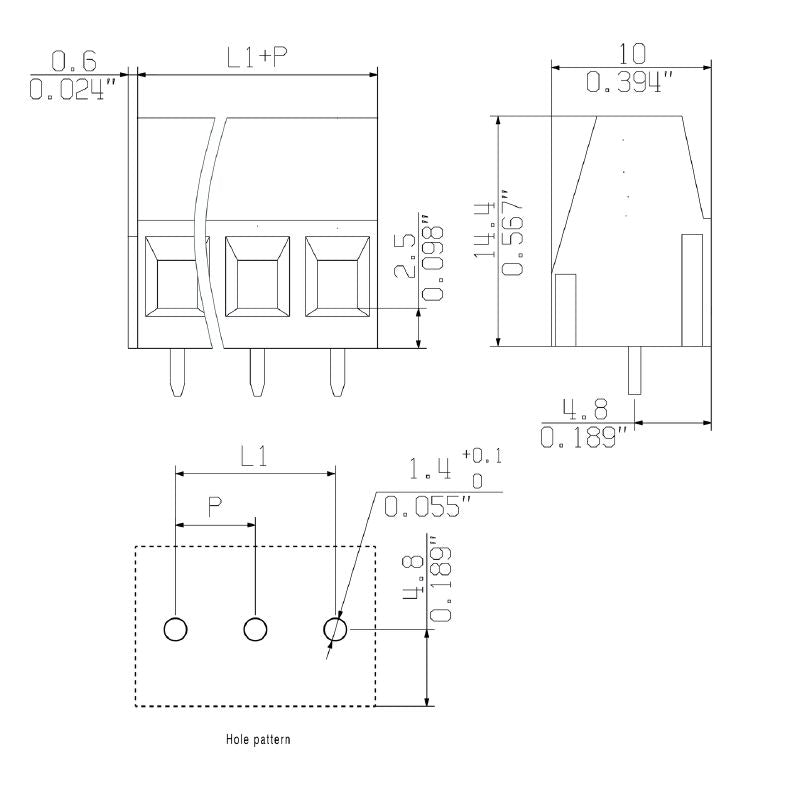

| Pitch in mm (P) | 5.08 mm |
| Number of poles | 8 |

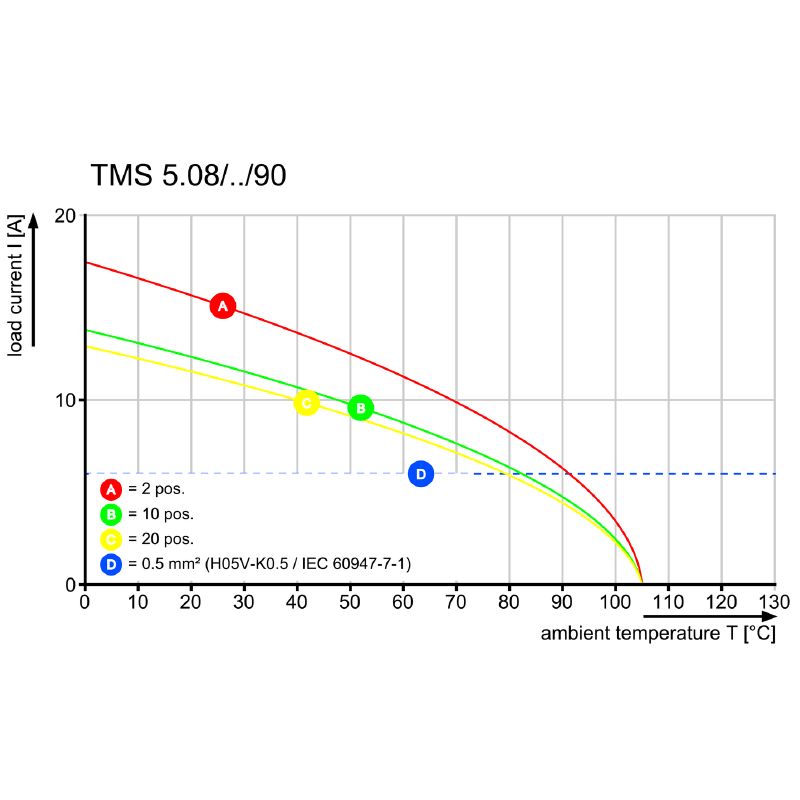

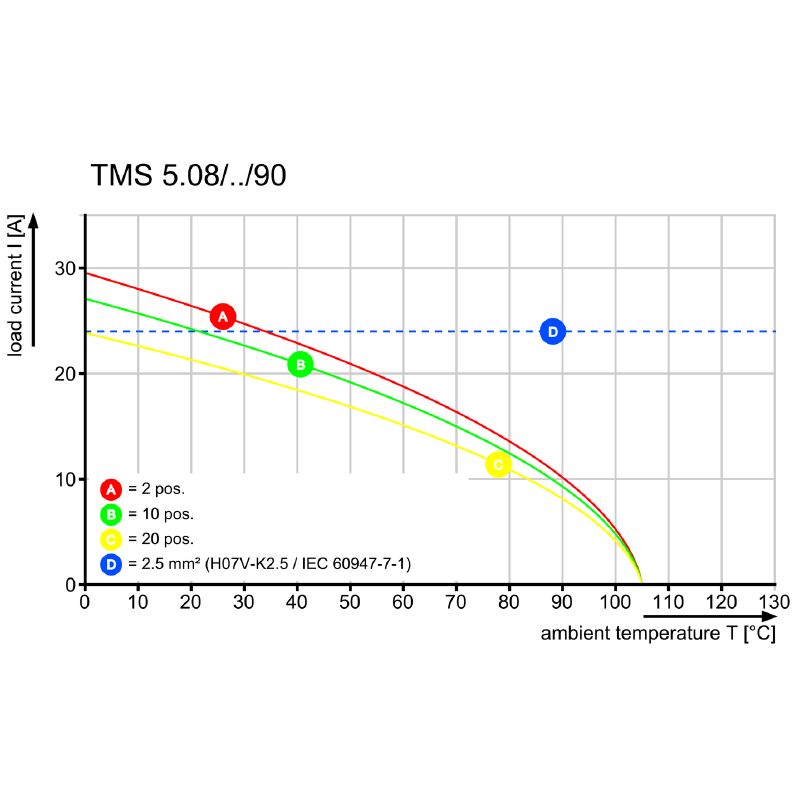

| Rated current (Use group B / UL 1059) | 15 A |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Insulating material | PA |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
