Description:

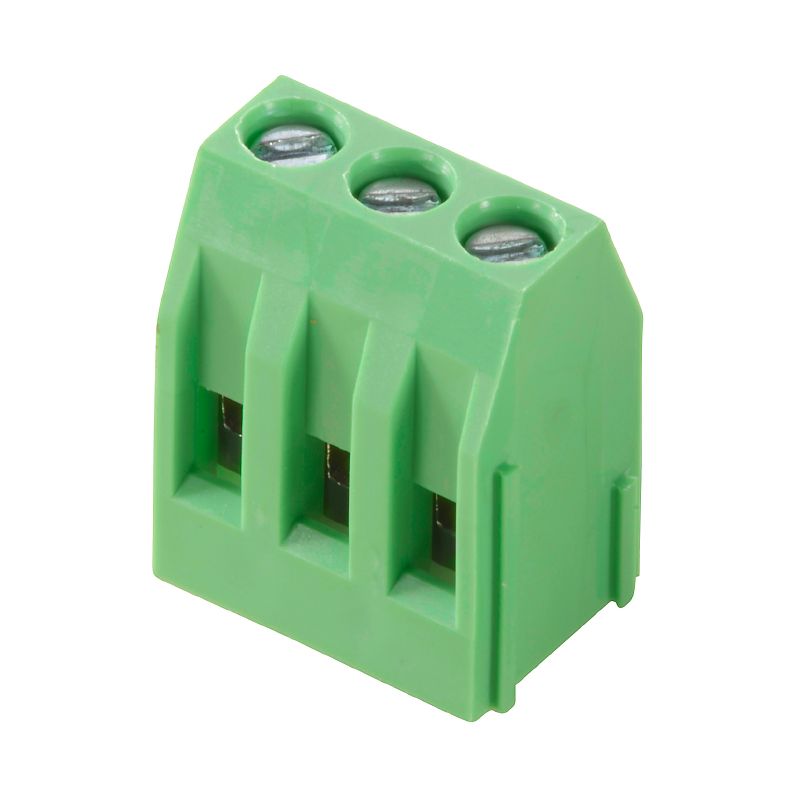

Introducing the TPS 500/14/90 35SN GN BX, a versatile component from the OMNIMATE basic series This reliable connector accommodates a range of wire sizes and is engineered for optimal performance in various electrical applications It complies with RoHS standards and is designed for compatibility with conductors varying from 02 mm² to 4 mm², making it suitable for both solid and flexible wire connections.
Experience dependable wiring solutions with this essential component.
Features and Benefits:
•Clamping yoke connection for secure wiring.
•Suitable for use with a variety of wire sizes.
•Compact 90° conductor outlet direction.
•IP20 protection degree ensuring safe usage.
•Compatible with OMNIMATE basic products.
Specifications:

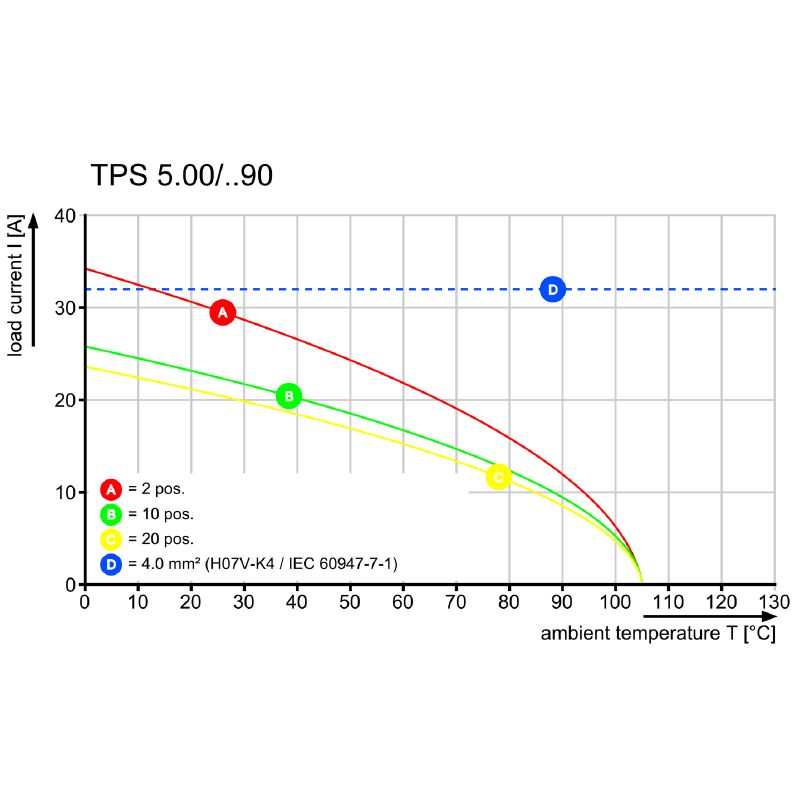

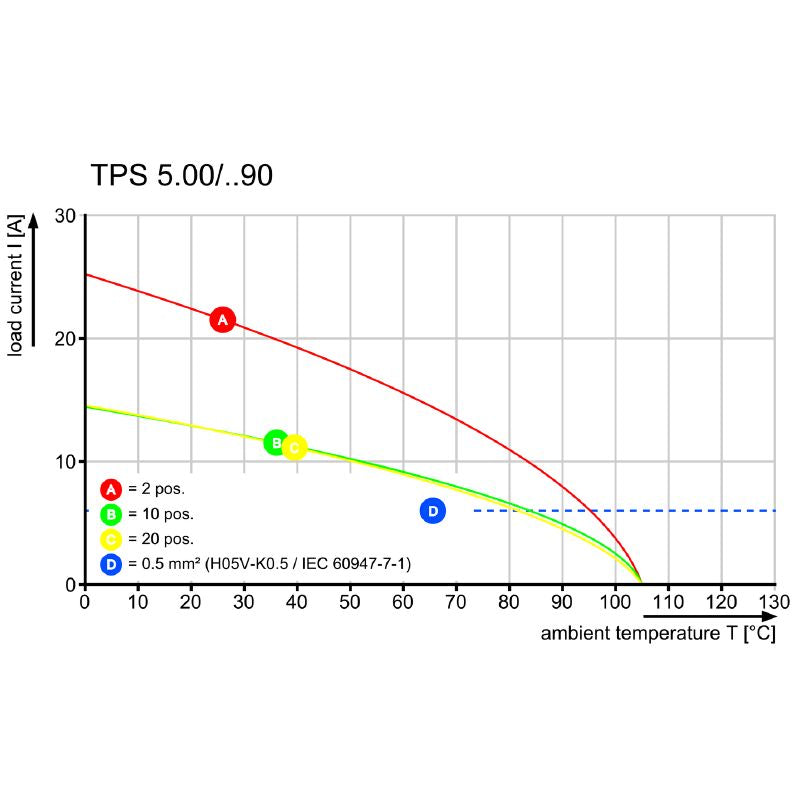

| Rated current | 15 A |
| Rated voltage (IEC) | 320 V |
| Number of poles | 14 |
| Pin series quantity | 1 |

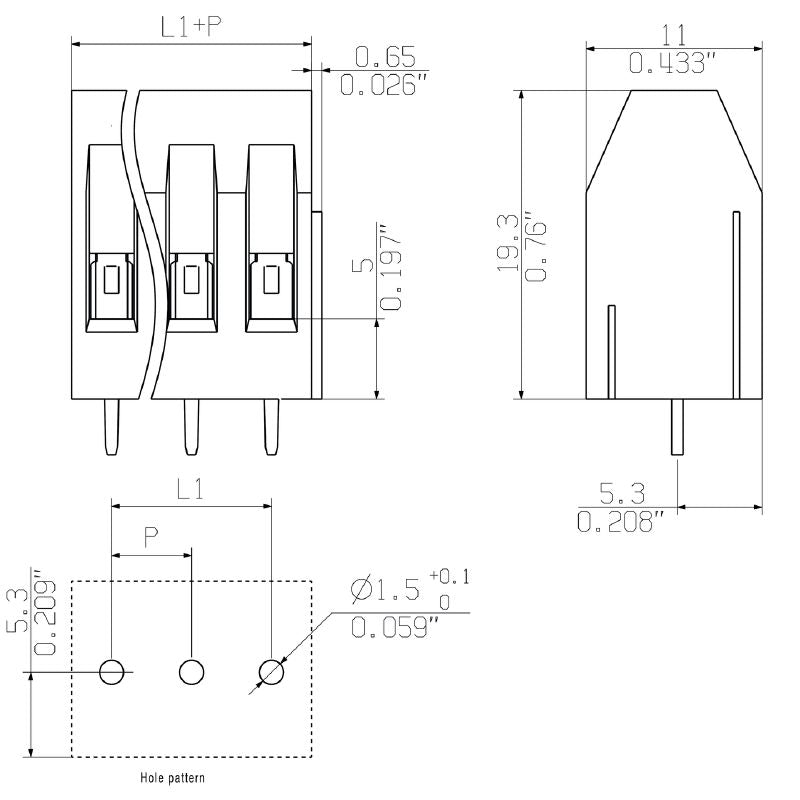

| Dimension (L1) | 65 mm |
| Solder pin length | 3.5 mm |
| Screwdriver blade dimensions | 0.6 x 3.5 |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.55 Nm |
| Insulating material | PA |
| Color | Pale green |
| UL voltage rating | 300 V |
| Operating temperature (max) | 105 °C |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Wire connection cross section AWG (min) | AWG 30 |
| Wire connection cross section AWG (max) | AWG 12 |
