2651000000 - 7-Pole RoHS/UL Certified Clamping Connector, 15A, 90° Outlet (Pack of 120)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TMS 500/07/90 30SN GN BX, a reliable component engineered for performance and safety with essential certifications such as RoHS compliance and UL certification (E60693) This versatile product is capable of handling IEC inputs of up to 320 V and 15 A, accommodating wire sizes from 02 to 25 mm² Weighing in at just 721 grams, it comes securely packaged in a box for easy storage or transport.

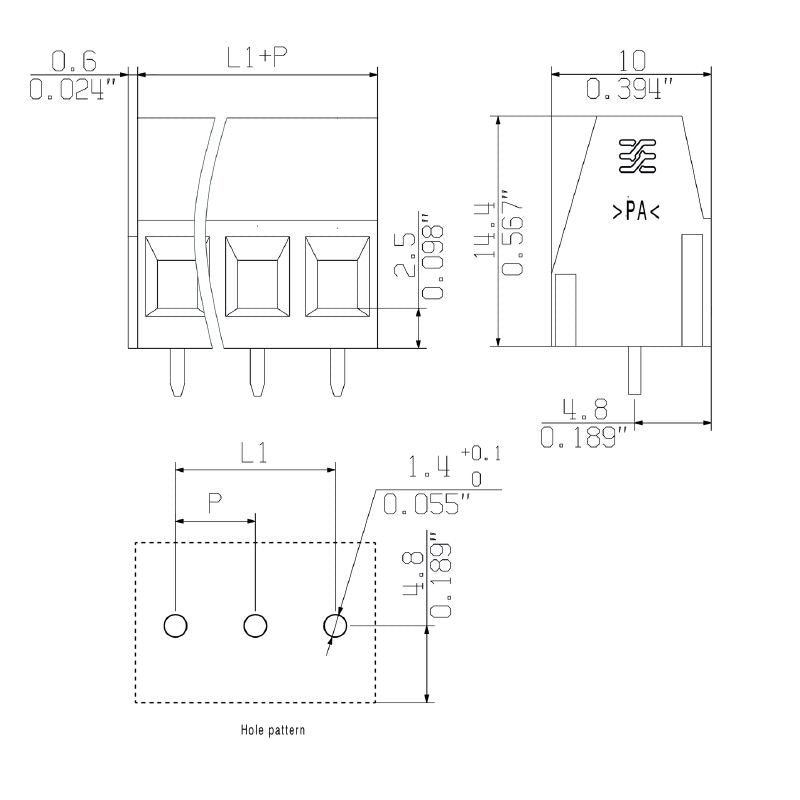

Designed for ease of use, it employs a clamping yoke connection method and mounts directly onto printed circuit boards (PCBs) via THT soldering Featuring seven poles, it has a compact 5 mm pitch and a 90-degree outlet for efficient space management The product is also built to thrive in diverse environments, with an operational temperature range of -40 °C to 105 °C, catering to various industrial applications.

Trust in the TMS 500/07/90 for your connectivity needs, backed by comprehensive specifications for clamping ranges and AWG cross-sections.

Features and Benefits:

•RoHS compliant.

•UL certified.

•Clamping yoke connection method.

•90-degree conductor outlet direction.

•7 poles configuration.

•Support for a wide clamping range from 0.2 mm² to 2.5 mm².

Specifications:
