2652020000 - 14-Pole Terminal Block with Clamping Yoke, IP20 Rating (Pack of 48)

Description:

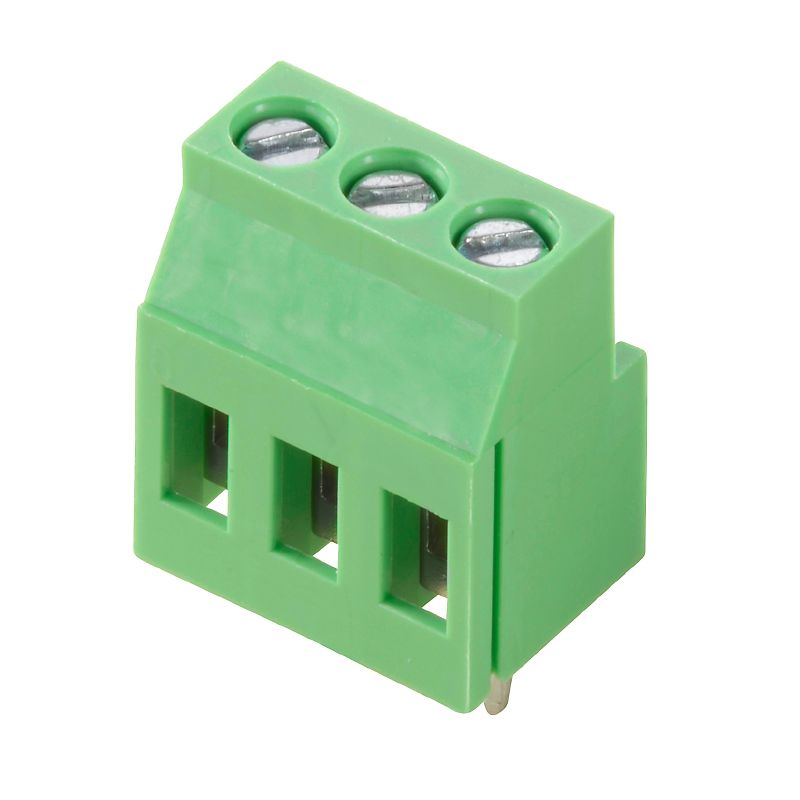

Introducing the TPS 508/14/90 50SN GN BX terminal block, engineered for reliable wire connections with a sturdy clamping yoke design This component accommodates a wide range of conductor sizes, suitable for wire cross-sections from 005 mm² to 4 mm² It meets RoHS standards and holds a safety certification under UL File Number E60693, ensuring superior safety compliance With a protection degree rating of IP20, it can function efficiently in temperatures ranging from -40 °C to 105 °C.

Specifically designed for use with OMNIMATE basic products, this terminal block is crafted from a light green insulating material, supports a maximum current of 20 A at 320 V, and offers 14 poles with a 90° conductor outlet configuration.

Features and Benefits:

•Compliant with RoHS.

•Insulating material rating of V-0.

•Clamping yoke connection method.

•THT solder connection for PCB mounting.

•Conductors suitable for both solid and flexible wires.

•Available in pale green color, RAL 6021.

•Used in conjunction with OMNIMATE basic products.
