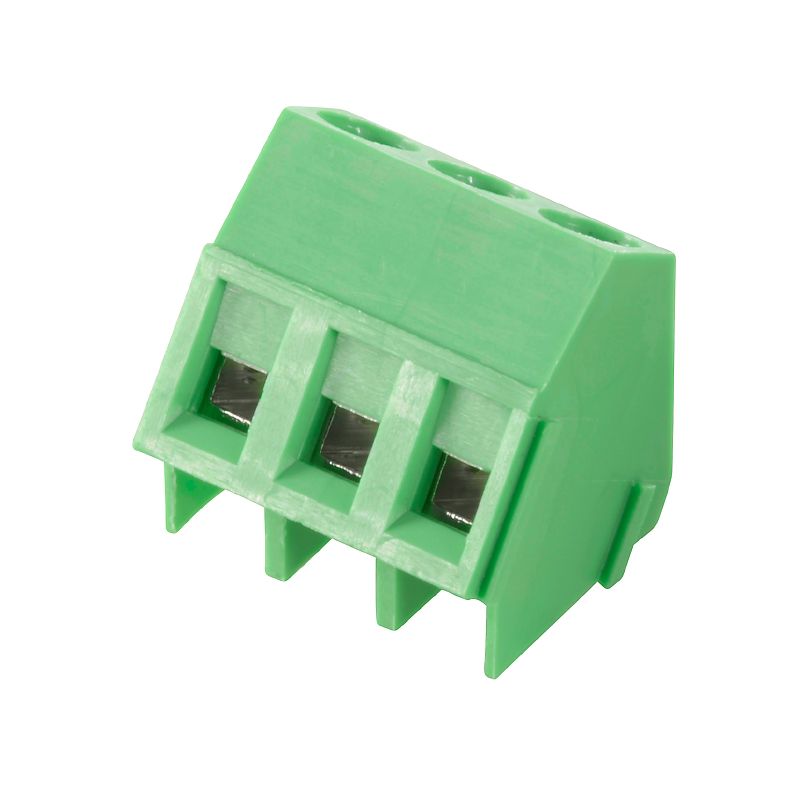

2651160000 - 20A Terminal Block, 135° Outlet, PCB Mount, RoHS Compliant (Pack of 162)
2651160000 - 20A Terminal Block, 135° Outlet, PCB Mount, RoHS Compliant (Pack of 162)
SKU: SKU: 2651160000 Download PDF
- 2651160000 - 20A Terminal Block, 135° Outlet, PCB Mount, RoHS Compliant (Pack of 162)
- 2651160000 - 20A Terminal Block, 135° Outlet, PCB Mount, RoHS Compliant (Pack of 162)
Couldn't load pickup availability
Description:
Introducing the TSS 500/04/135 33SN GN BX terminal block, a reliable solution for your electrical connections This terminal block operates efficiently at a voltage of 630 V and supports a current of up to 20 A, making it ideal for a variety of applications It accommodates wire sizes from 02 to 25 mm² and is crafted in compliance with RoHS standards Weighing just 96 grams and packaged conveniently in a box, this terminal block features a clamping yoke connection method for secure wiring.
Additionally, it is designed for PCB mounting using THT solder connections, with a unique conductor outlet direction angled at 135°, ensuring flexibility in your setups.
Features and Benefits:
•Suitable for clamping ranges between 0.2 mm² and 2.5 mm².
•Compliant with RoHS regulations.
•IP20 protection degree.
•Insulating material made of PA.
•UL certified with file number E60693.
Specifications:
| Rated current, min. number of poles (Tu=20°C) | 20 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 630 V |
| Number of poles | 4 |

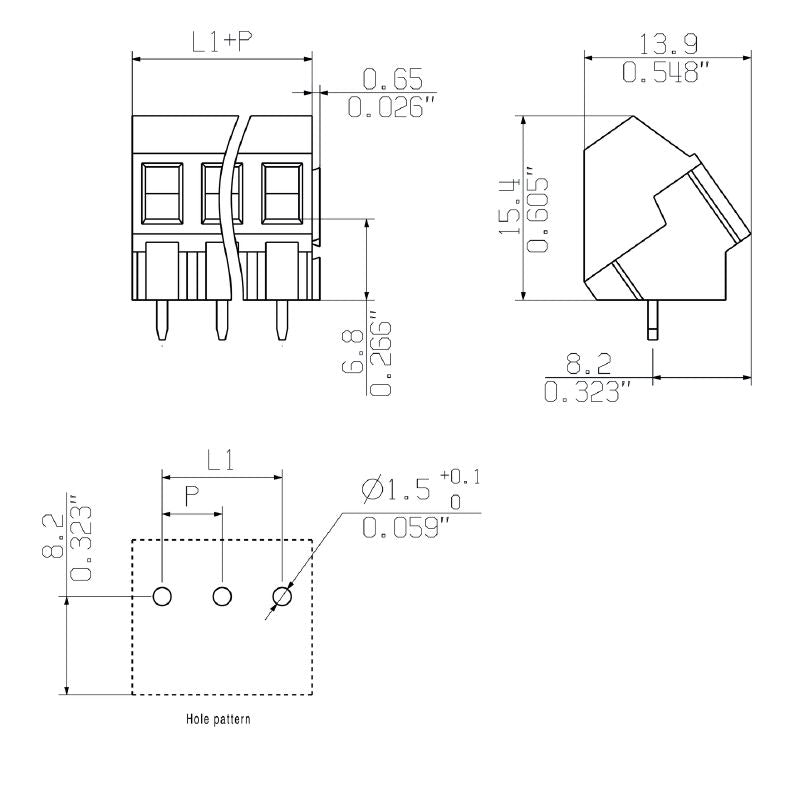

| Solder pin length (l) | 3.3 mm |
| Conductor outlet direction | 135° |
| Pitch in mm (P) | 5 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Clamping screw | M 3 |
| Stripping length | 7.5 mm |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, max. | 105 °C |
| Material | Cu-alloy |
| Contact surface | tinned |
