Description:

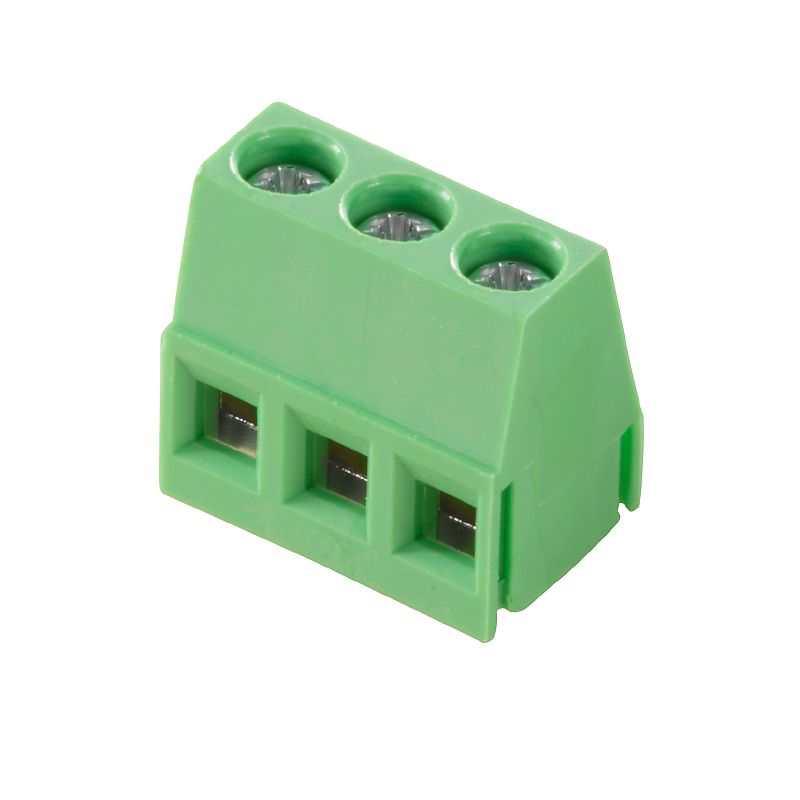

Introducing the TMS 500/11/90 30SN GN BX terminal, a reliable component designed with RoHS compliance and UL certification, easily verifiable via the UL File Number Search This terminal accommodates wire gauges ranging from AWG 30 to AWG 12, featuring a clamping range of 02 to 25 mm² for versatile applications Its innovative clamping yoke connection allows for a convenient 90° conductor outlet, with a compact 5 mm pitch.
Mounting is straightforward with THT solder connections for seamless integration onto PCBs Each box contains 80 terminals, making this an efficient choice for your electrical projects.
Features and Benefits:
•Compliant with RoHS.
•UL certified.
•Clamping yoke connection method.
•90° conductor outlet direction.
•Compatible with OMNIMATE basic products.
•Packaged in boxes of 80 items.
Specifications:
| Rated voltage (IEC) | 320 V |
| Rated current (IEC) | 15 A |
| Clamping screw | M 3 |
| Stripping length | 6 mm |
| Protection degree | IP20 |
| Insulating material | PA |
| UL 94 flammability rating | V-0 |
| Number of poles | 11 |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section AWG, max. | AWG 12 |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, max. | 105 °C |

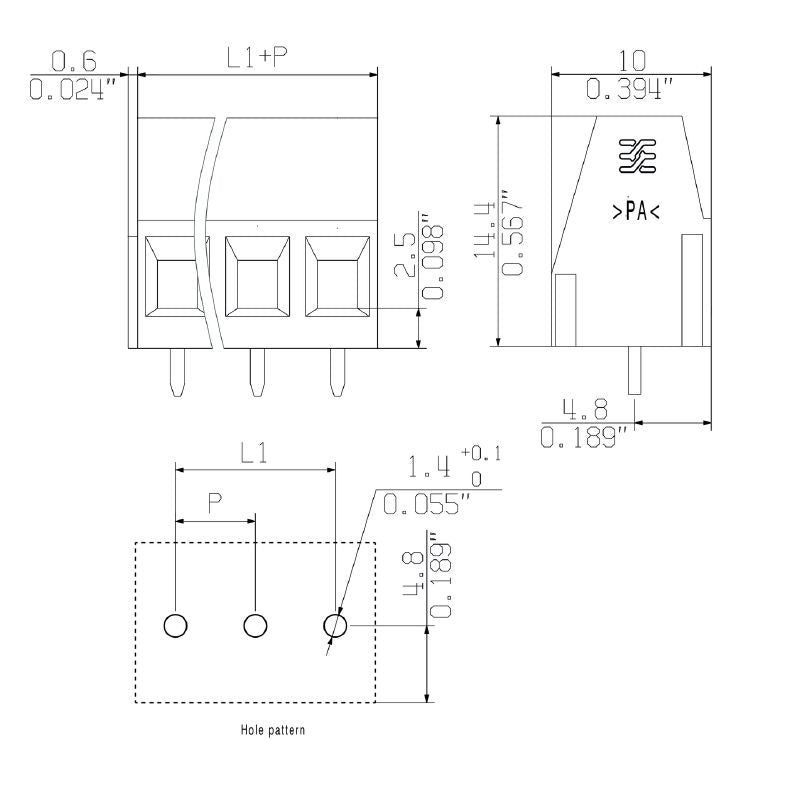

| Solder pin length (l) | 3 mm |
| Pitch in mm (P) | 5 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Net weight | 11.33 g |
