2650510000 - IEC Compliant 10A Electrical Connector for Various Wire Sizes (Pack of 192)
2650510000 - IEC Compliant 10A Electrical Connector for Various Wire Sizes (Pack of 192)
SKU: SKU: 2650510000 Download PDF
- 2650510000 - IEC Compliant 10A Electrical Connector for Various Wire Sizes (Pack of 192)
- 2650510000 - IEC Compliant 10A Electrical Connector for Various Wire Sizes (Pack of 192)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

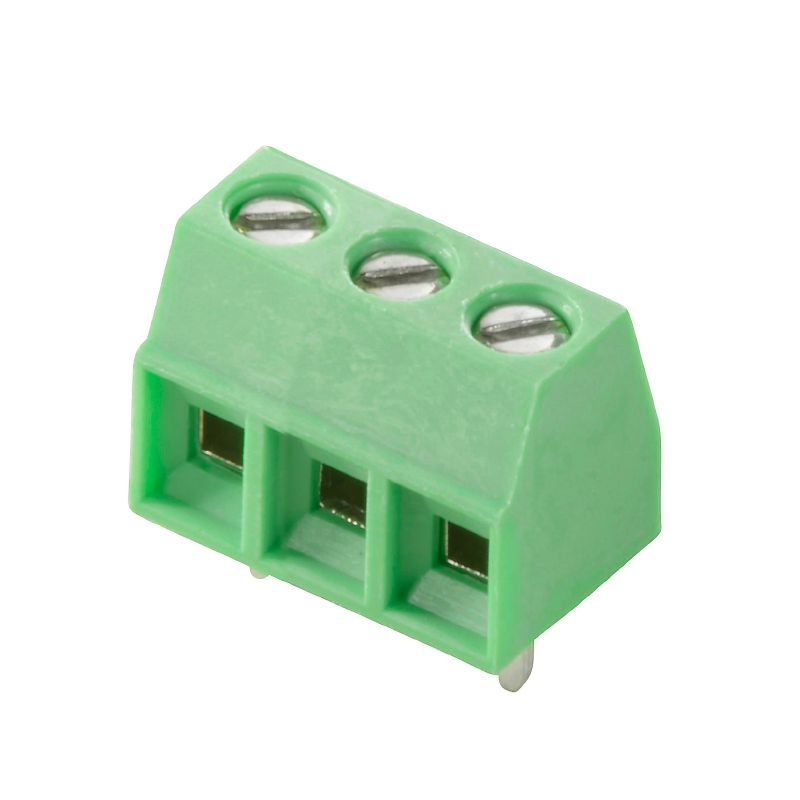

Introducing the TCS 381/10/90 35SN GN BX, an essential component for various electrical connections This product adheres to IEC standards, supporting a rated voltage of 320 V and accommodating a maximum current of 10 A It is compatible with wire sizes from 02 to 15 mm², while also achieving UL certification for up to 150 V and 10 A for wire gauges ranging from AWG 26 to AWG 16 The unit is neatly packaged in a box and has a lightweight construction at just 4.
6 grams Plus, it complies with RoHS regulations, with specific exemptions listed.
Features and Benefits:
•Clamping yoke connection for secure wire attachment.
•THT solder connection for reliable PCB mounting.
•90° conductor outlet direction facilitates space-saving installation.
•Constructed of durable insulating material (PA) with a V-0 flammability rating.
•Designed for flexibility with various conductor sizes.
Specifications:
| IEC Rated Voltage | 320 V |
| IEC Rated Current | 10 A |
| Clamping Range (min) | 0.2 mm² |
| Clamping Range (max) | 1.5 mm² |
| Solder Pin Length | 3.5 mm |
| Number of Poles | 10 |
| Torque Range | 0.2 to 0.23 Nm |
| Protection Degree | IP20 |
| Storage Temperature (min) | -40 °C |
| Storage Temperature (max) | 70 °C |
| Operating Temperature (max) | 105 °C |
