2651480000 - 5.08mm 17-Pole PCB Connector with Clamping Yoke (Pack of 48)
2651480000 - 5.08mm 17-Pole PCB Connector with Clamping Yoke (Pack of 48)
SKU: SKU: 2651480000 Download PDF
- 2651480000 - 5.08mm 17-Pole PCB Connector with Clamping Yoke (Pack of 48)
- 2651480000 - 5.08mm 17-Pole PCB Connector with Clamping Yoke (Pack of 48)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

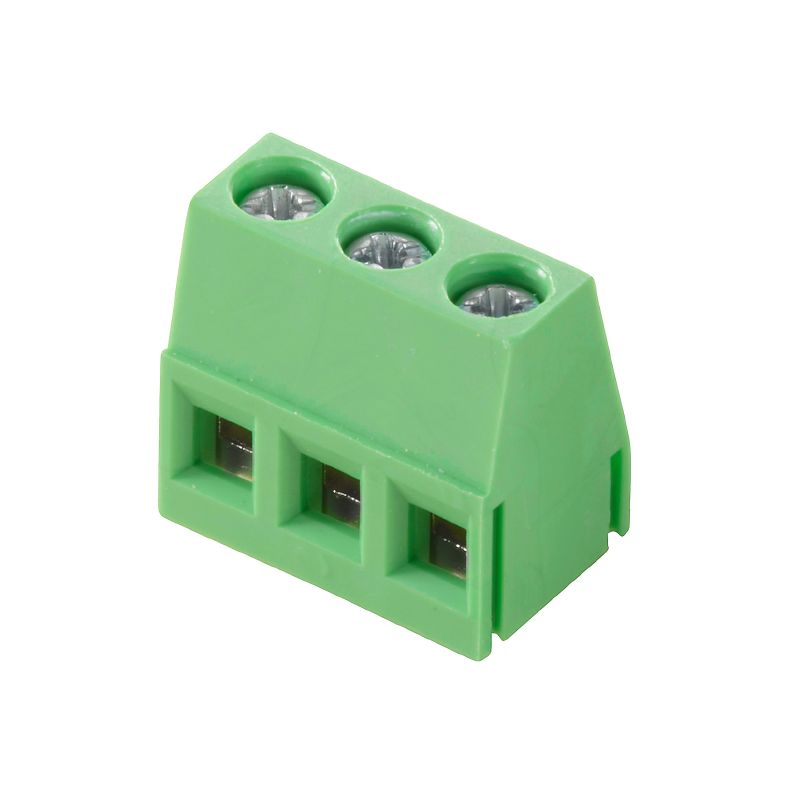

Introducing the TMS 508/17/90 30SN GN BX, a product that adheres to both RoHS and UL standards This item is identified by the order number 2651480000 and features a GTIN of 4050118635492 Packaged conveniently in sets of 48, this component is engineered with a clamping yoke connection method and employs THT solder connections for easy mounting onto printed circuit boards (PCBs) It offers a 90° conductor outlet direction with a 5.
08 mm pitch and accommodates 17 poles With a lightweight design, this product has a total weight of 1751 grams, making it an efficient choice for your needs.
Features and Benefits:
•Compliant with RoHS and UL standards.
•Uses THT solder connection for mounting.
•Clamping yoke method for wire connection.
•90° conductor outlet direction.
Specifications:
| Rated Current | 15 A |
| Rated Voltage | 320 V |
| Pitch | 5.08 mm |
| Number of Poles | 17 |
| Protection Degree | IP20 |
| Insulating Material | PA |
| UL 94 Flammability Rating | V-0 |
| Storage Temperature (Min) | -40 °C |
| Storage Temperature (Max) | 70 °C |
| Operating Temperature (Max) | 105 °C |
| Clamping Range (Min) | 0.2 mm² |
| Clamping Range (Max) | 2.5 mm² |
